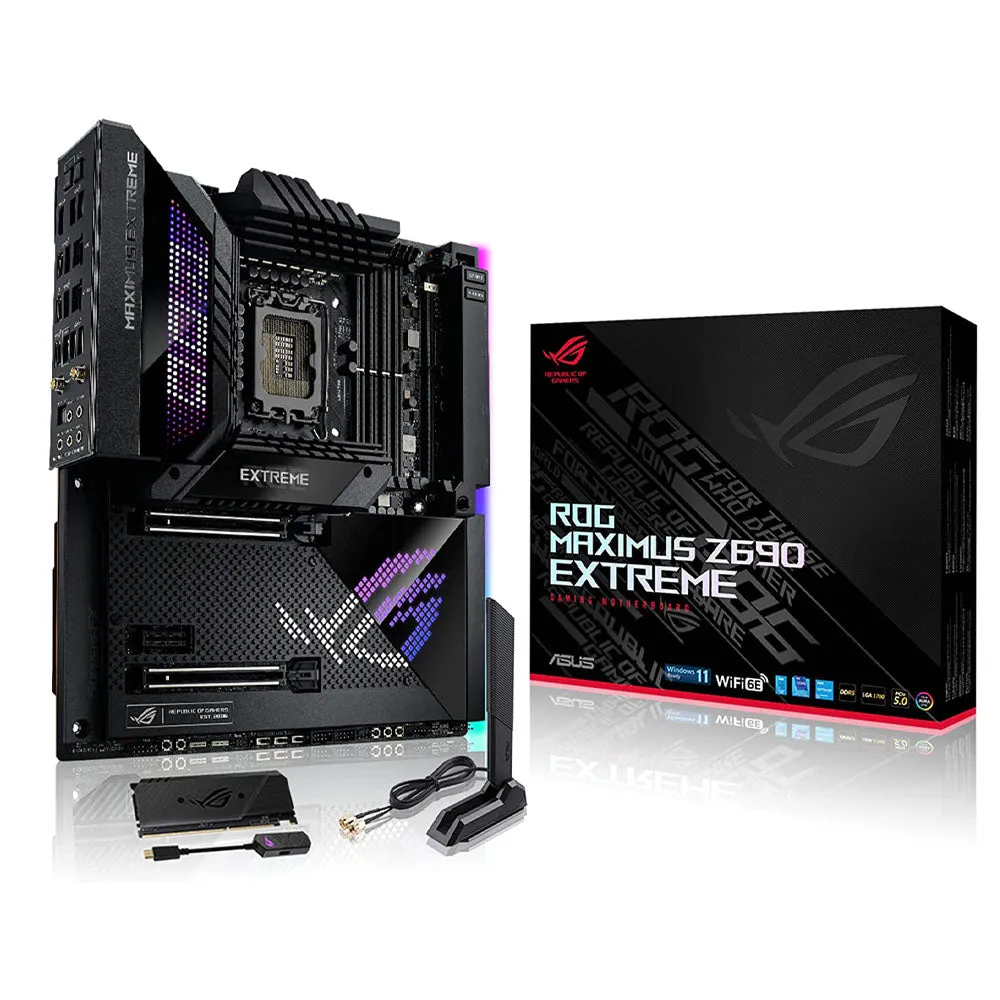

- ASUS ROG MAXIMUS Z690 Extreme motherboard for gaming is designed to support latest Intel Socket LGA 1700 for 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The ASUS Z690 motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 6400 MHz (OC) of memory and Intel Turbo Boost Technology. The DDR5 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 5.0, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, Thunderbolt 4, USB 3.2 Gen 2x2 front-panel connector, Five M.2 slots and rear triple USB Type-C ports.

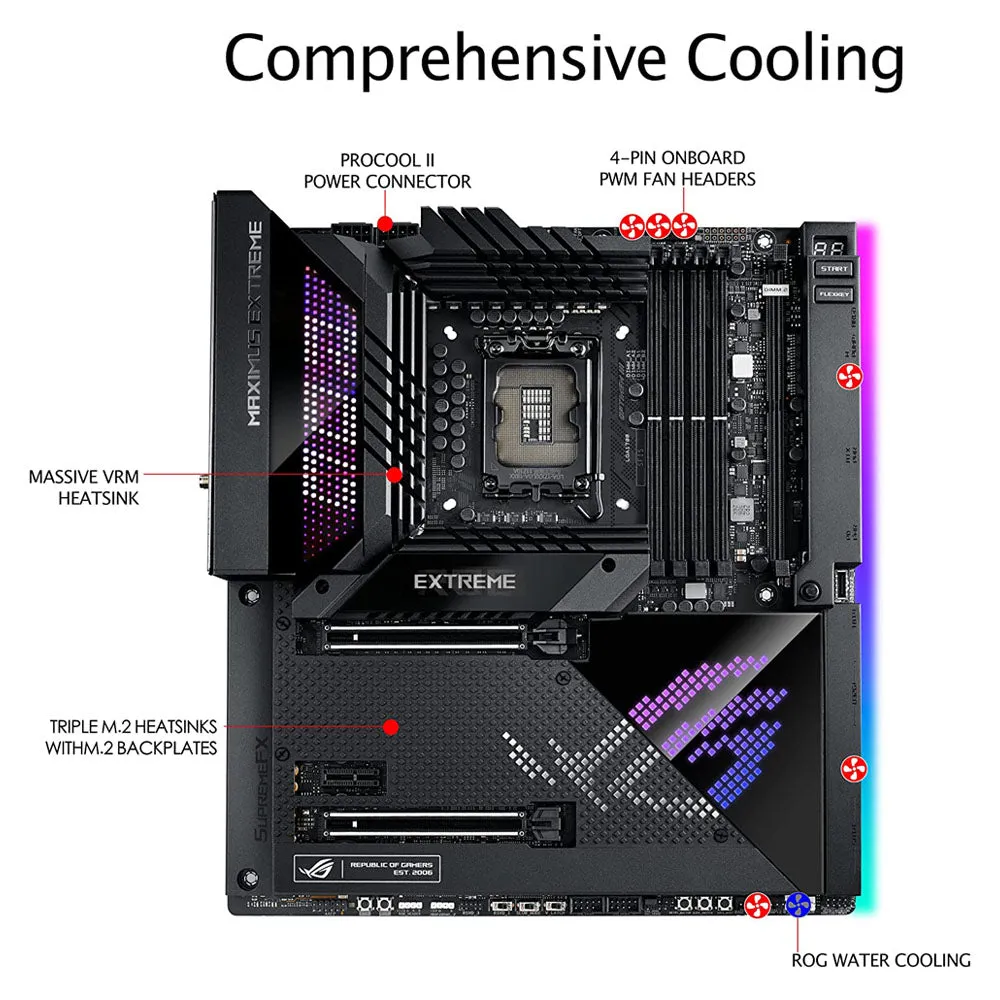

- Features the most comprehensive cooling options with VRM heatsink, Thermal pads, M.2 backplate and hybrid fan headers plus ROG Water-Cooling Zone and ROG Fan Controller.

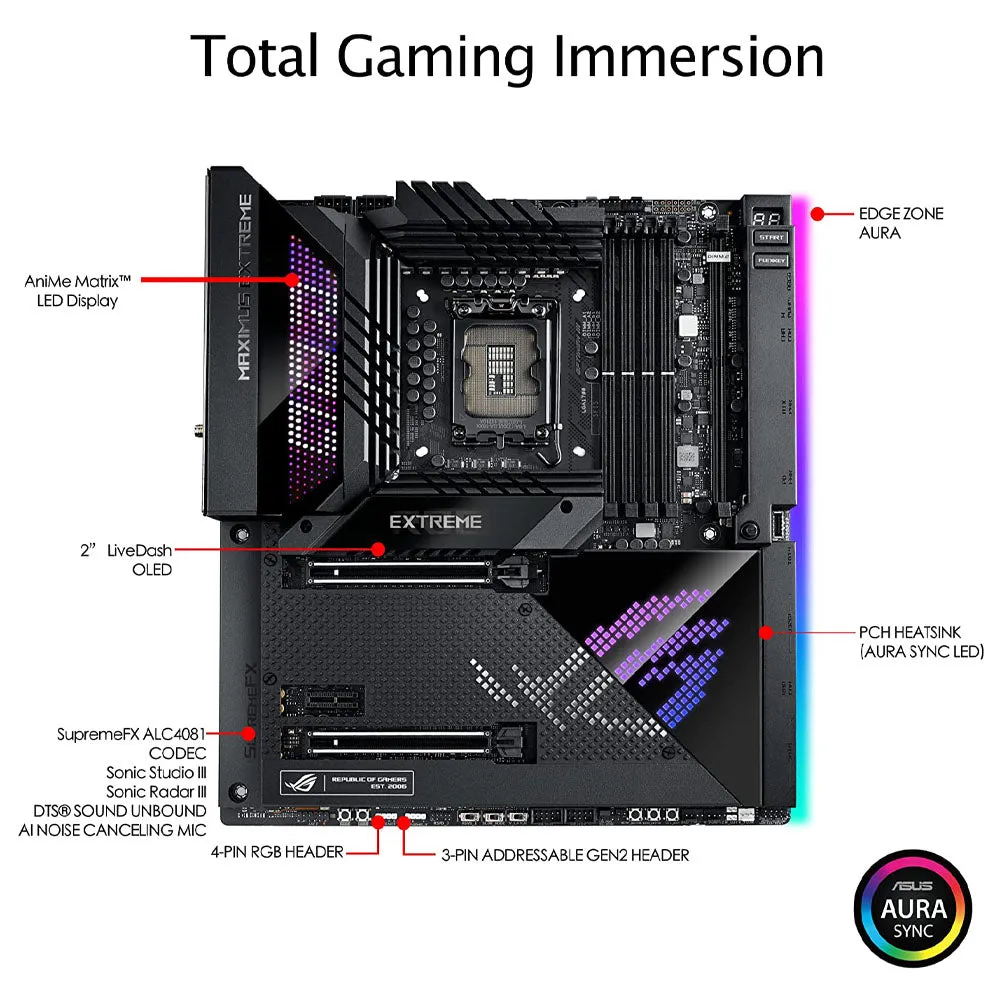

- The E-ATX motherboard comes with DIY Friendly features. The LIVEDASH OLED 2 indicates power status and potential problems with the CPU, memory, graphics card or boot device for quick diagnosis. It is also having a handful features like V_Latch Switch, M.2 Q-Latch and ESD Guard.
~section~

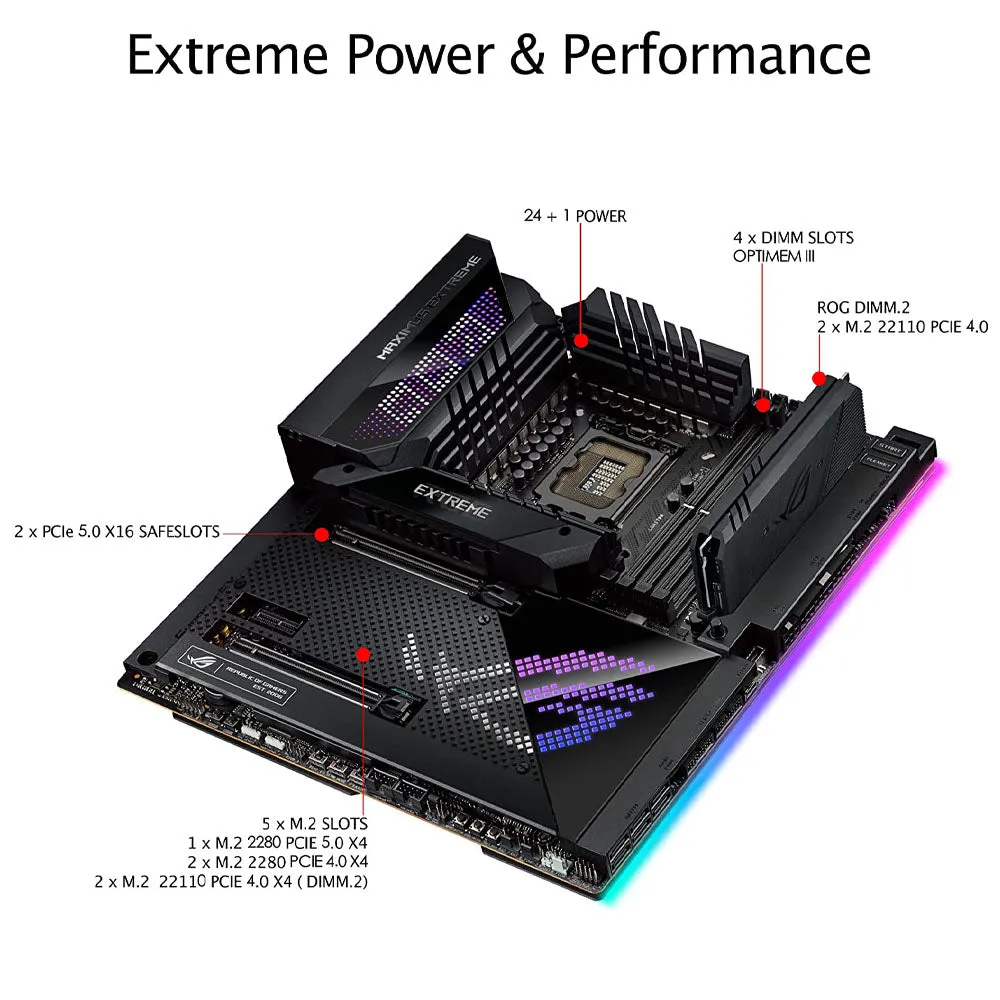

ROG MAXIMUS Z690 Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel Core CPUs.
Three Onboard M.2 Slots
ROG Maximus Z690 Extreme is features three onboard M2 slots, with one offering support for the latest PCIe 5.0 SSDs.
ROG DIMM.2
ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance.
DDR5 Overclocking
For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory that have a locked power management IC.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing circuits that are susceptible to noise and have to tap voltage rails from a location that isn’t ideal for accurate monitoring. Maximus Z690 Extreme features a differential-sensing circuit that rejects noise and takes readings directly from the CPU and the end point of major voltage rails.
USB 3.2 Gen 2x2 With Quick Charge 4
Quick Charge 4 technology can rapidly charge devices at up to 60W with a PCIe power supply cable plugged into the nearby 6-pin connector.
INTEL WIFI 6E
Onboard WiFi 6E technology providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds.
2 Thunderbolt 4 USB-C
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives, also supports up to 2 external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
~section~
| Model | ASUS ROG MAXIMUS Z690 Extreme Motherboard |
| Part Number | MAXIMUS-Z690-EXTREME |
| CPU Socket | Intel Socket LGA 1700 |
| CPU Support | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| Multi-GPU support | Supports NVIDIA 2-Way SLI Technology |
| Graphics | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs |
| Expansion Slot | Intel 12th Gen Processors: 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z690 Chipset: 1 x PCIe 3.0 x1 slot |
| Ethernet | 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet |
| Wireless and Bluetooth | Intel Wi-Fi 6E |
| Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M), type 2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 and SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback |
| USB Ports | Rear USB (Total 10 ports): 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A 1 x USB Type-C) 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

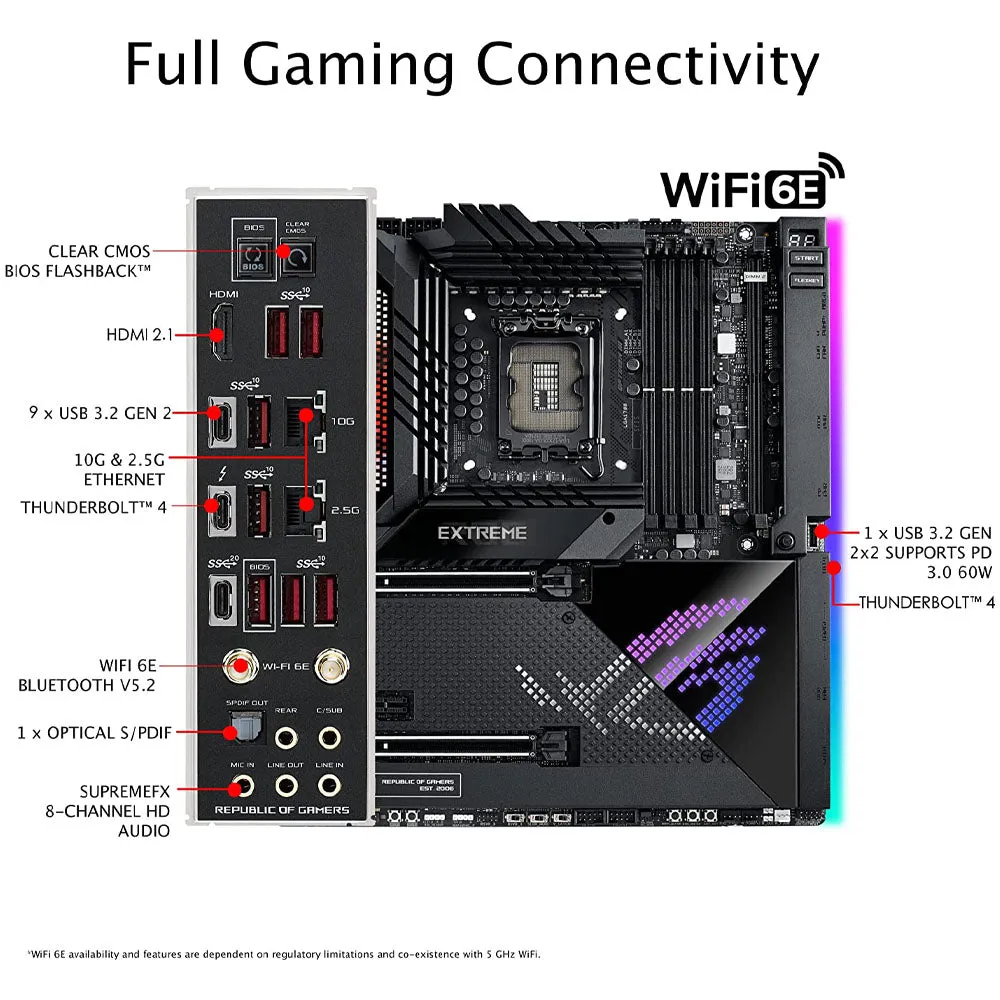

| Back Panel I/O Ports | 1 x Thunderbolt 4 USB Type-C port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A 1 x USB Type-C) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports | Fan and Cooling related: 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan headers 1 x W_PUMP header(s) 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related: 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB: 1 x Intel Thunderbolt 4 port (USB Type-C) )1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x OSC sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD header 2 x RSVD switches 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x V_Latch switch |

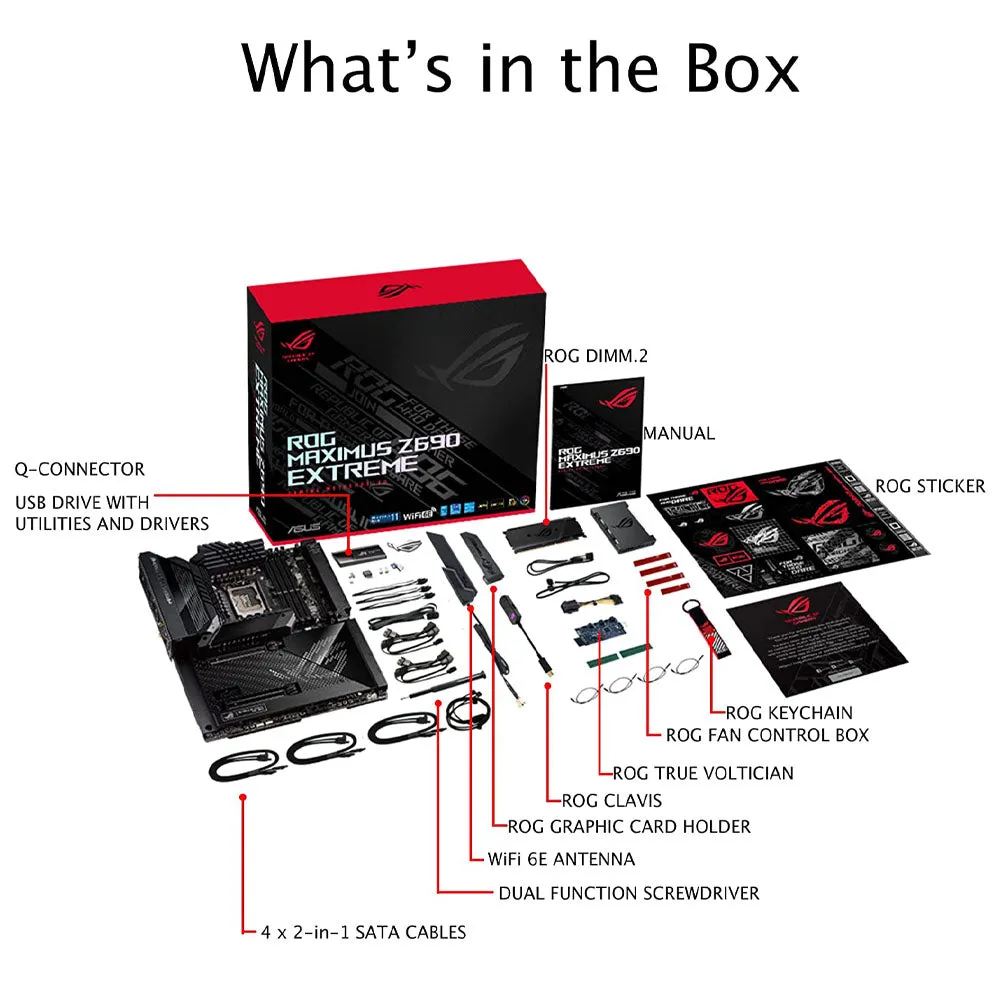

| Accessories | Cables: 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cables 1 x RGB extension cable 3 x ROG weave SATA 6G cables 4 x SATA 6Gb/s cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Miscellaneous: 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 SSD screw package 1 x ROG CLAVIS DAC 1 x ROG Graphics card holder 1 x ROG key chain 1 x ROG stickers 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG thank you card 1 x Thermal pad package for M.2 heatsink Installation Media 1 x USB drive with utilities and drivers Documentation: 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 27.7 cm Extended ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
