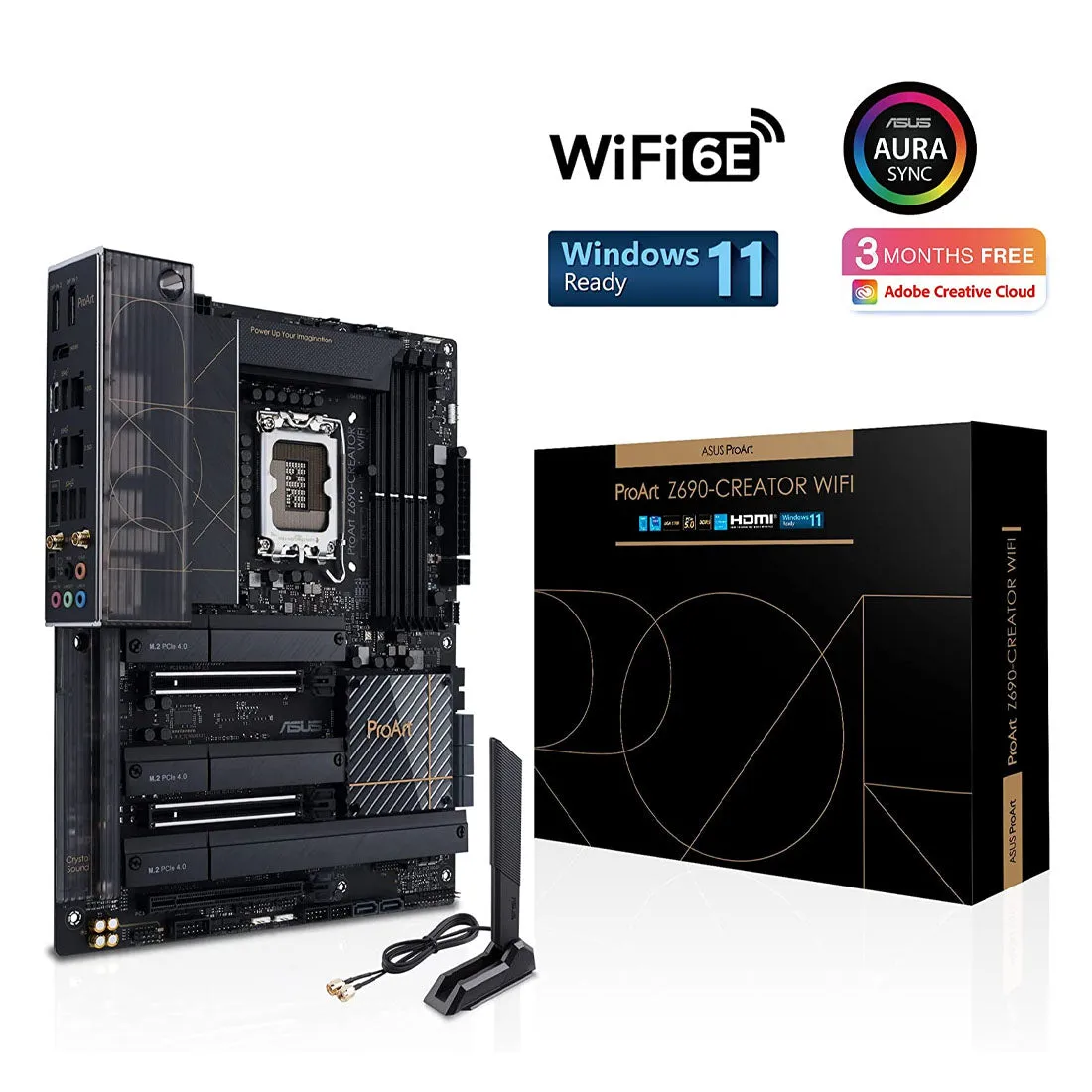

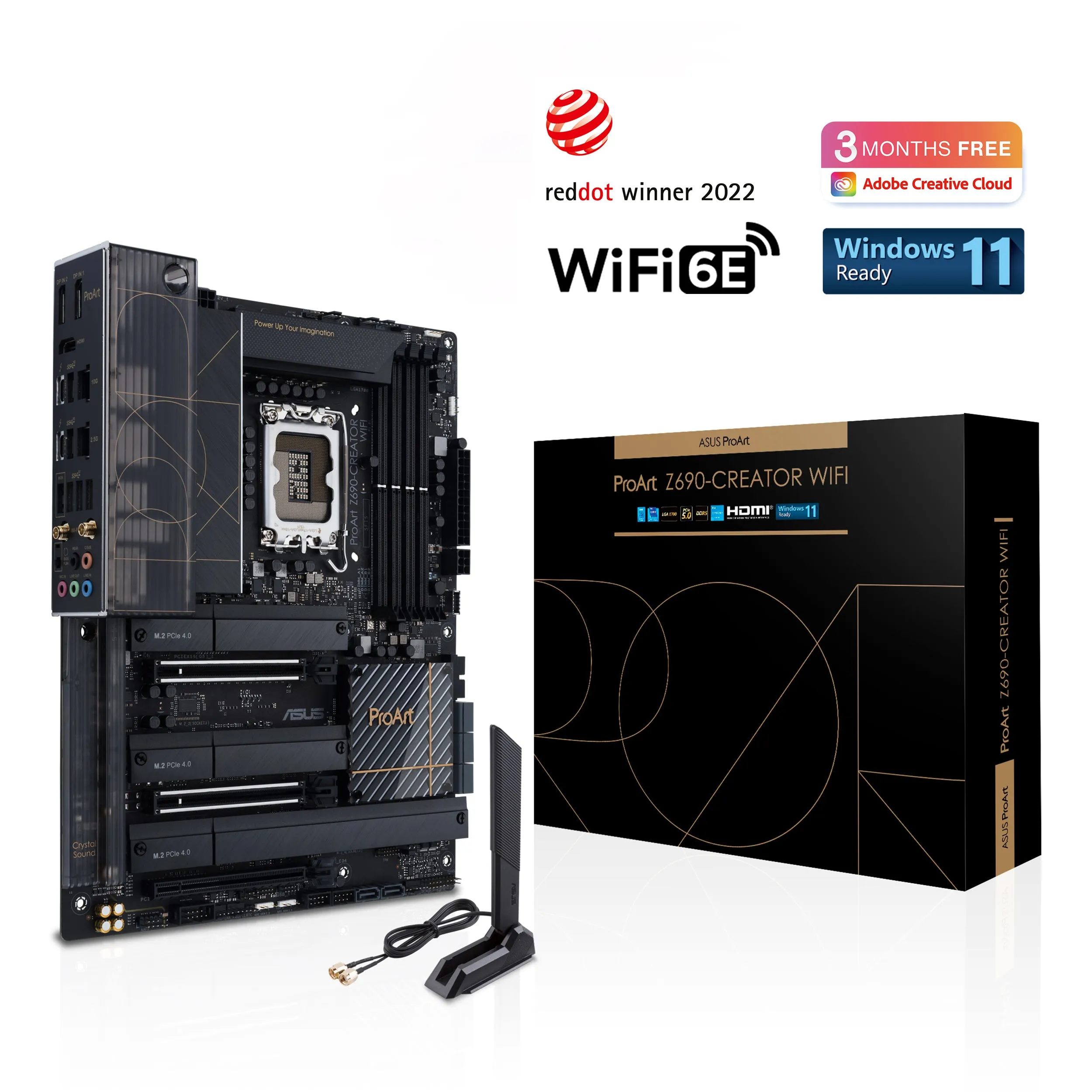

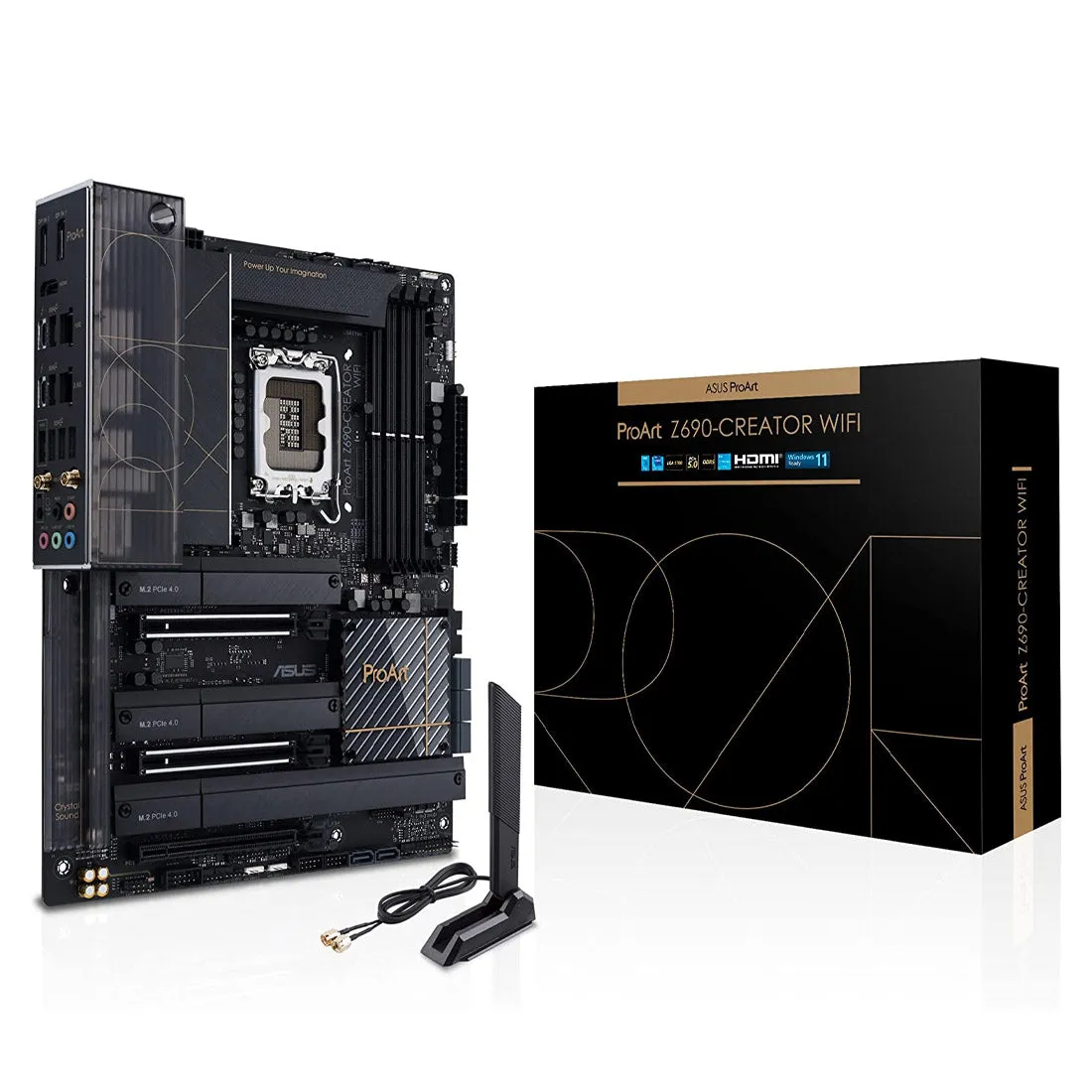

- ASUS ProArt Z690-CREATOR WIFI motherboard which is designed to support latest Intel Socket LGA 1700 for 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
- The ASUS Z690 motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 6600 MHz (OC) of memory and Intel Turbo Boost Technology 2.0. The DDR4 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of WIFI 6E, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 front-panel connector, 4x M.2 slots, USB Type-C, Thunderbolt 4 and more features.

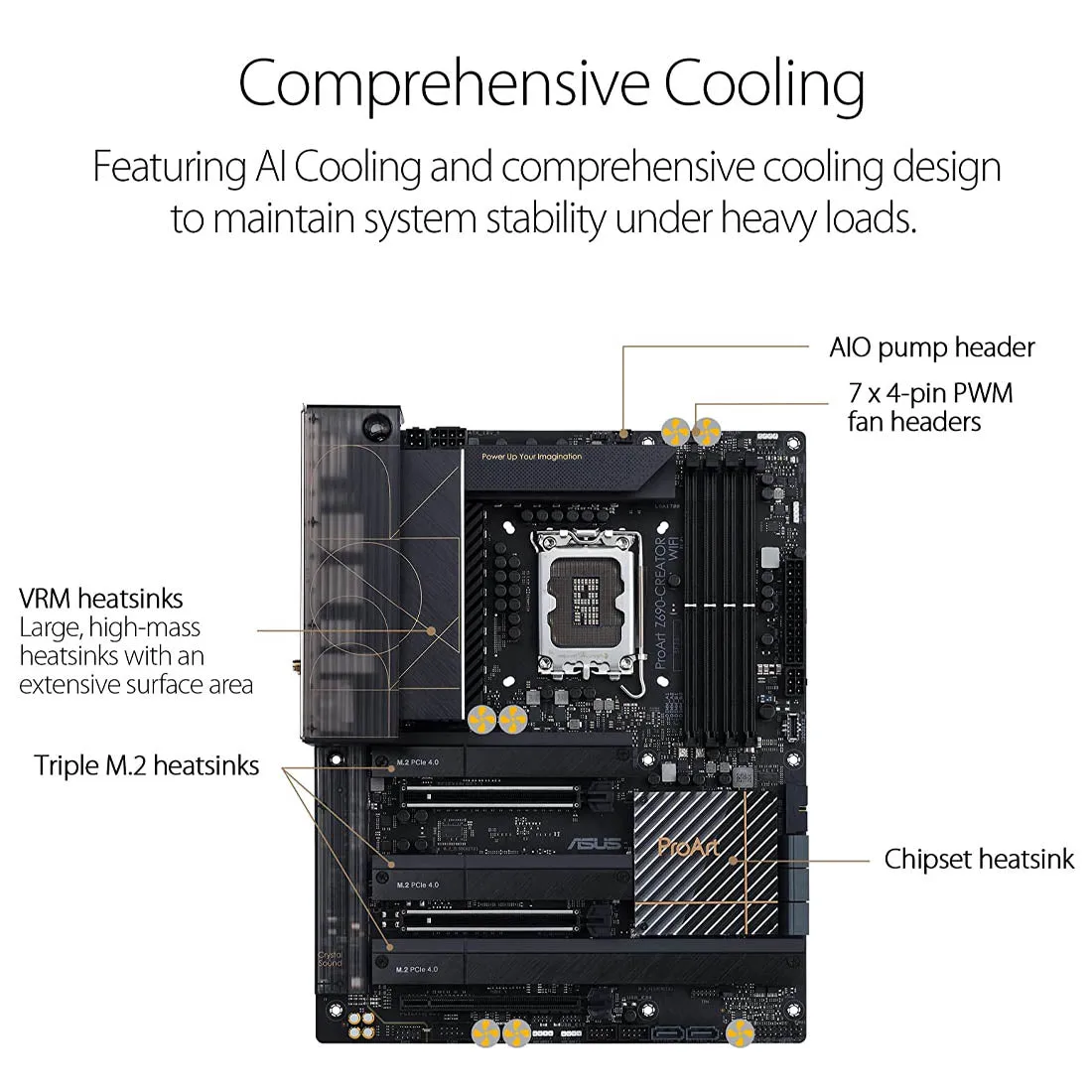

- Features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, PCH heatsink and 4-pin PWM fan headers
- Equipped with ProArt Creator Hub which is a user-friendly interface provides applications designed to enhance workflow through central control of all connected ProArt series products including motherboards and displays.
~section~
Your Powerhouse for Creativity
ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel Core processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
PCIe 5.0 Ready
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks, improved signal integrity & backward-compatible CEM connectors for add-in cards.
M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools.
DDR5 Performance
Enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).
WIFI 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5GHz band.
Thunderbolt 4
Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
Stack Cool 3
Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.
ProArt Creator Hub
A user-friendly interface helps enhance workflows via a central system that allows monitoring and control of all connected ProArt Series products, including motherboards and displays. Select the preferred fan setting to quickly configure the system’s cooling performance. Applications that are frequently used together can be arranged into groups and launched with a single click.
AI Overclocking
automatically tunes your system with onboard intelligence that monitors system vitals such as temperatures, fan speeds and power draw to estimate cooling and overclocking headroom and deliver optimal performance.
AI Clocking
With one click, the AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.
Two-Way AI Noise Cancelation
An audio utility that leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back.
~section~
| Model | ProArt Z690-Creator WIFI |
| CPU Socket | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Z690 Chipset |
| Form Factor | ATX |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x HDMI port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort |
| Expansion Slots | Intel 12th Gen Processors 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Storage | Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet ASUS LANGuard |
| Wirless & Bluetooth | Intel Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| USB Ports | Rear USB:Total 8 ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 2x2 connector(s)(support(s) USB Type-C with 60W PD/QC4 ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector 1 x 4-pin 12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |

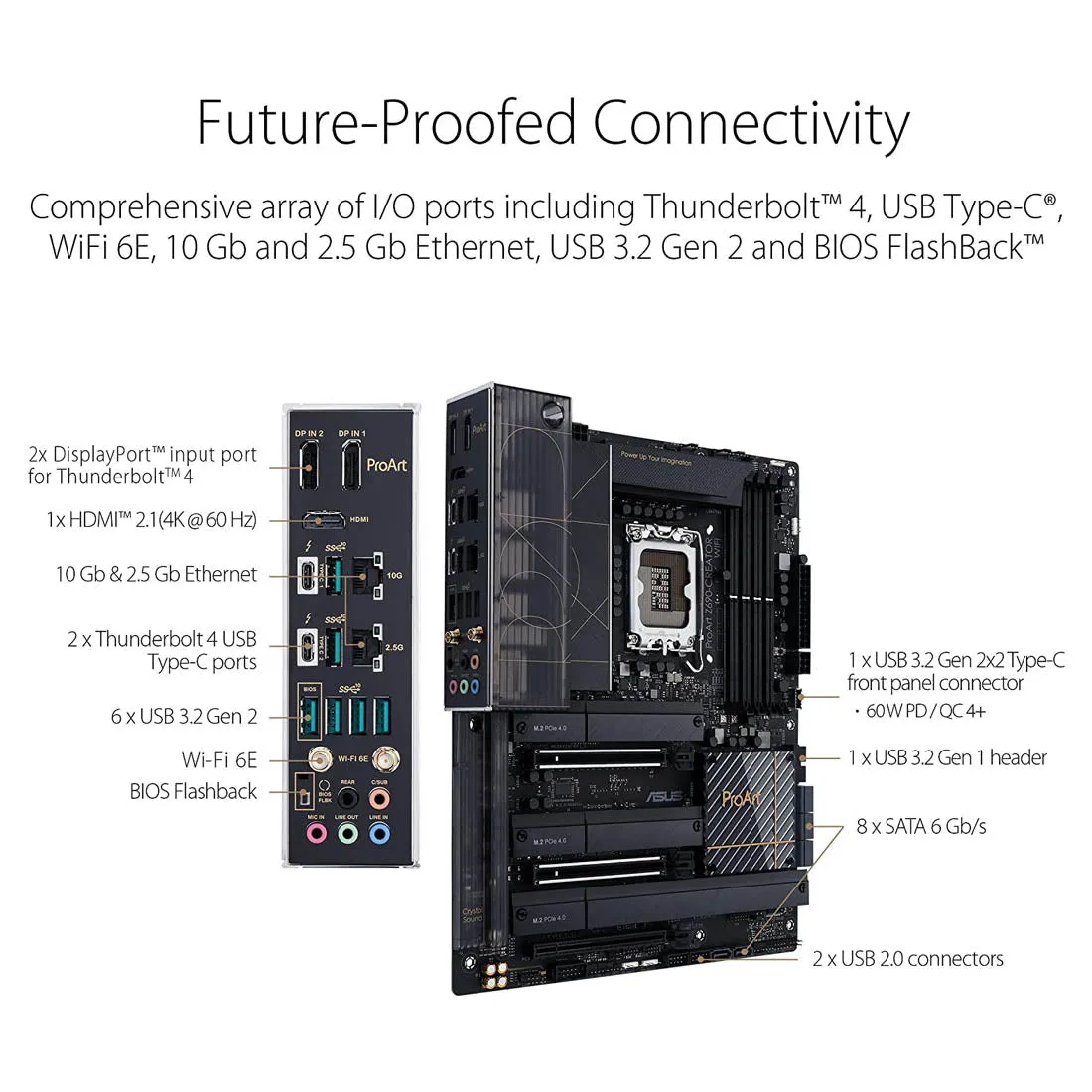

| Back Panel Connectors | 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| BIOS | 256 Mb |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Warranty | 3 Years |
