- The ASUS motherboard is designed to support latest AMD Ryzen 7000 Series CPU's with AM5 socket.
- The motherboard is PCIe 5.0 Ready supporting up to 128GB DDR5 6400MHz(OC) of memory and AMD Extended Profiles for Overclocking (EXPO) to push your experience to its peak.
- Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, 4x M.2 slots and Thunderbolt header support.
- This motherboard have AI Cooling which manages and balance the thermals and acoustics of any build with a single click.

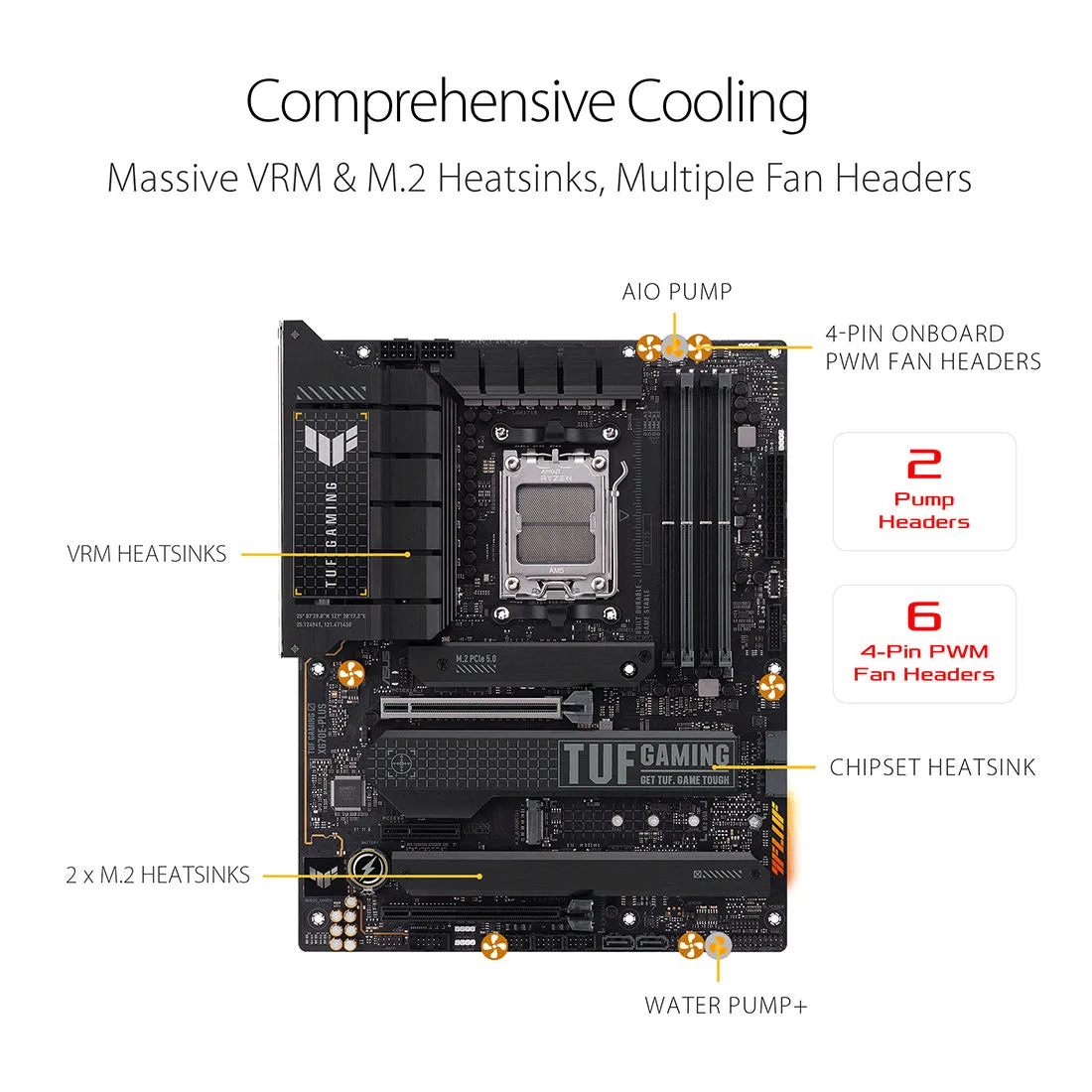

- The motherboard is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
~section~

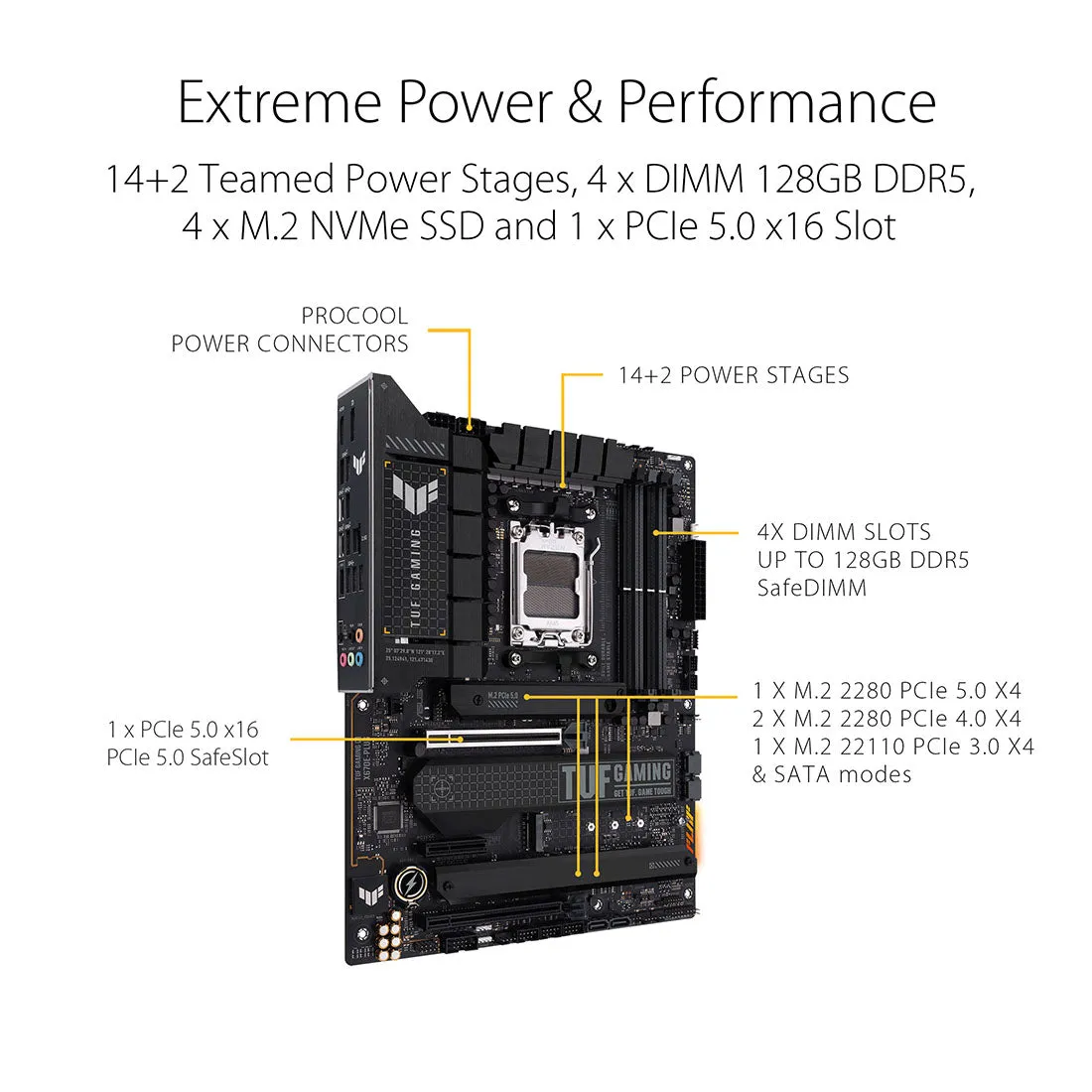

Four M.2 Slots
Features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.
DDR5 Performance
You can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
SafeSlot Core & SafeDIMM
SafeSlot Core is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards.
2.5Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade.
Realtek 7.1 Surround Sound
It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality.

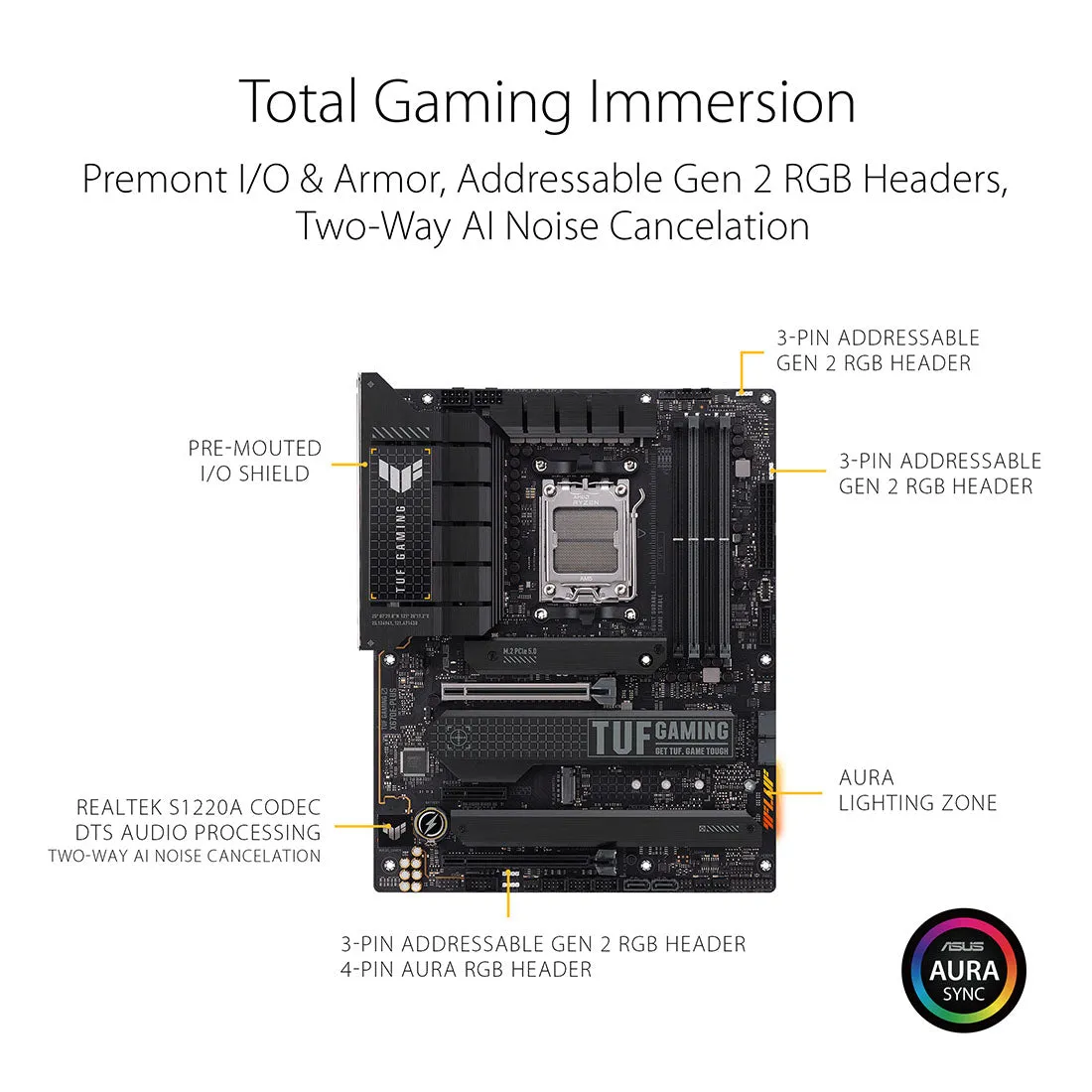

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices.

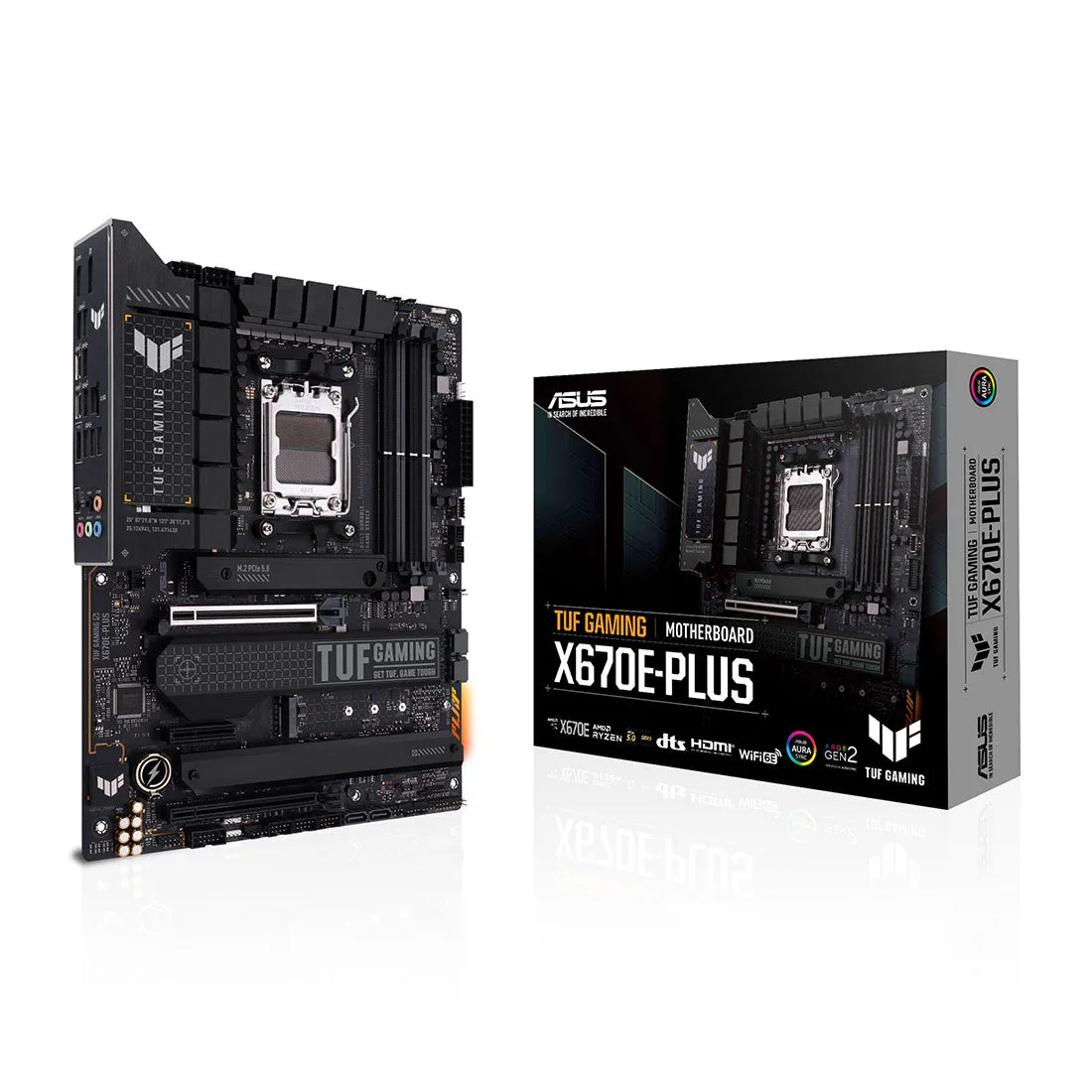

TUF Gaming X670E-Plus
ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. This motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
The Change is Here
Build your next rig with an AMD Ryzen 7000 Series processor and ROG Strix X670E-E Gaming WiFi to experience advanced performance. You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe 5.0.
~section~
| Model | ASUS TUF Gaming X670E-Plus ATX Motherboard |
| Part Number | 90MB1BJ0-M0IAY0 |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1 x HDMI port |
| Expansion Slot | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD X670 Chipset 1 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x4 slot |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 32-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| USB Ports | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |

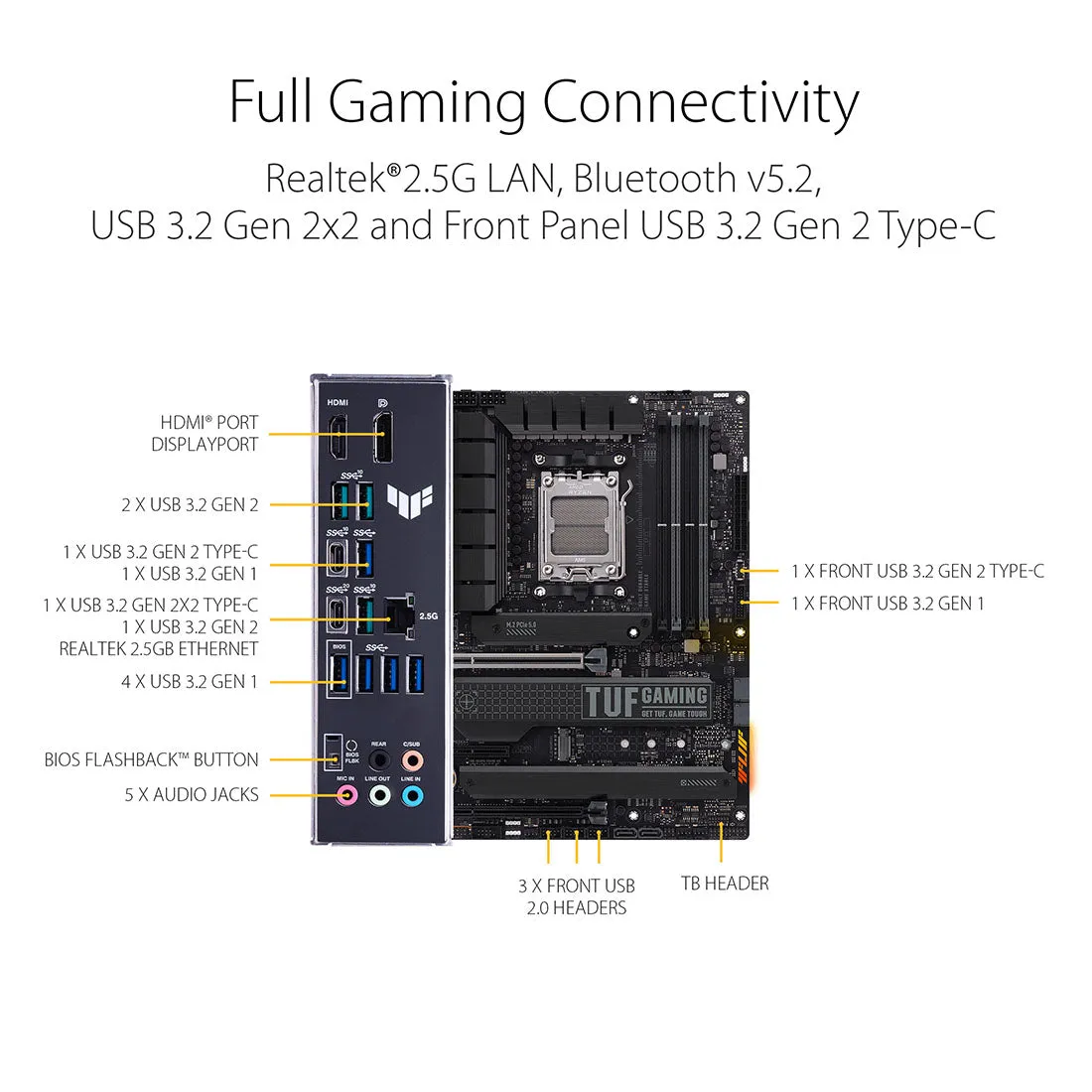

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP header Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |

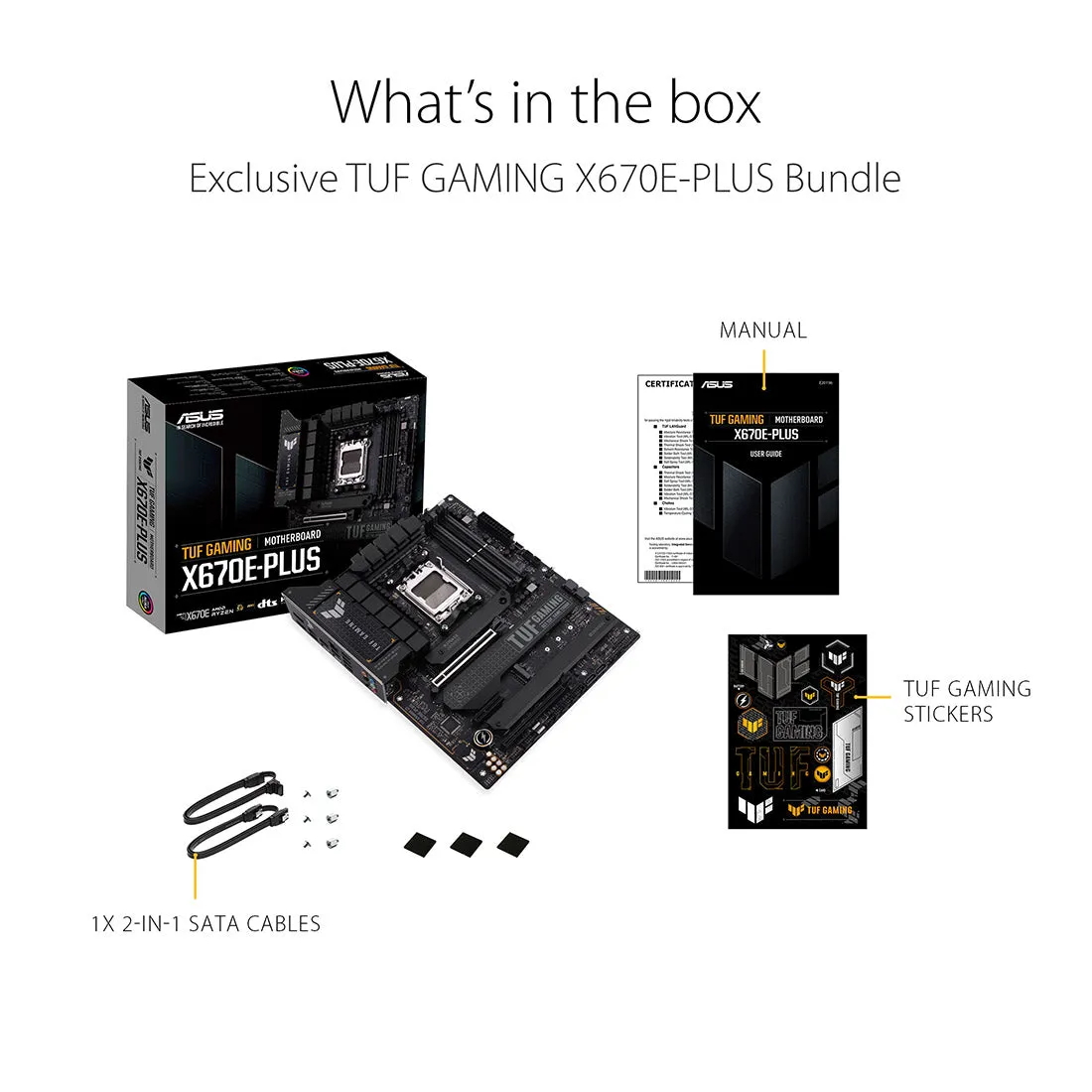

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation1 x TUF certification card 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
