- ASUS ROG STRIX Z590-E WiFi Gaming motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors. The board is PCIe 4.0 Ready supporting up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your gaming experience to its peak.
- The board supports multiple GPUs with the help NVIDIA 2-Way SLI Technology. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible. Intelligent software solutions help ensure that your system performs at its best.
- ROG STRIX Z590-E WiFi features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs an fan bracket, plus four M.2 sinks teamed with backplate blocks to wick heat away from critical components. That rugged foundation is backed by complimentary headers for fans, AIOs and water pump headers, paired with flexible control options that allow you to keep thermals in check at all times.
- The latest connectivity solutions including WiFi 6E AX210, dual Intel 2.5 Gb Ethernet, PCIe 4.0 and two Thunderbolt USB Type-C ports ensure supersmooth networking and blisteringly fast file transfers. And for enthusiasts looking for high-fidelity audio, the SupremeFX ALC4082 codec takes gaming immersion to a whole new level while also saving a PCIe slot.
- ASUS's 5-Way Optimization helps you in automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
~section~
ROG STRIX Z590-E Gaming WiFi
The flagship ROG Strix Z590-E Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 11th Generation Intel Processors. This powerhouse of a motherboard is wrapped in a futuristic look that’s highlighted with a brushed-metal finish, iridescent ROG logo on the I/O shroud, and Aura Sync illumination.

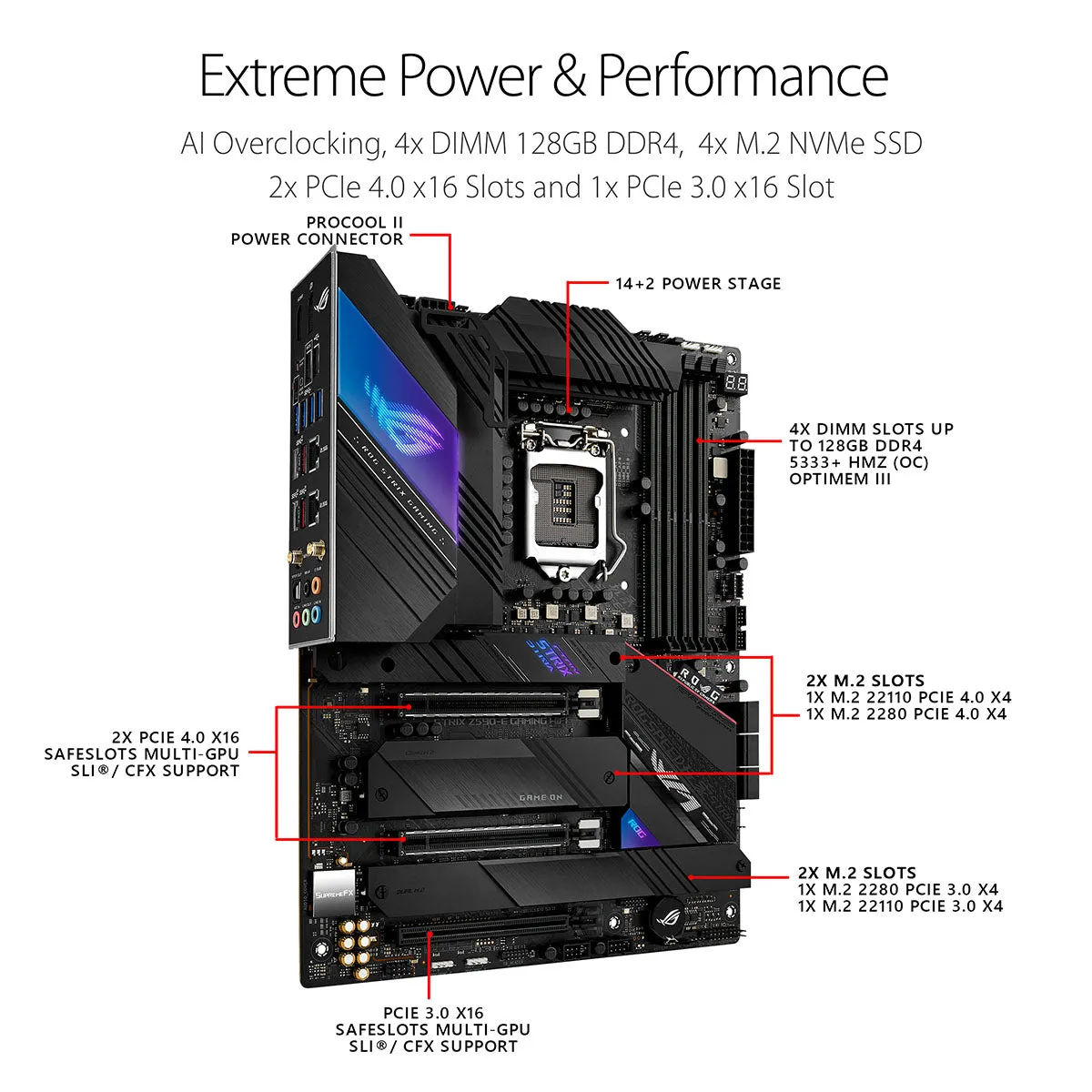

Power Design
ROG Strix Z590-E Gaming WiFi is armed with up-rated power delivery and optimized cooling to enable top-tier performance for gaming. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

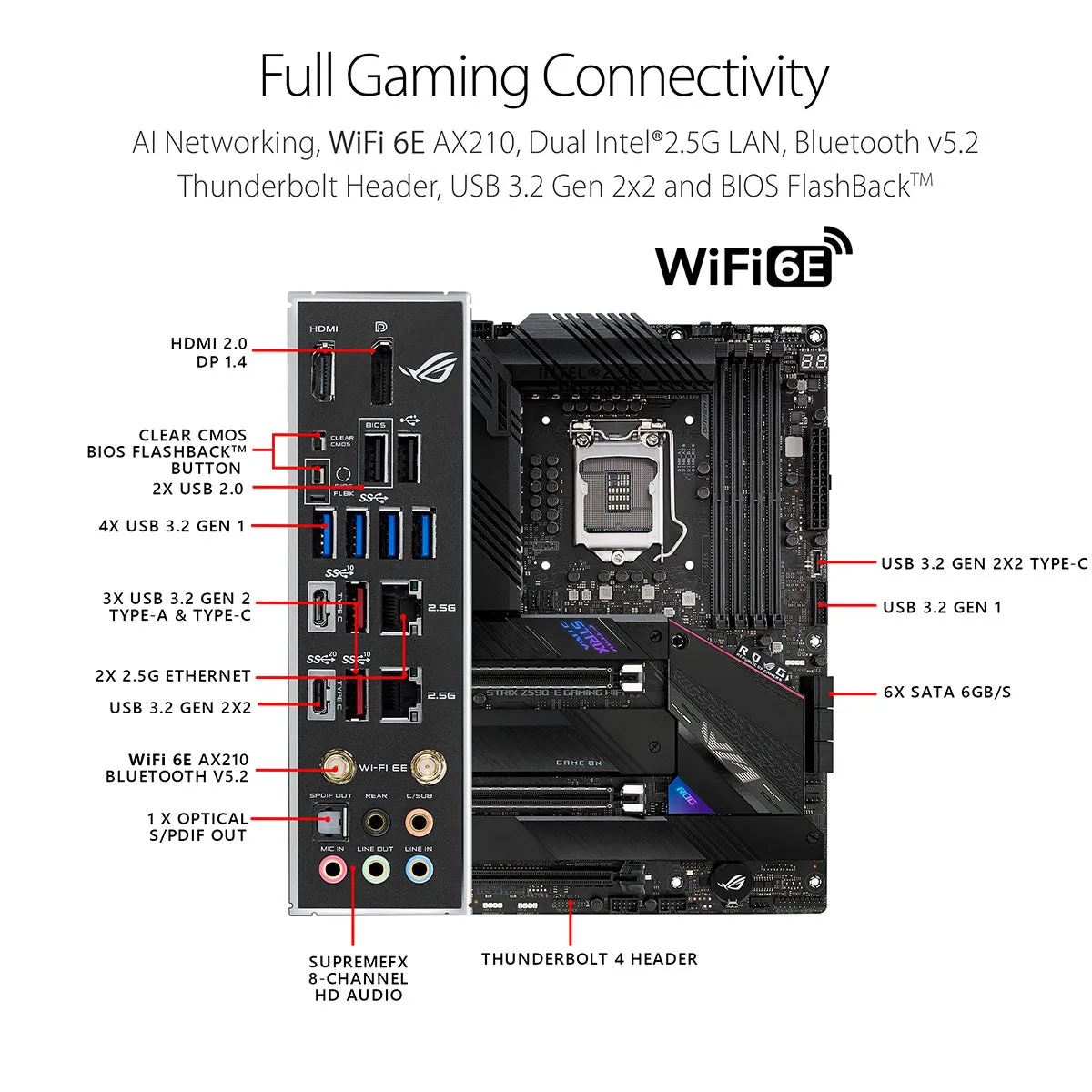

Networking
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band. Dual onboard 2.5 Gb Ethernet gives a 2.5X improvement over standard Ethernet connections.

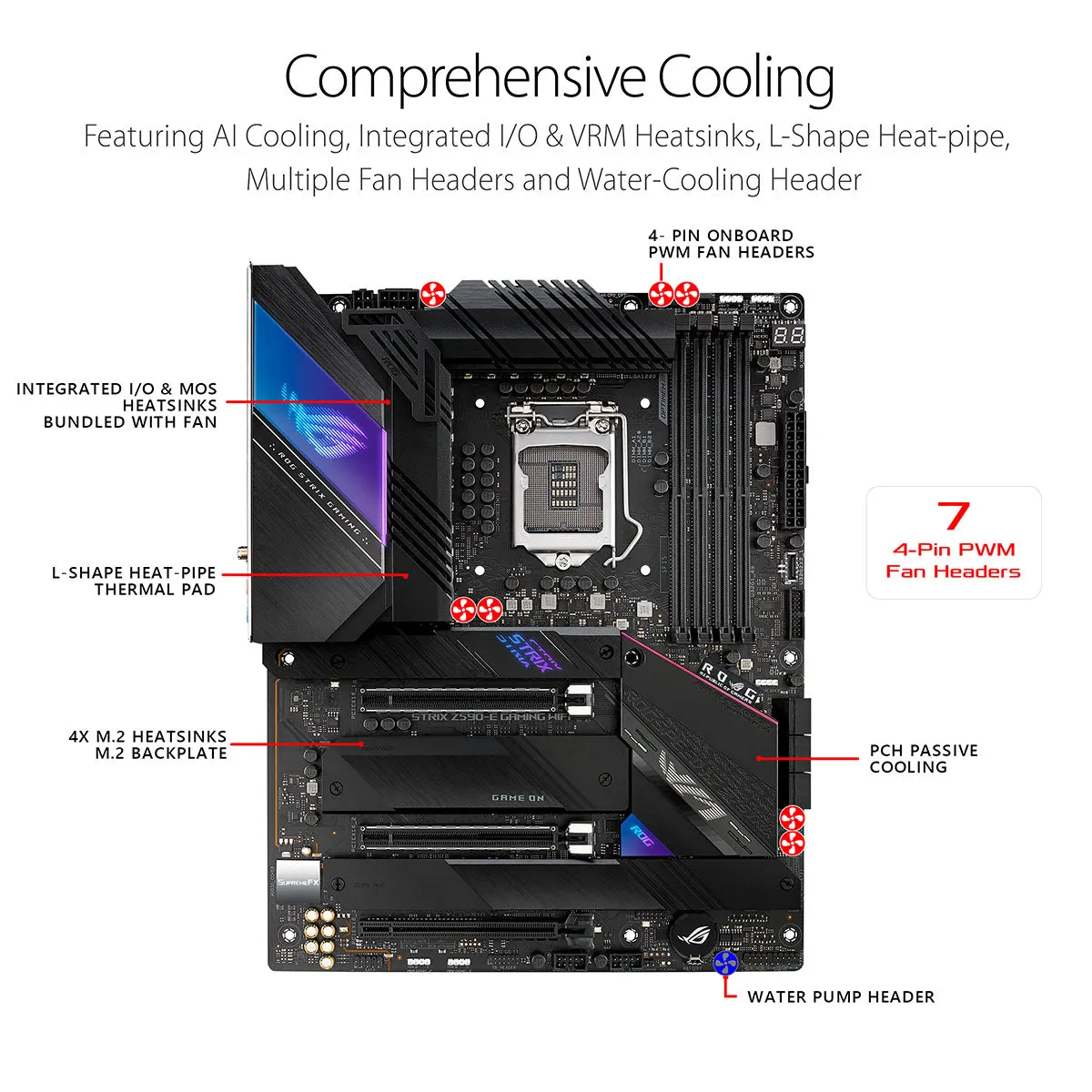

Cooling
The board comes with an optimized intelligent cooling setup. Intelligent controls lets you manage cooling easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance. The system includes CPU fan header, AIO pump fan header and Water pump header.
AIDA64 Extreme
ROG Strix Z590 motherboards include a 60-day AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues.
PCIe 4.0-Ready
Features four onboard M.2 slots, two of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs. In addition, three of the M.2 slots support up to a 22110 socket and NVM Express RAID.
BIOS FlashBack
BIOS FlashBack is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed. A quick press of the Clr CMOS button helps reset BIOS settings.
Optimem III
With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack ROG Strix with your favorite modules and maximize the throughput of the 11th Gen Intel Core.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
Pre-Mounted I/O Shield
ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard. The shield assures protection to your STRIX motherboard in any environment.

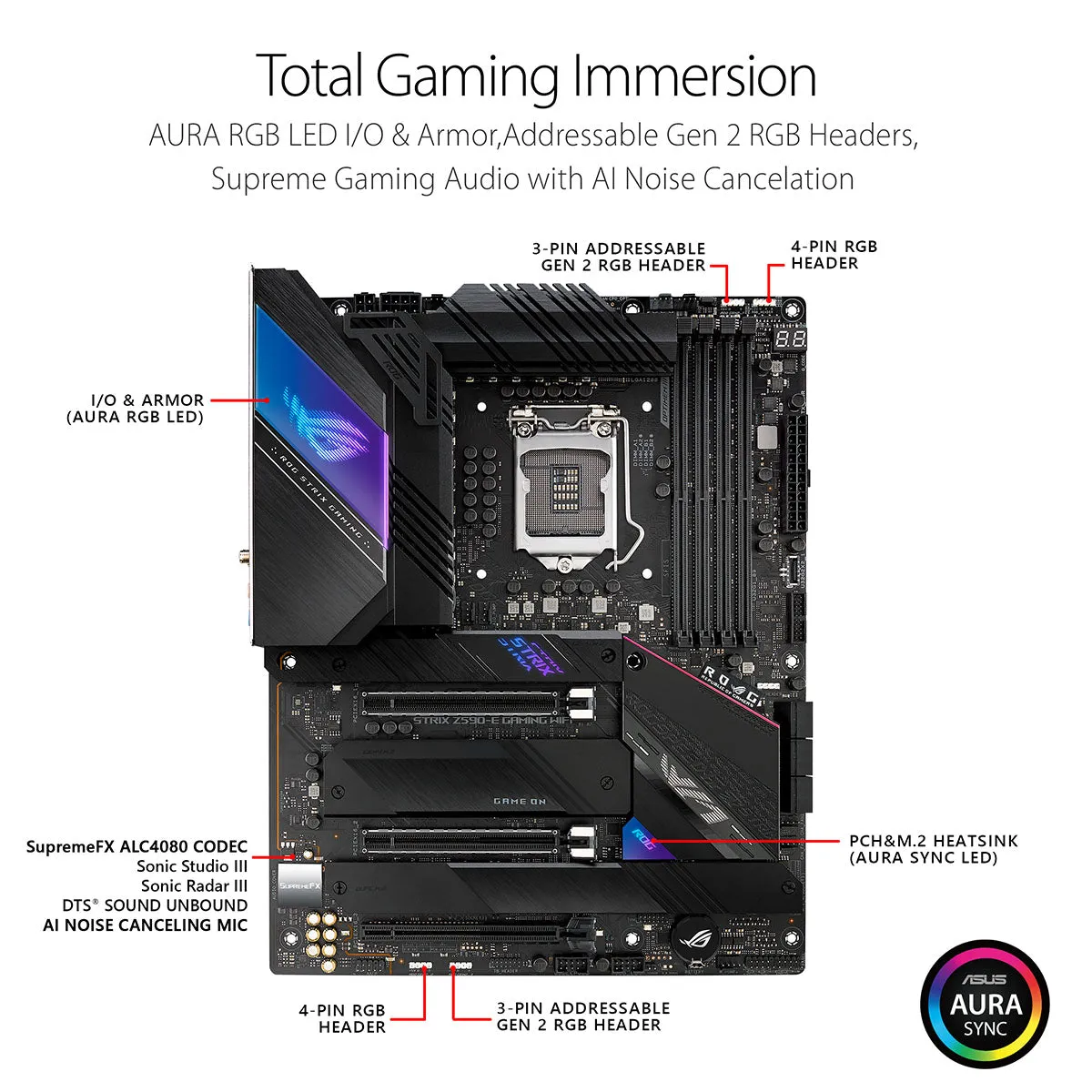

Aura Sync
ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header. It can all be synced with Aura-capable ASUS hardware.
~section~
| Model | ROG STRIX Z590-E GAMING WIFI (90MB1640-M0UAY0) |
| CPU Socket | Intel Socket LGA1200 |
| CPU Support | Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/ |
| On-Board Graphics support | 1 x DisplayPort 1.4 1 x HDMI |
| Multi-GPU support | Supports NVIDIA 2-Way SLI Technology |
| Expansion Slot | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors: 2 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel Z590 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Wireless and Bluetooth | Intel Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax/az) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready |
| Storage | Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th & 10th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280 - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode Intel Z590 Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| Audio | - SupremeFX Shielding Technology - ALC4080 Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |
| USB Ports | Rear USB (Total 10 ports): 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 port (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Intel Wi-Fi 6E 2 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports | 1 x Thunderbolt 4 (onboard) Fan and Cooling related: 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x W_PUMP header(s) Power related: 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector 1 x 4-pin 12V Power connector Storage related: 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous: 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Q Code 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt |
| Accessories | Cables: 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Assistant fan (40mm) 1 x Screw package for cooling kit Miscellaneous: 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG Graphics card holder 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media: 1 x Support DVD Documentation: 1 x User manual |
| Dimensions | 30.5 cm x 24.4 cm (12 x 9.6 inch ) ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
