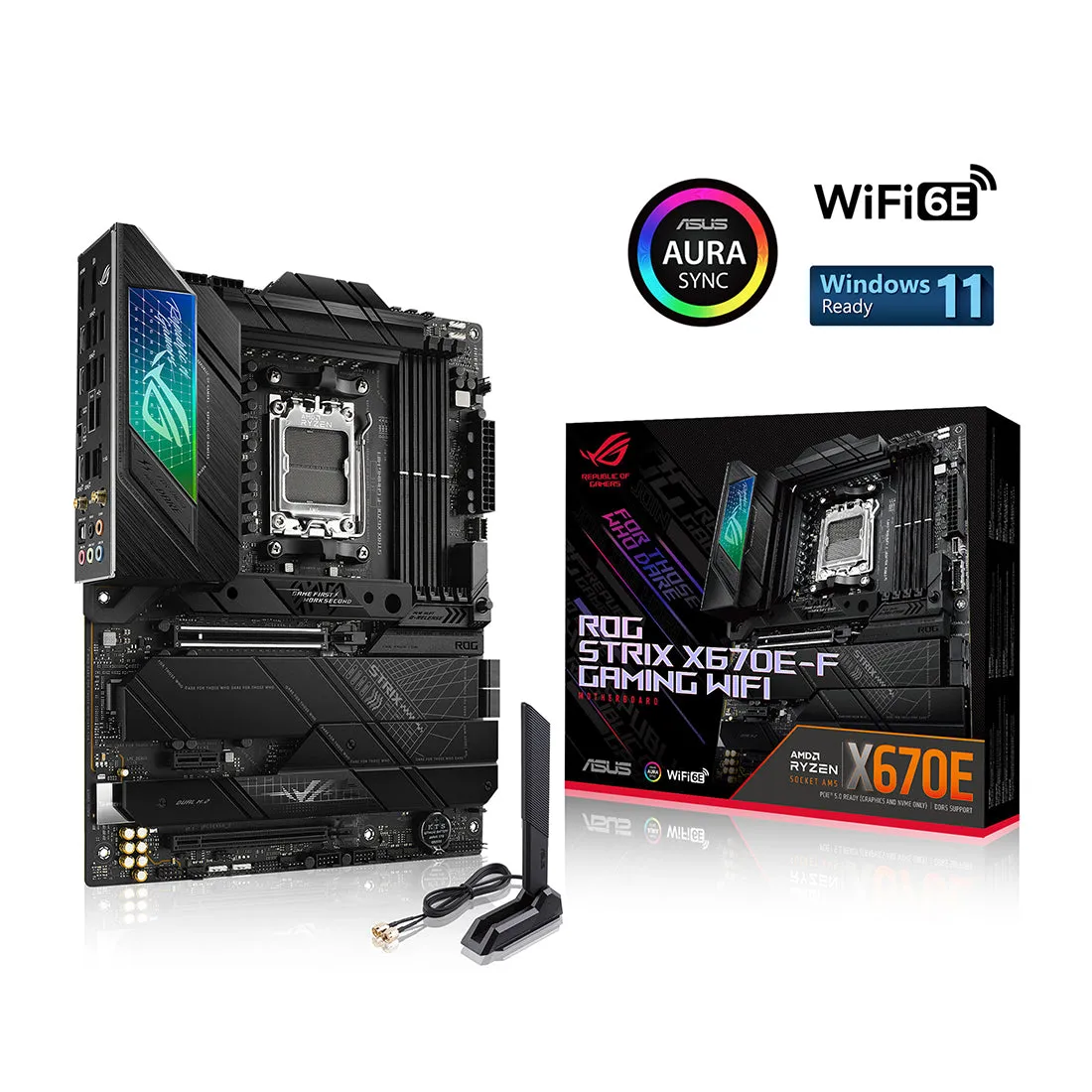

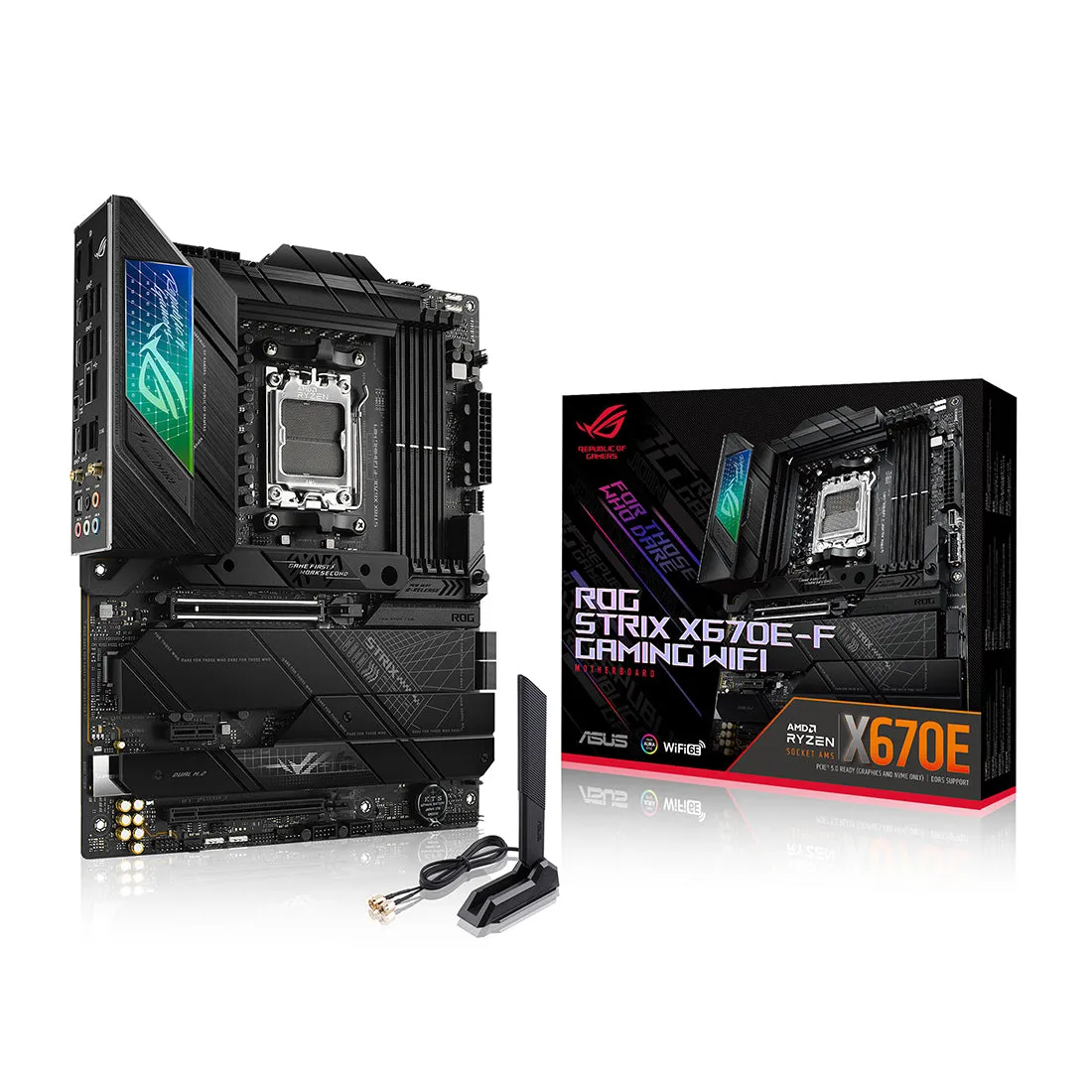

- The ASUS ROG STRIX X670E-F GAMING WIFI ATX motherboard is designed to support latest AMD Ryzen 7000 Series CPU's with AM5 socket.
- The board is PCIe 5.0 Ready supporting up to 128GB DDR5 6400MHz(OC) of memory and AMD Extended Profiles for Overclocking (EXPO) to push your experience to its peak.
- Enjoy extended connectivity with the next-gen technology of PCIe 5.0, Wi-Fi 6E, Bluetooth v5.2, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 2x2 Type-C and four M.2 slots.
- Comes with AI Overclocking optimizing performance based on CPU and cooler loads and AI Cooling which manges and controls all motherboard fans, automatically optimizing settings based on current system load and temperature.
- ROG STRIX X670E features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 Heatsink and High-quality thermal pads.
- The Digi voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.
~section~
ROG STRIX X670E-F GAMING WIFI
The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen 7000 Series processors.
PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2.
DDR5 Strength
For those who want to fly past stock DDR5 speeds, the Strix X670E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

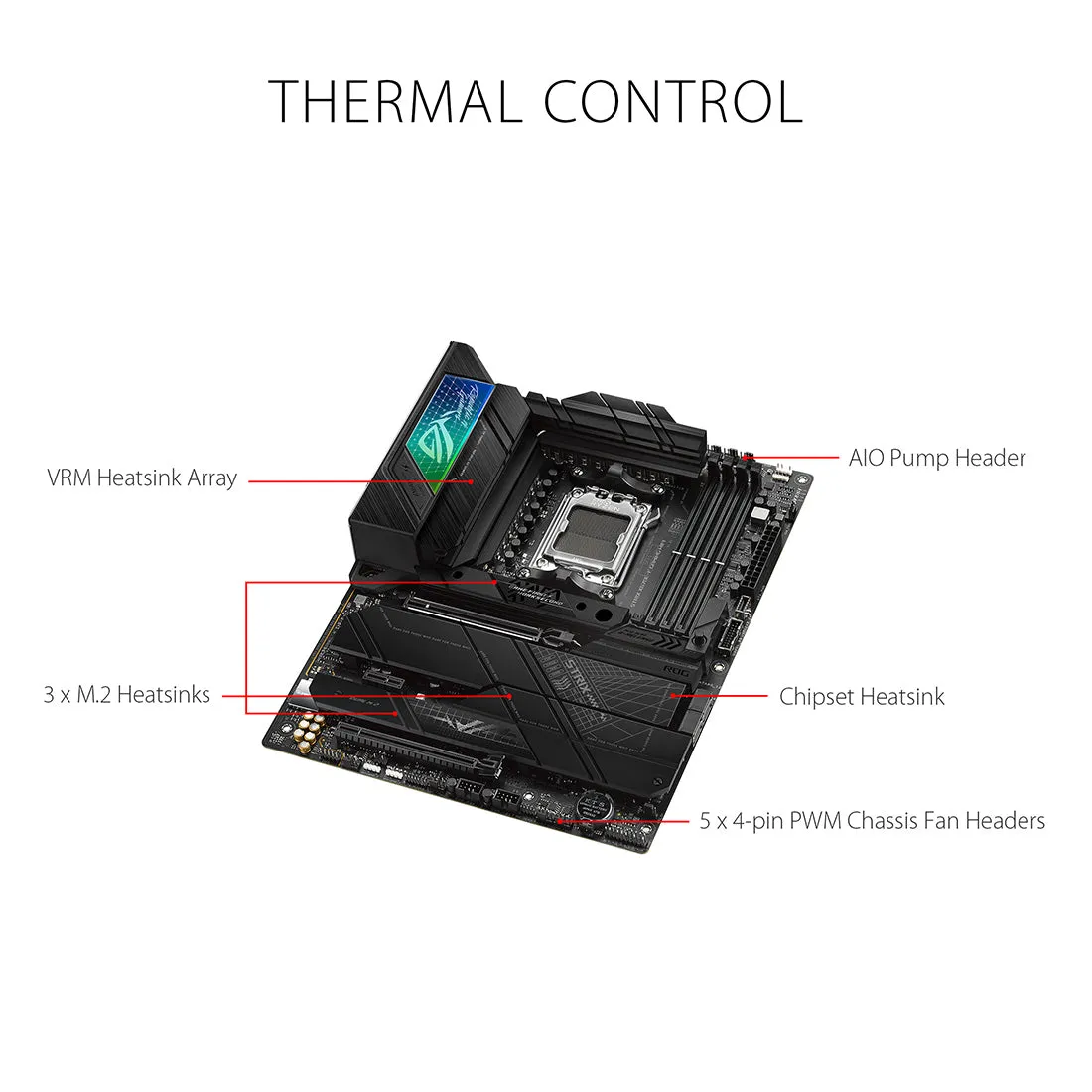

VRM Heatsinks
Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance AMD Ryzen 7000 Series processors.
M.2 Backplate
An integrated backplate on the M.2_1 slot helps ensure that high-performance PCIe 5.0 drives can deliver peak performance, even when airflow is restricted.
Undeniably ROG STRIX
A jet black PCB and matching metallic heatsinks give it a brooding aesthetic overall, while a splash of RGB lighting on the I/O shroud gives you the choice to blend into the shadows or announce your presence.
AI Overclocking
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage.
PBO Enhancement
AMD Precision Boost Overdrive pushes the CPU current & voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
~section~
| Model | ASUS ROG STRIX X670E-F GAMING WIFI ATX Motherboard |
| Part Number | 90MB1BA0-M0IAY0 |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1 x HDMI port |

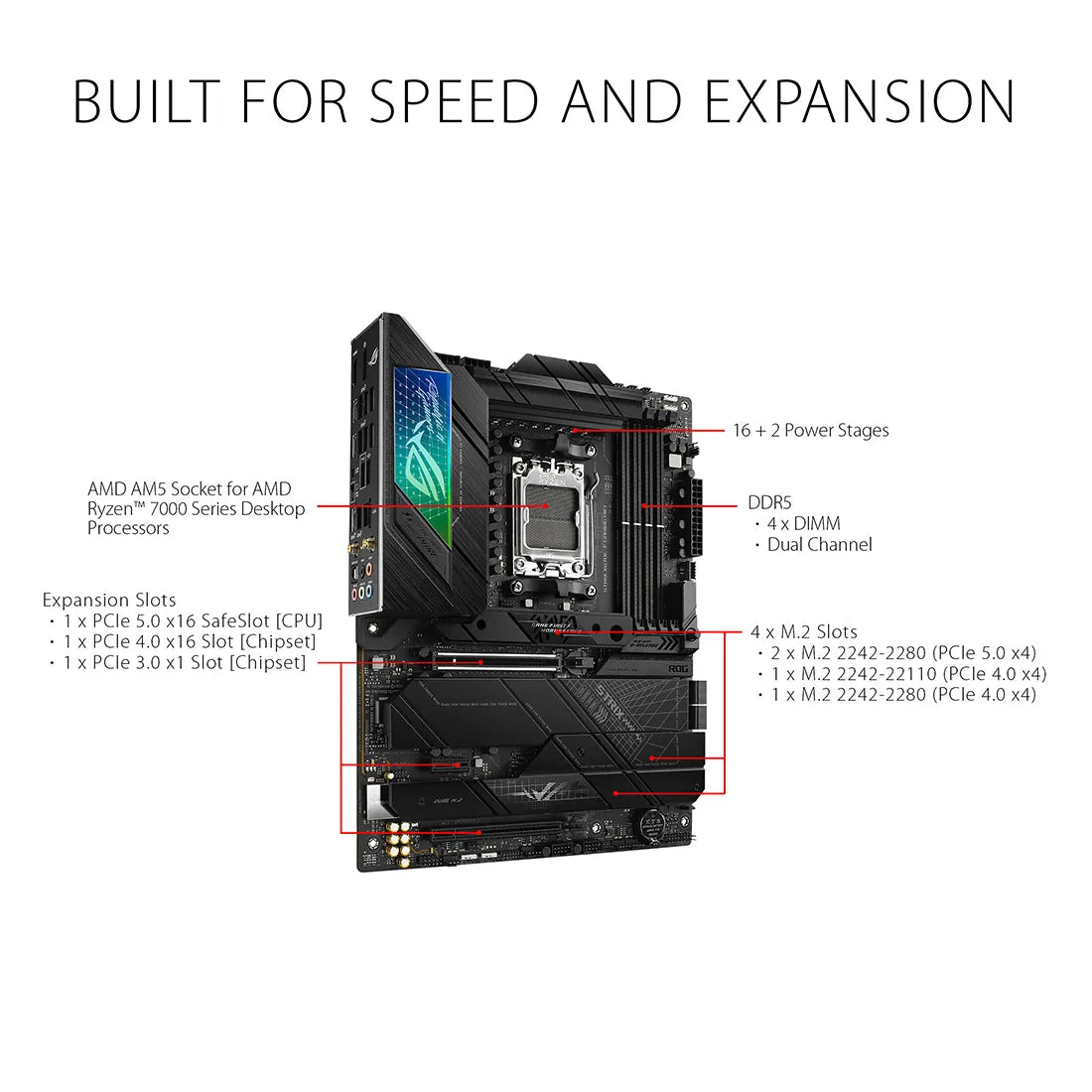

| Expansion Slot | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slots (supports x16 mode) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |

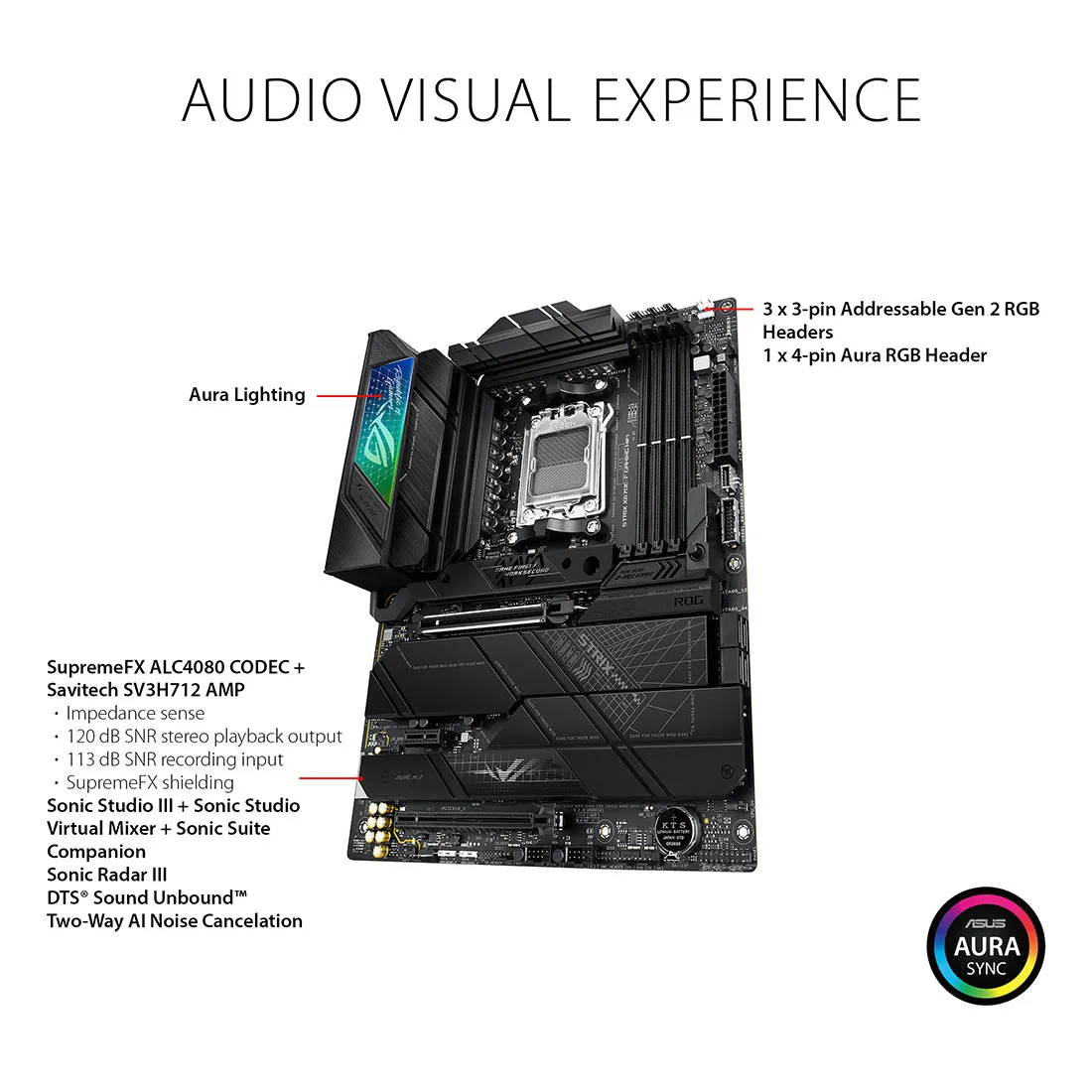

| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| USB Ports | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 9 x USB 3.2 Gen 2 ports (7 x Type-A 2 x USB Type-C) 2 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

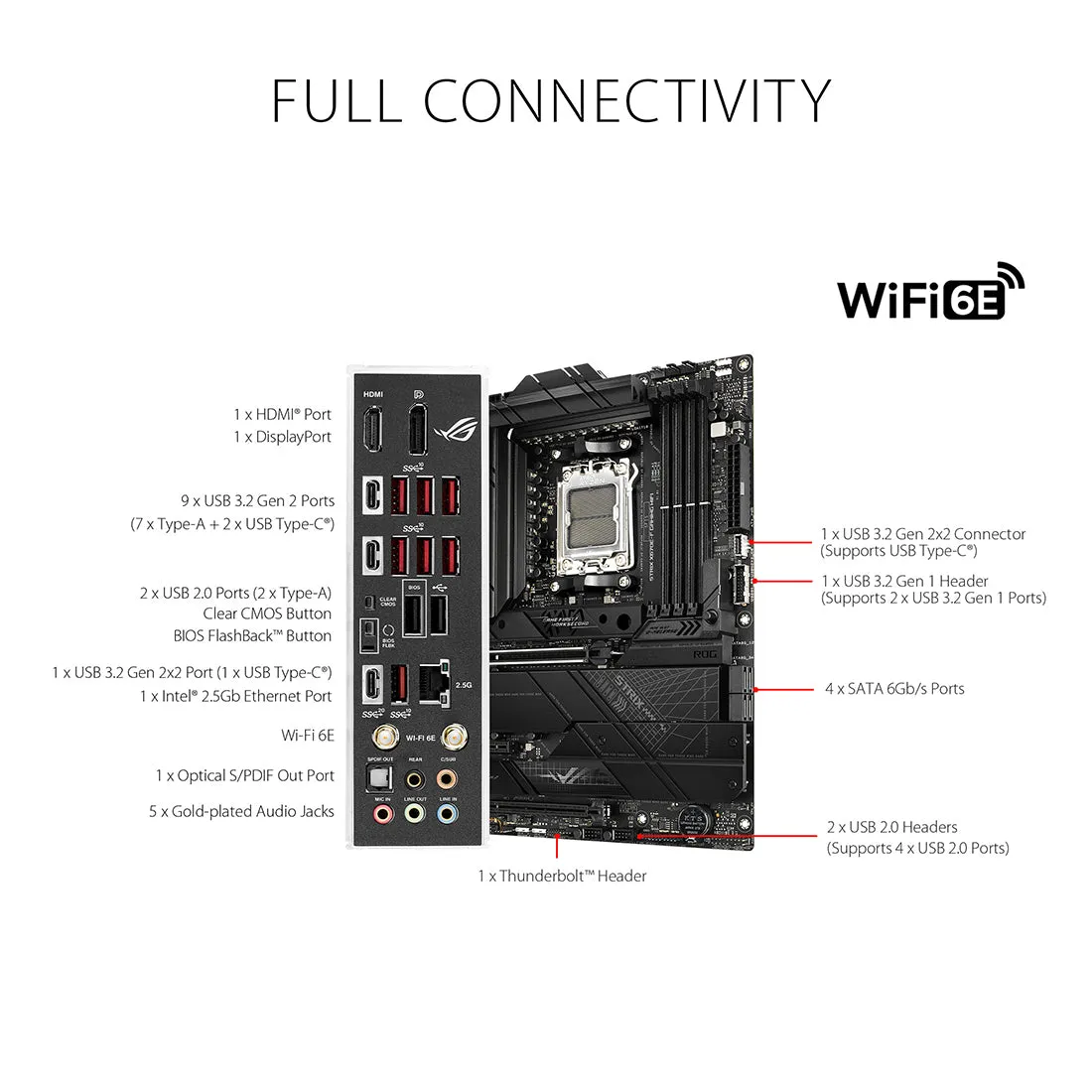

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C) 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C) 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |

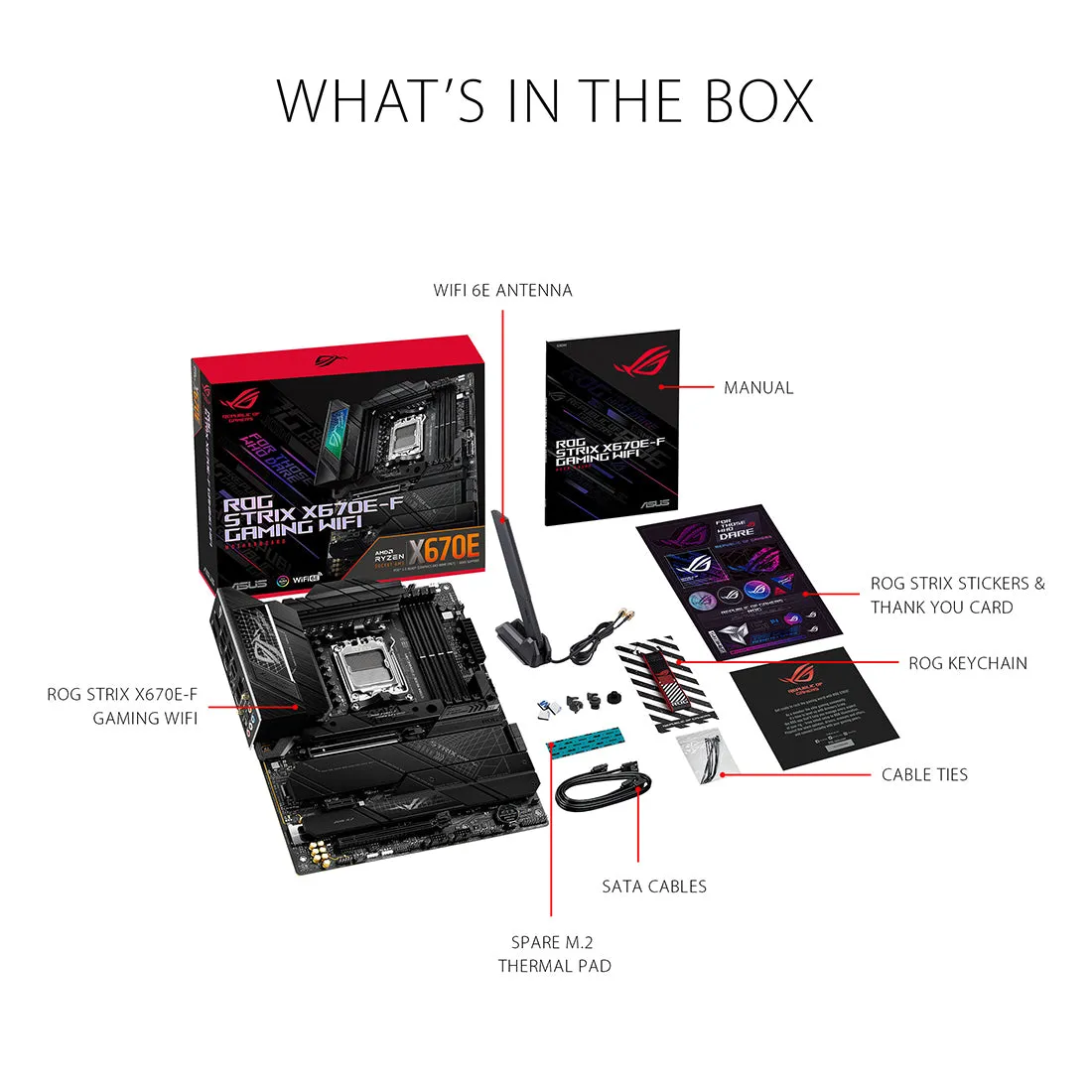

| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
