- The ASUS motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
- The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400 MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 5.0 video cards making it future proof.
- Enjoy extended connectivity on ASUS X670E motherboard with the next-gen technology of WIFI6E, PCIe 5.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Five M.2 slots.

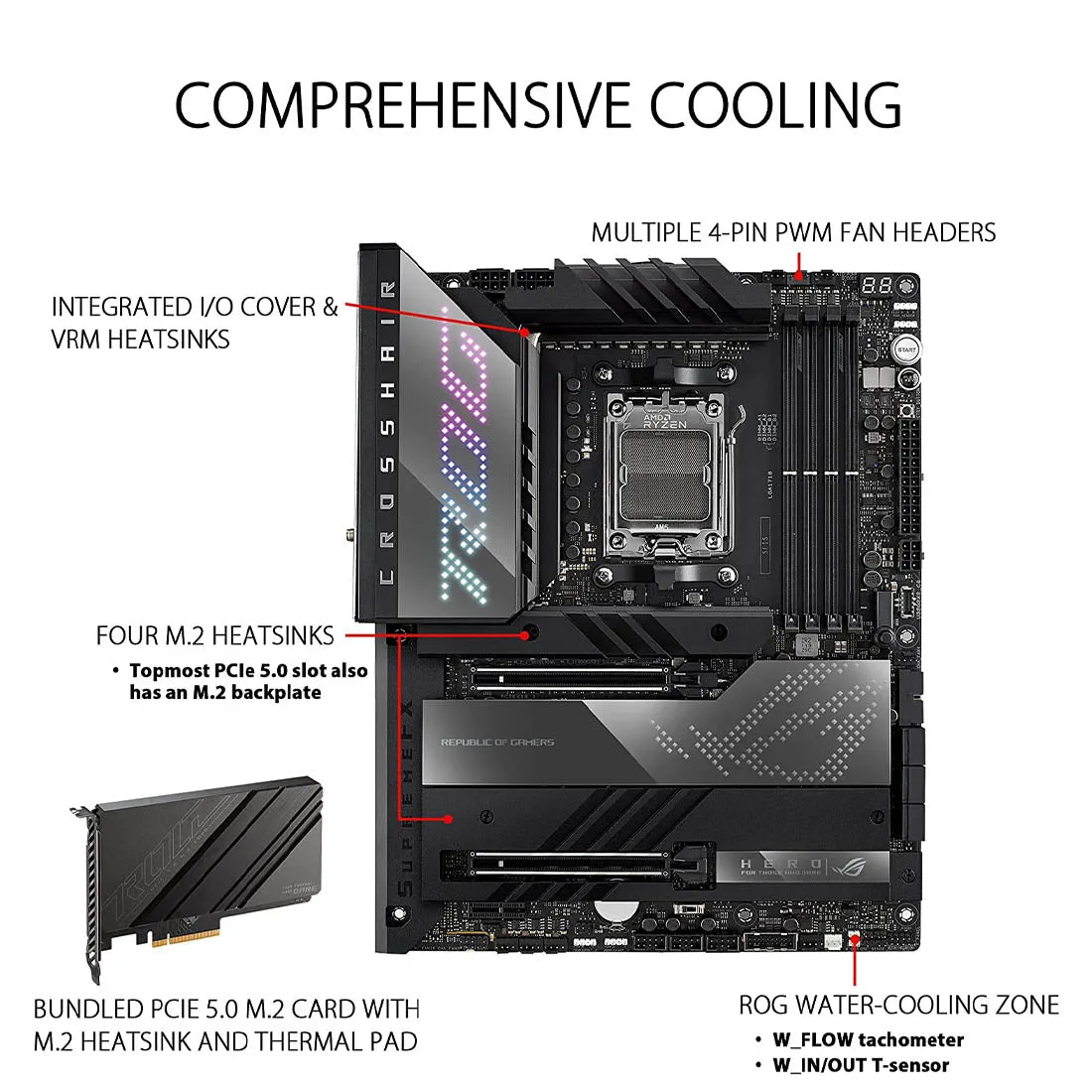

- The motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 Shield, and optimized AI Overclocking
~section~
DDR5 Overclocking
For those who want to fly past stock DDR5 speeds, the ASUS X670E Hero is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

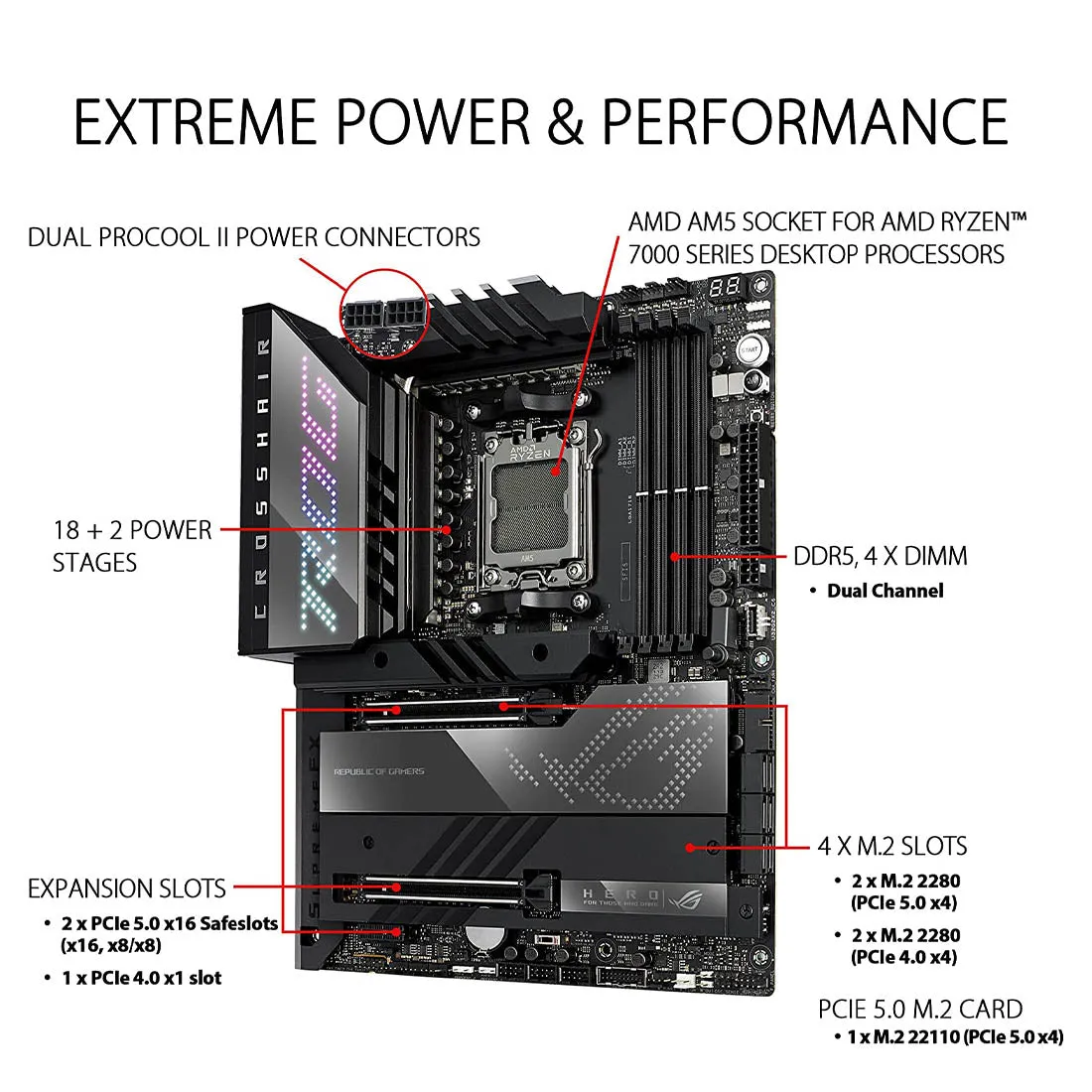

PCIe 5.0
The X670E motherboard have 4x M.2 slots, two of which are PCIe 5.0-ready offering 16 GB/s speeds, while the accompanying pair can deliver still-impressive 8 GB/s transfers through their PCIe 4.0 interfaces.
WIFI 6E
Onboard WIFI 6E technology takes advantage of newly available spectrum in the 6GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
USB-C Ports
Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use.
PCIe 5.0 M.2 Card
For even more storage, the bundled PCIe 5.0 M.2 Card features an additional Gen 5-ready slot, and boasts ample surface area for dissipating the heat of a full-size 22110 drive.
BIOS FlashBack
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. Protected with SafeSlot and Q-Release button.
Define Your Build
Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support and the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors.
USB 3.2 Gen 2x2
USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4 technology that can quickly charge devices up to 60W.
Graphics Card Holder
Featuring a magnetic base and adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.

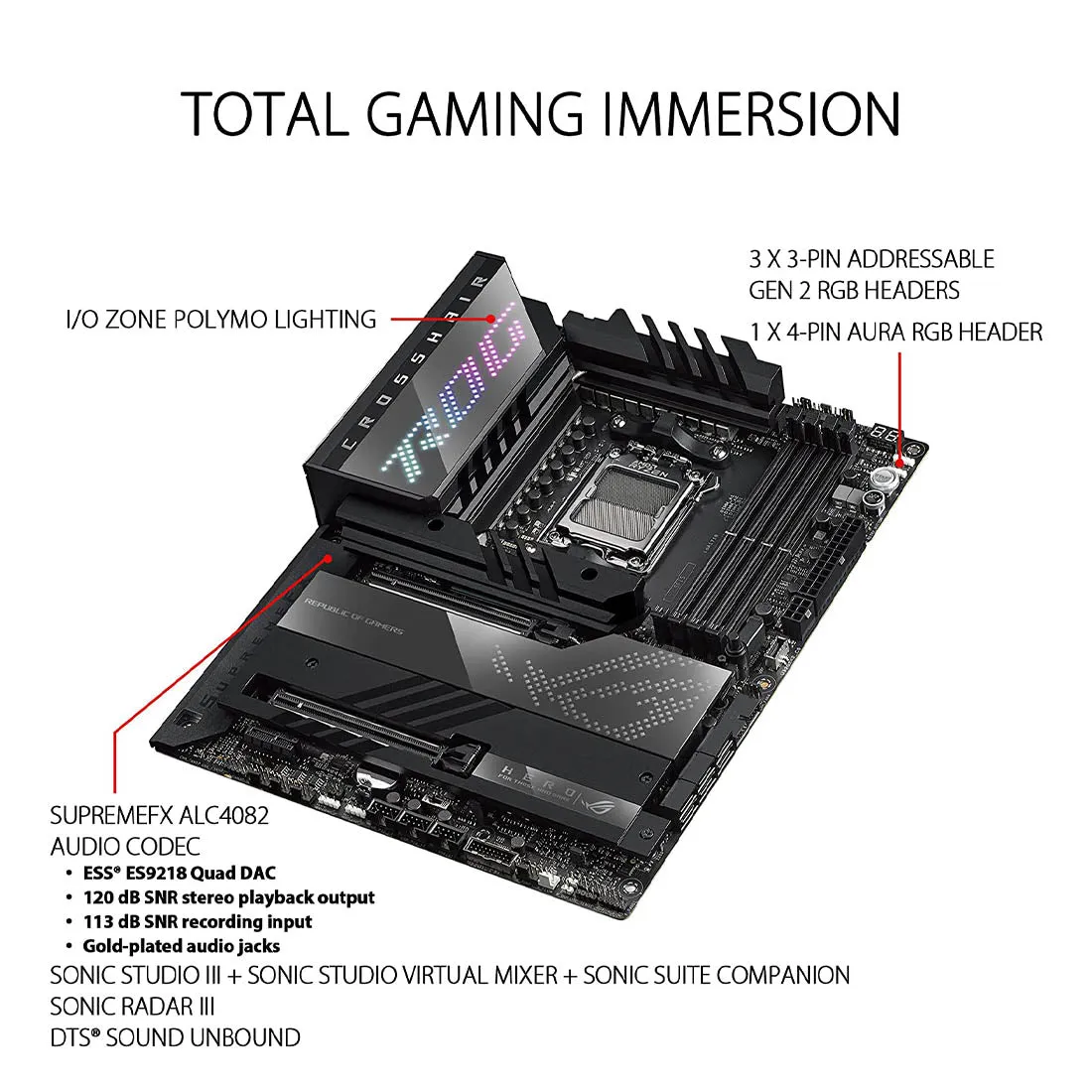

SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery.
~section~
| Model | ASUS ROG CROSSHAIR Hero Motherboard |
| Part Number | 90MB1BC0-M0EAY |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor. |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 2 x USB4 ports support USB Type-C display output 1 x HDMI |
| Expansion Slot | 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s) 1 x PCIe 4.0 x1 slots |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz/6GHz frequency band Bluetooth v5.3 |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Storage | 2x M.2 Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) 6 x SATA 6Gb/s ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High |
| USB Ports | Rear USB (Total 12 ports) 2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4 ) 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |

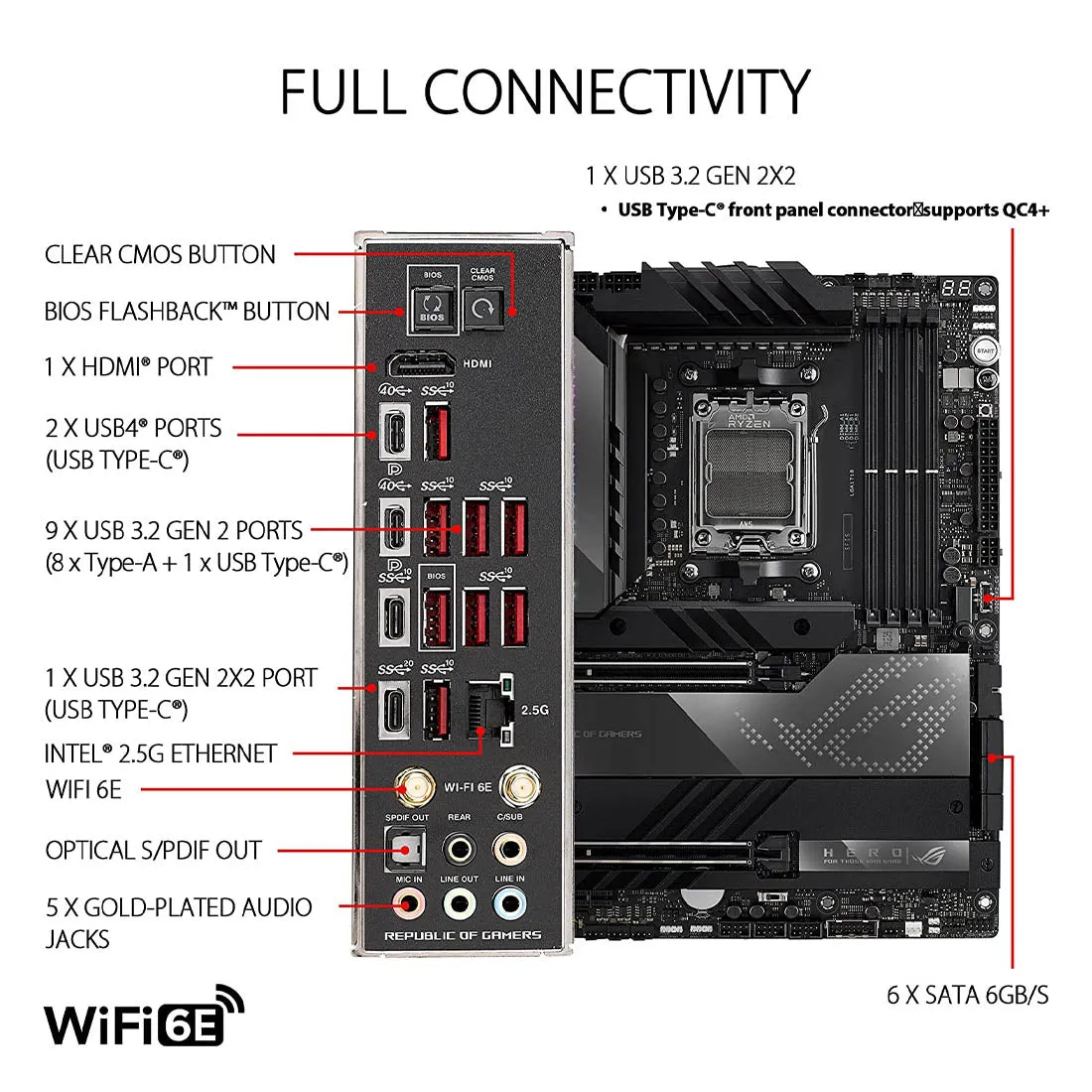

| Back Panel I/O Ports | 2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 9 x USB 3.2 Gen 2 ports(8 x Type-A 1 x Type-C) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connector 1 x 6-pinPCIe Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |

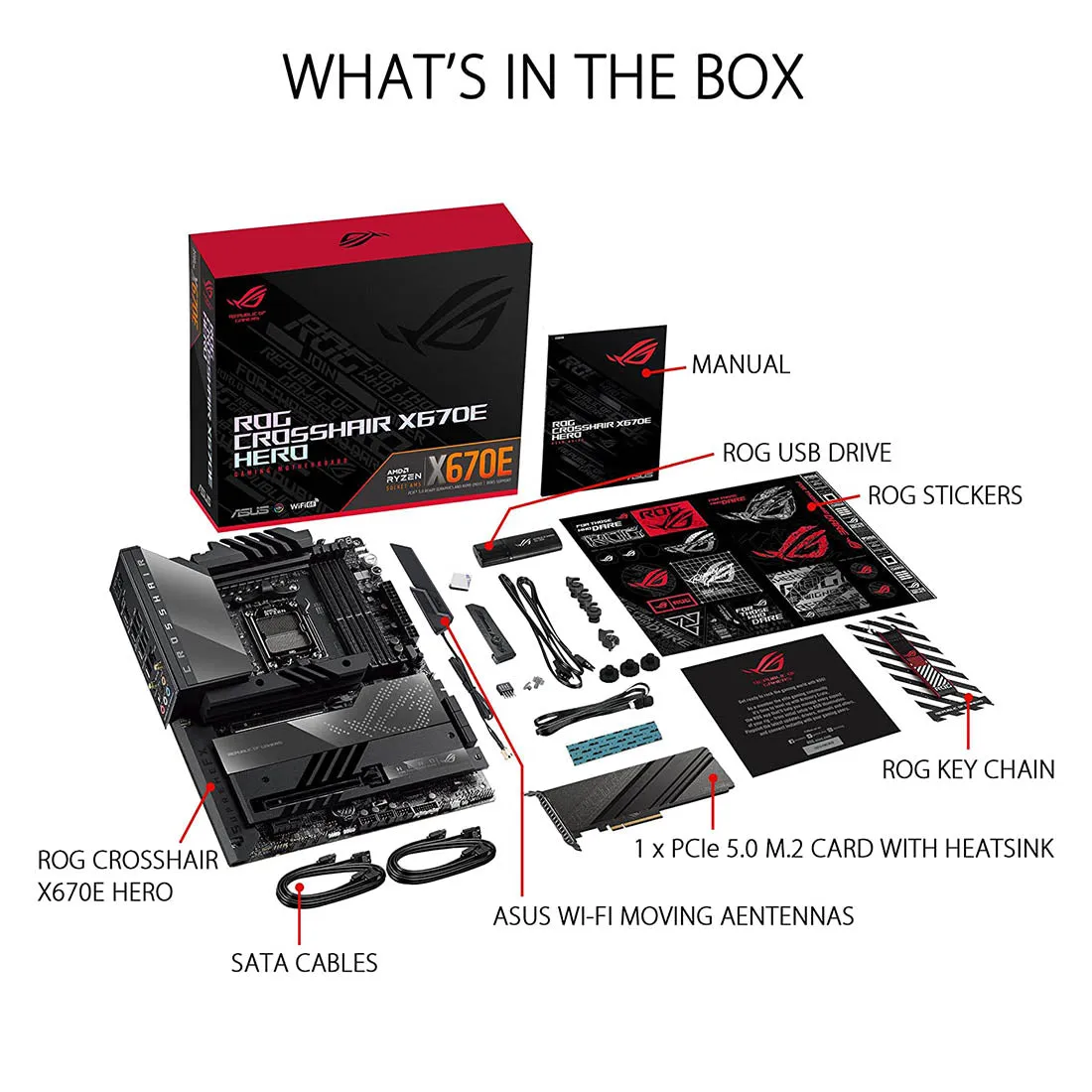

| Accessories | Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables PCIe 5.0 M.2 Card with Heatsink 1 x PCIe 5.0 M.2 Card with heatsink 1 x M.2 screw package for PCIe 5.0 M.2 Card Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 3 x Rubber Packages for M.2 backplate 1 x Q-connector 1 x M.2 Q-Latch package 3 x M.2 Q-Latch packages for M.2 backplate 1 x ROG Graphics card holder 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | ATX Form Factor 30.5cm x 24.4cm |
| Warranty | 3 Years of Brand Warranty |
