- ASUS ROG CROSSHAIR VIII Extreme Gaming motherboard is designed to support the latest AMD AM4 Ryzen 3rd Gen processors with DDR4 memory up to 128GB with Dual Channel Architecture.
- The ASUS X570 motherboard is PCIe 4.0 Ready supporting up to 128GB DDR4 5100 MHz (OC) of memory. The DDR4 ASUS motherboard support next gen PCIe 4.0 M.2 slots making it future proof.
- Enjoy extended connectivity with USB 3.2 Gen 2x2 front-panel with PD3.0 60W fast charging, five M.2 slots, dual Thunderbolt 4, onboard WIFI 6E, Marvell AQtion 10 Gb Ethernet, Intel 2.5 Gb Ethernet and ASUS LANGuard.
- Features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink and Chassis fan support.
- The ASUS motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like Safeslot, ProCool II, BIOS FlashBack button and Clear CMOS button.
~section~

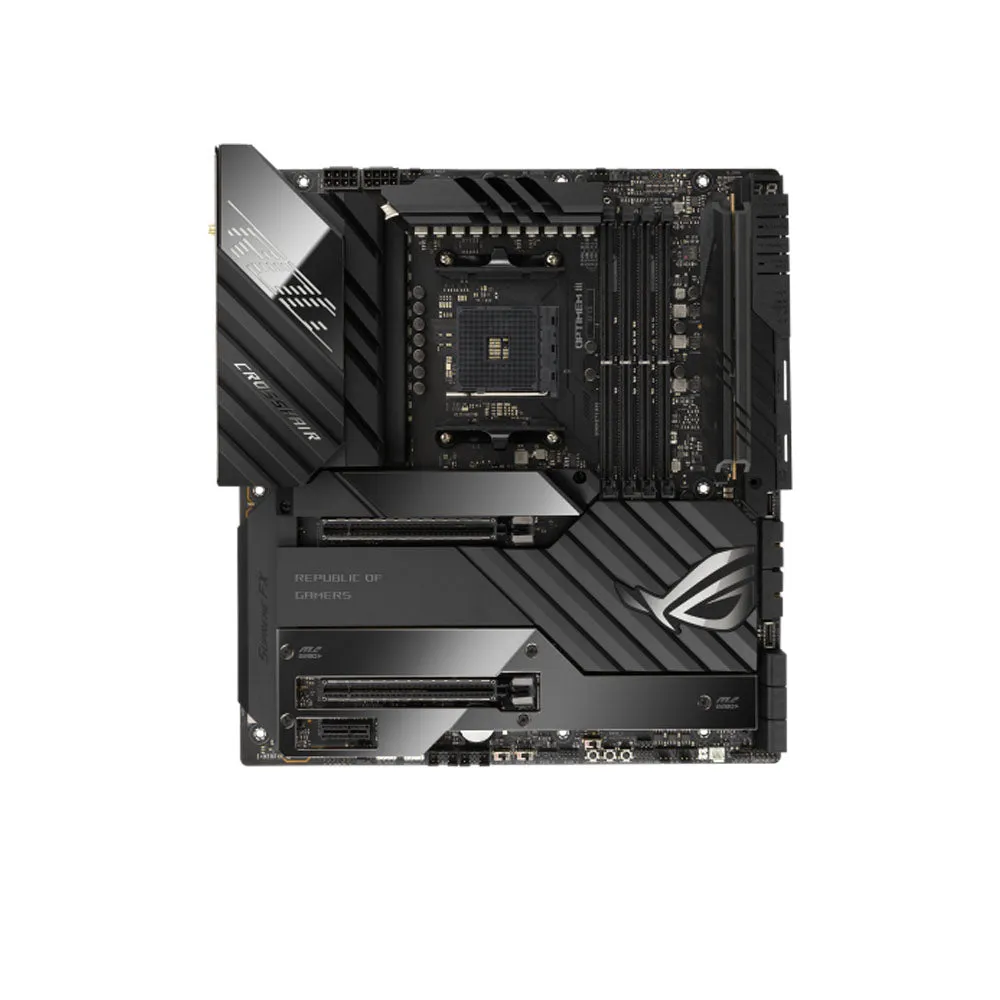

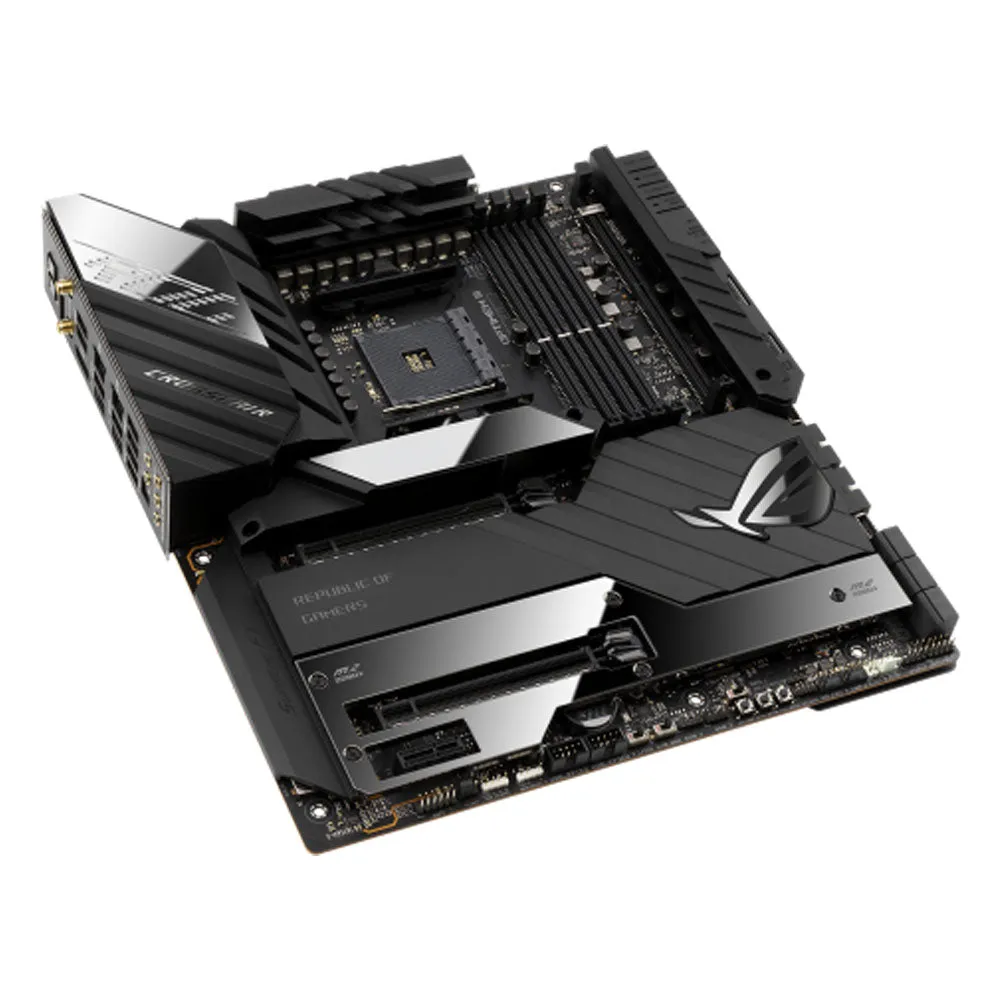

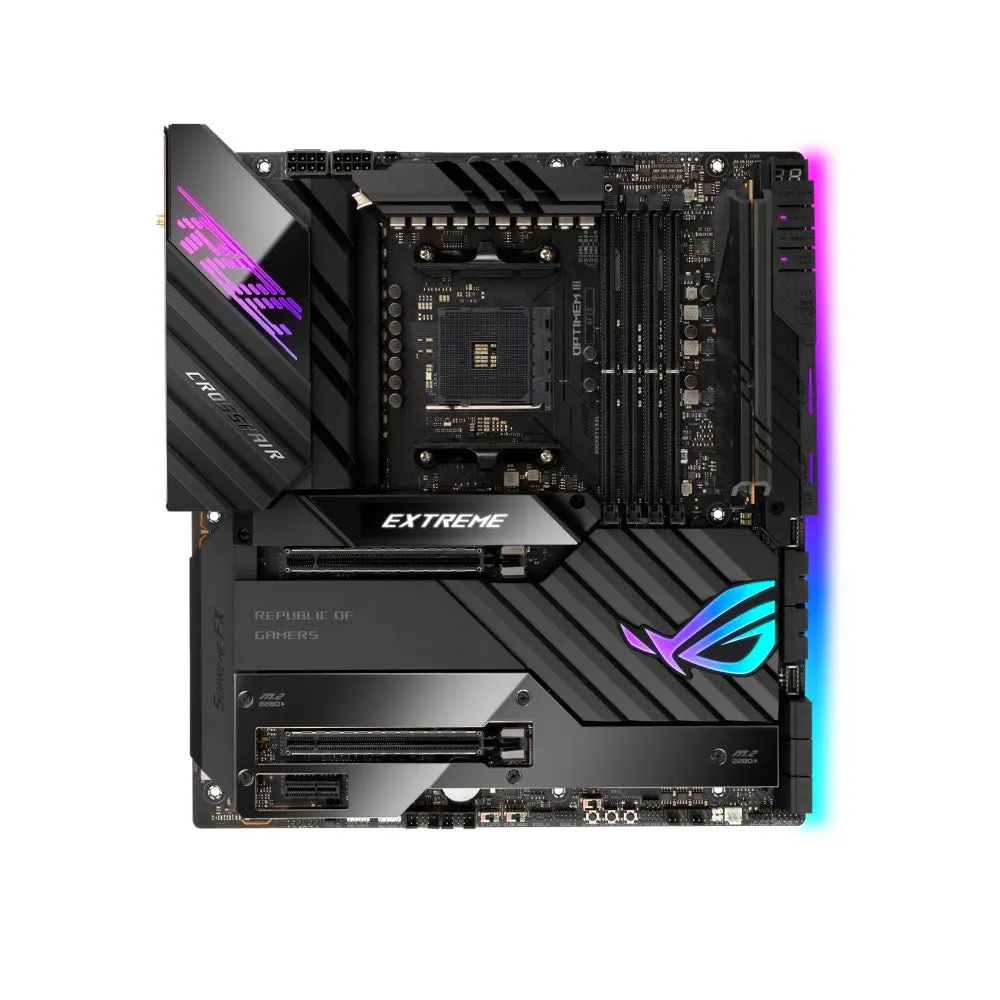

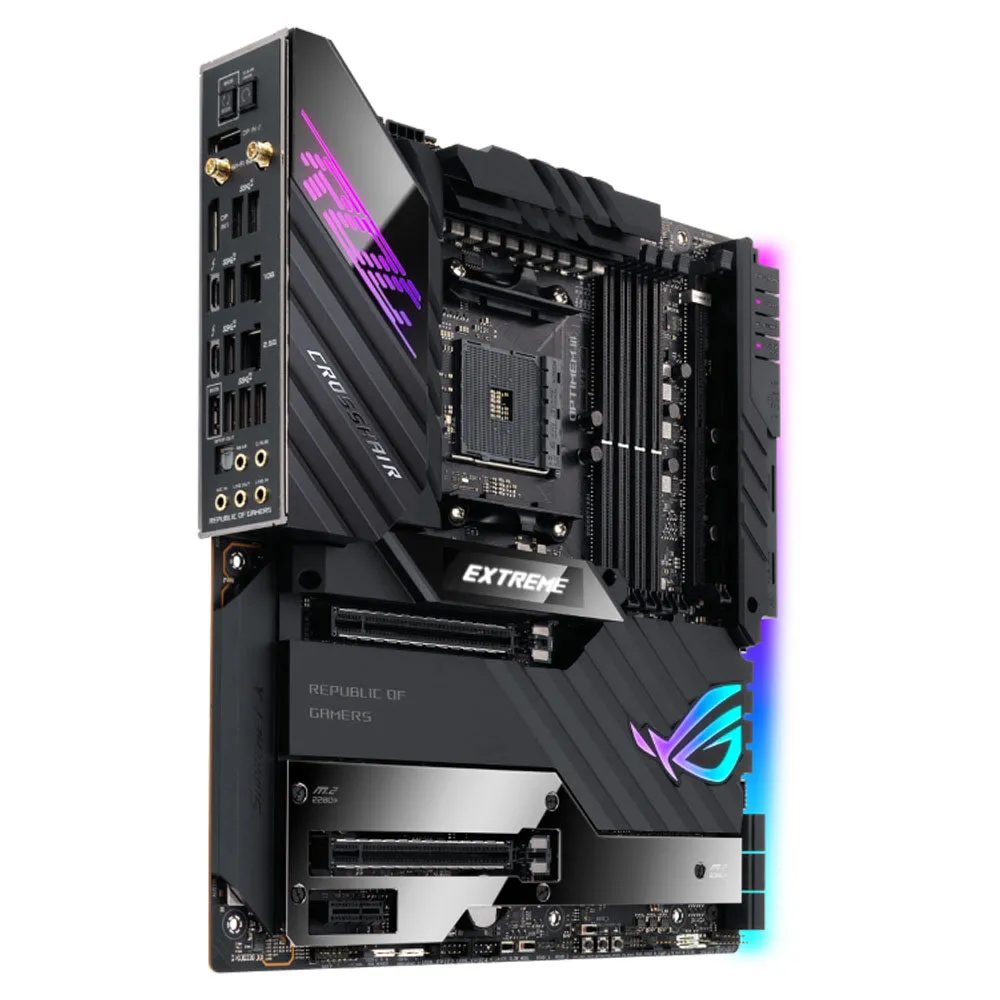

ROG Crosshair VIII Extreme
The ROG Crosshair VIII Extreme combines the best elements of the renowned ROG X570 motherboard lineup into a single beastly package amped to elevate Ryzen-based builds beyond all boundaries.
DDR4 Performance
The ROG Crosshair VIII Extreme supports up to 128 GB DDR4 memory across four slots. OptiMem III technology improve signal integrity and mitigate noise, allows memory kits to run at lower latencies and reduced voltages.
PCIe 4.0-Ready
The ROG Crosshair VIII Extreme provides 5 M.2 slots,offer PCIe 4.0 support for the latest GPUs and high-speed SSDs. The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface.
Teamed Power Architecture
The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance which lead to becoming universally accepted in the industry.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing circuits that are susceptible to noise and have to tap voltage rails from a location that isn’t ideal for accurate monitoring. The ROG Crosshair VIII Extreme features a differential-sensing circuit that rejects noise and takes readings directly from the CPU and the end point of major voltage rails.
WiFi 6E
Onboard WiFi 6E technology takes advantage of the available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands networking speeds.
10 Gbps and 2.5 Gb Ethernet
10 Gbps onboard Ethernet provides up to 10 times the bandwidth of standard gigabit Ethernet,Onboard 2.5 Gb Ethernet gives wired connections a boost, providing up to a 250% improvement.
Two Onboard Thunderbolt 4 USB-C Ports
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
~section~
| Model | ROG Crosshair VIII Extreme |
| CPU Socket | AMD AM4 Socket |
| CPU Support | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors. |
| Chipset | AMD X570 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 AMD Ryzen 5000 and 3000 Series Desktop Processors 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz,un-buffered memory AMD Ryzen 5000 G-Series and 4000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/ 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/ 3000/2933/2800/2666/2400/2133 MHz,Unbuffered Memory AMD Ryzen 2000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/ 2933/2800/2666/2400/2133 MHz, Unbuffered Memory AMD Ryzen 3000 G-Series and 2000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, Unbuffered Memory Dual Channel Memory Architecture OptiMem III |
| Graphics | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs. |
| MultiGPU support | Supports NVIDIA 2Way SLI Technology |
| Expansion Slot | AMD Ryzen 5000 and 3000 Series Desktop Processors 2 x PCIe 4.0 x16 SafeSlots (support x16 and x8/x8) AMD Ryzen 5000 G-Series, 4000 G-Series and 2000 series Desktop Processors 2 x PCIe 3.0 x16 SafeSlots (support x16 and x8/x8) AMD Ryzen 3000 G-Series and 2000 G-Series Desktop Processors 1 x PCIe 3.0 x16 SafeSlot (supports x8) AMD X570 Chipset 1 x PCIe 3.0 x1 |
| Ethernet | 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet 1 x Intel I225-V 2.5Gb Ethernet 1 x Marvell AQtion AQC113CS 10Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth | Wi-Fi 6E - 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) - Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
| Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 5000 and 3000 Series Desktop Processors - M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 and SATA modes) - M.2_2/3 slot (Key M),type 2242/2260/2280, (supports PCIe 4.0 x4 mode) AMD Ryzen 5000 G-Series. 4000 G-Series, 2000 Series Desktop Processors - M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 and SATA modes) - M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode) AMD Ryzen 3000 G-Series and 2000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 and SATA modes) AMD X570 chipset DIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) 6 x SATA 6Gb/s ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |
| USB Ports | Rear USB: Total 10 ports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series and 3000 Series Desktop Processors 4 x USB 3.2 Gen 2 ports (4 x Type-A) AMD Ryzen 3000 G-Series, 2000 Series and 2000 G-Series Desktop Processors 4 x USB 3.2 Gen 1 ports (4 x Type-A) AMD X570 chipset 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 ports (4 x Type-A) Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C, PD 3.0 up to DC 5V/3A 60W fast charging technology) 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |

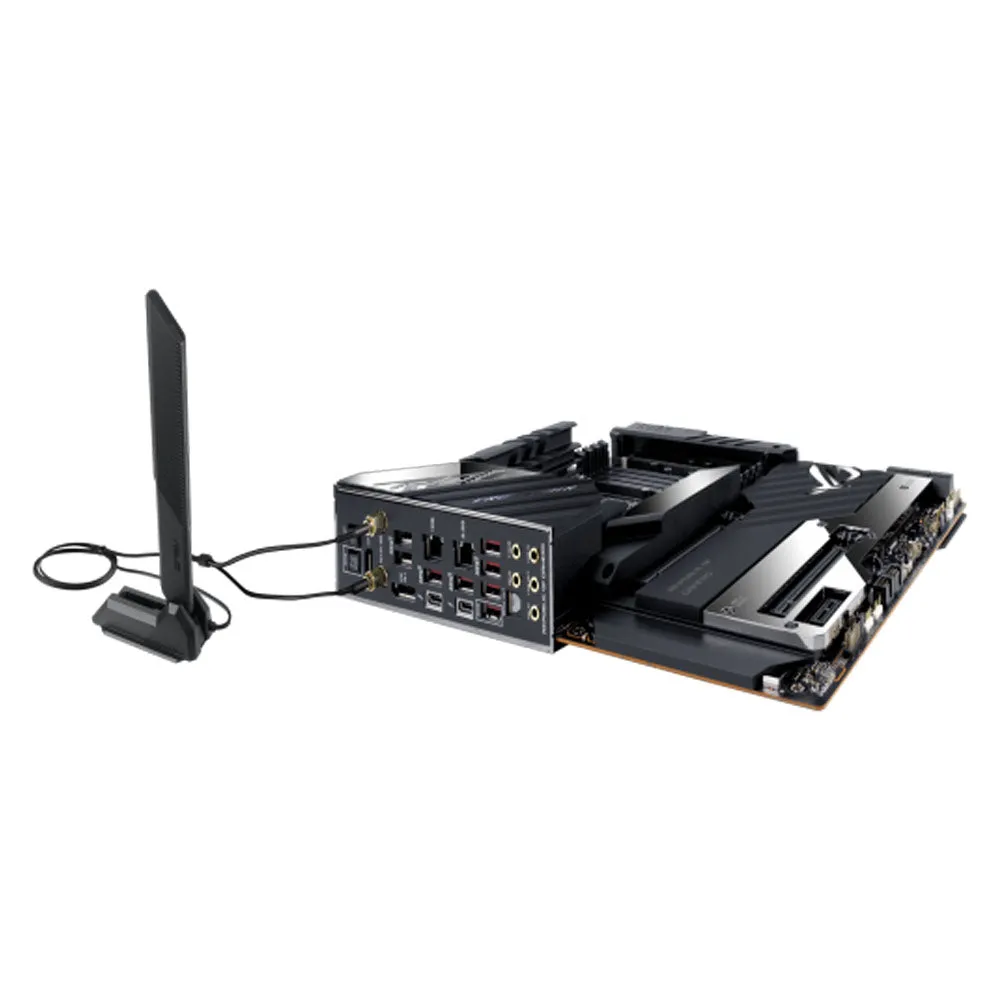

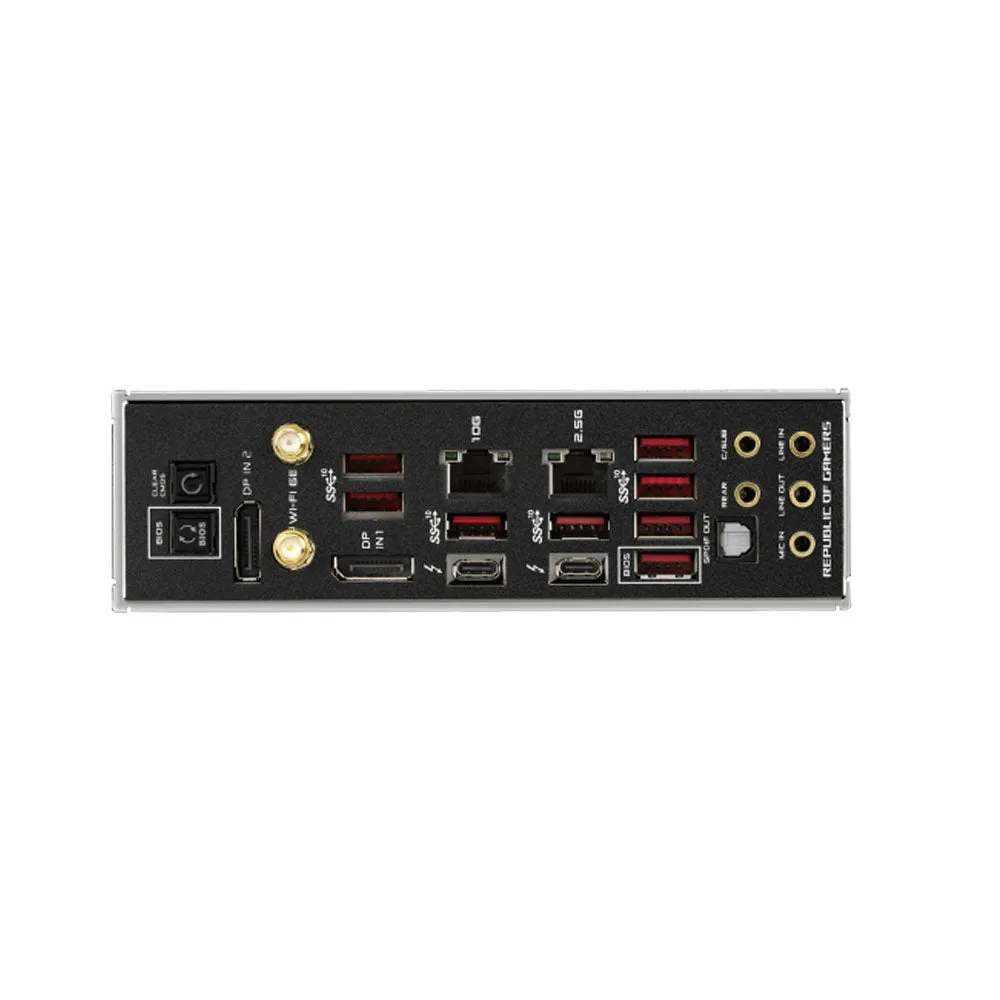

| Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C port(s) 2 x DisplayPort IN ports for Thunderbolt 4 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 1 x Marvell AQtion AQC113CS 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |

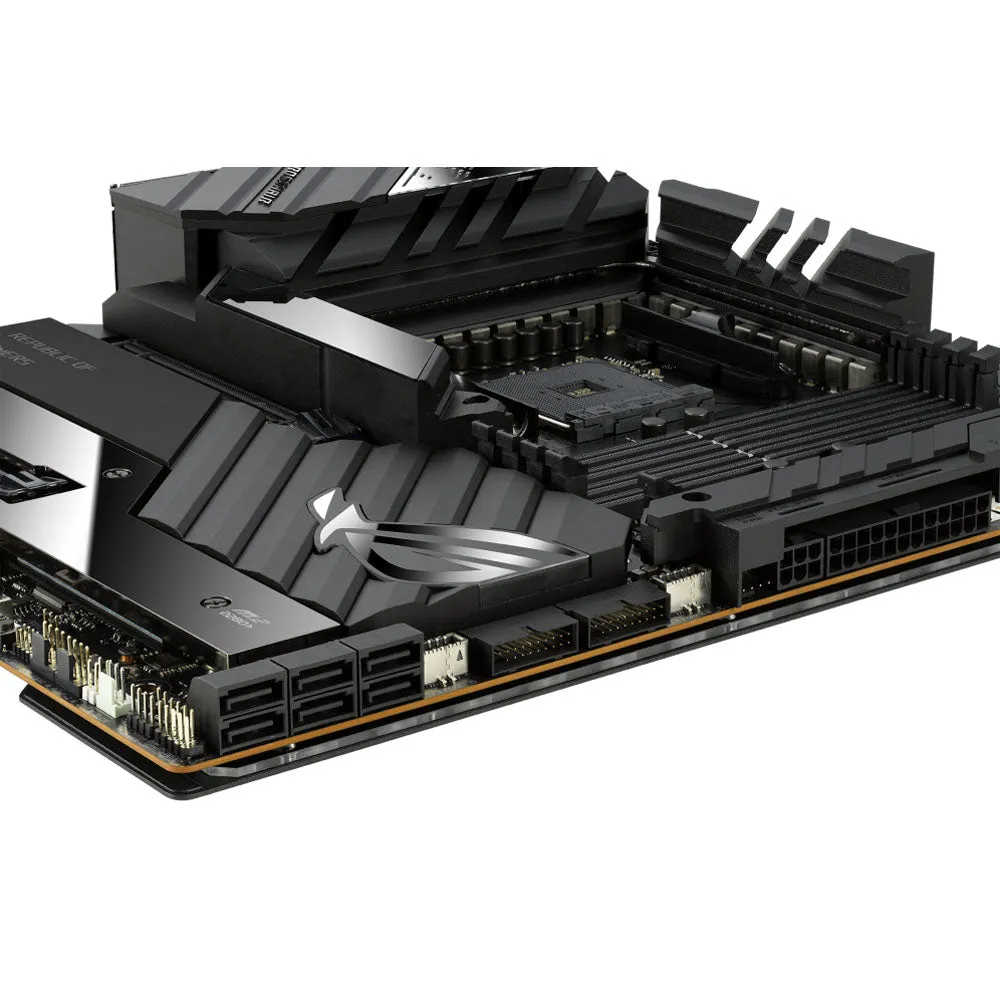

| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connector 1 x 6-pin PCIe Graphics Card/ PD 3.0 connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C, PD 3.0 up tp DC 5V/3A 60W fast charging technology) 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 6 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD header 1 x V_Latch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |

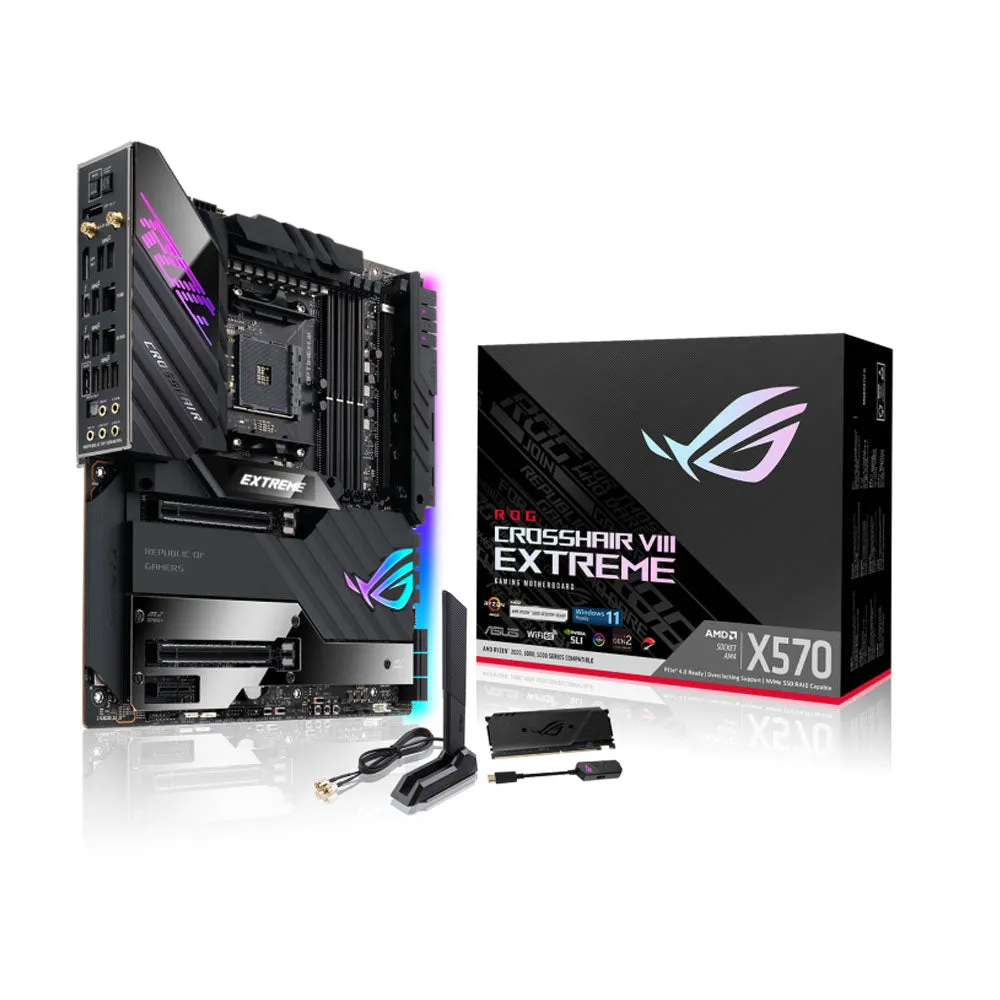

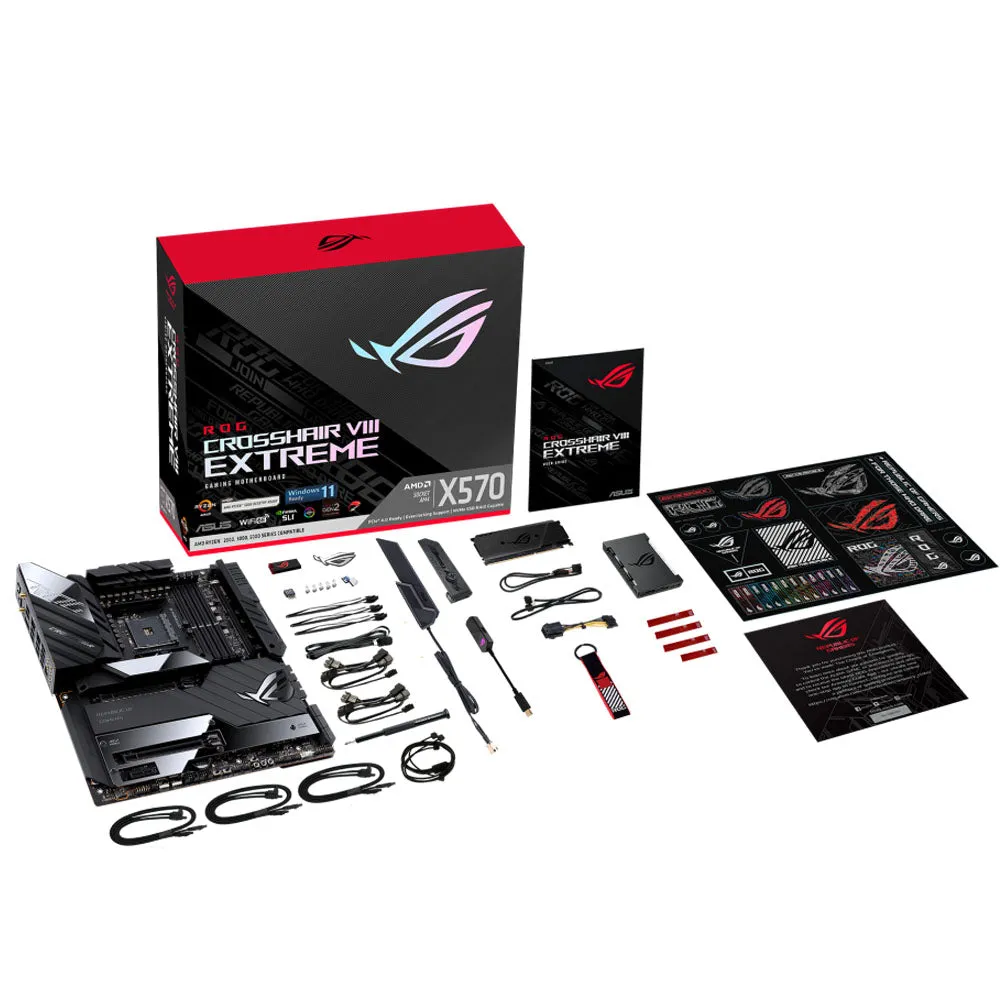

| Accessories | Cables 1 x 1-to-3 ARGB splitter cable 2 x 1-to-4 fan splitter cable 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller User´s manual 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual 1 x Extension cable for Addressable LED ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG CLAVIS DAC 1 x ROG CLAVIS DAC 1 x CLAVIS DAC manual Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG key chain 1 x ROG Graphics card holder 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User manual |
| Form Factor | Extended ATX |
| Dimensions | 30.5 cm x 27.7 cm |
| Operating System | Windows 11 ready Windows 10 64bit |
| Warranty | 3 Years of Brand Warranty |
