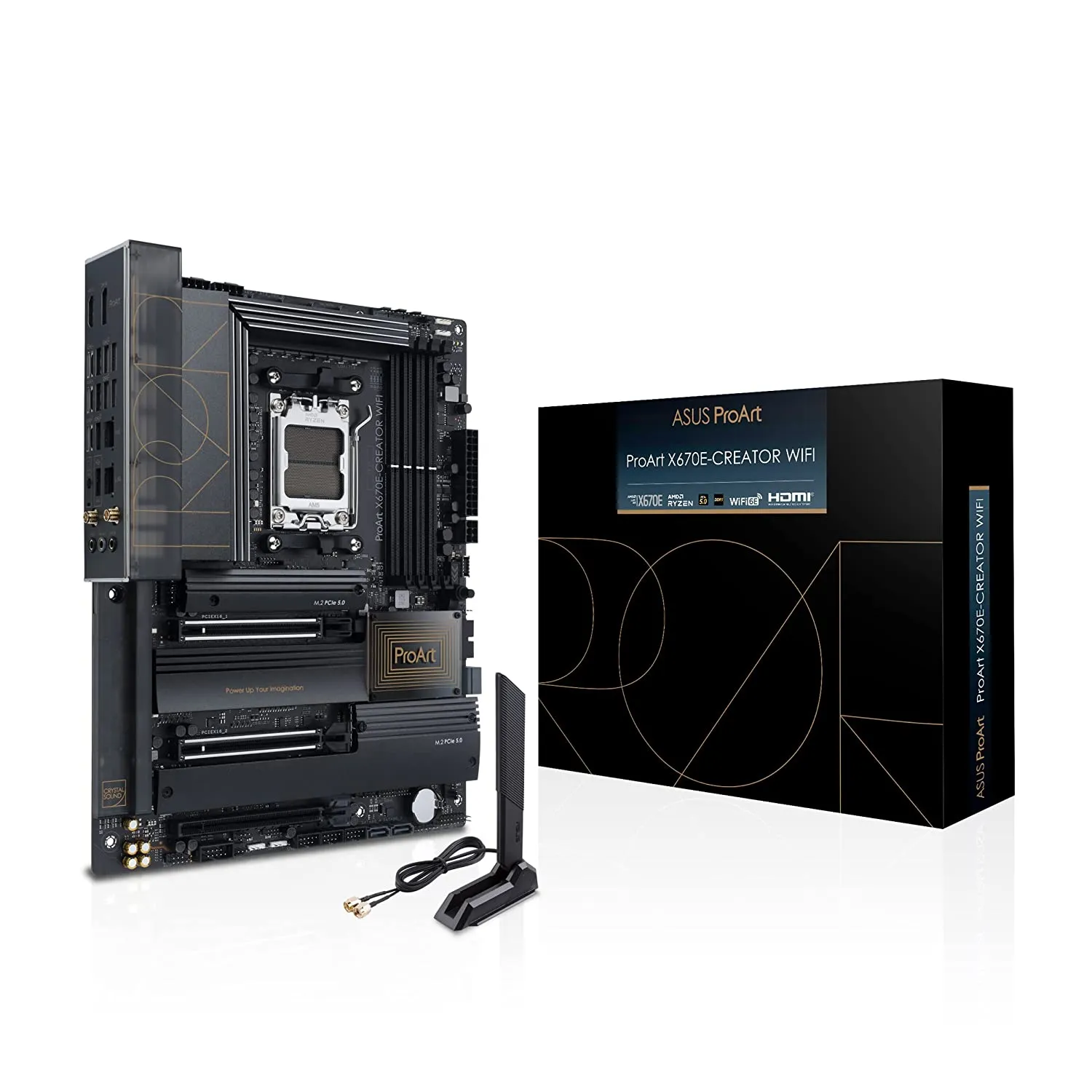

- ASUS ProArt X670E-Creator WIFI motherboard is designed to support latest AMD Socket AM5 for Ryzen 7000 series Processors.
- The board is PCIe 5.0 storage Ready supporting up to 128GB DDR5 6400 MHz of memory and EXPO technology to push your gaming experience to its peak. The board support PCIe 5.0 video cards making it future proof.

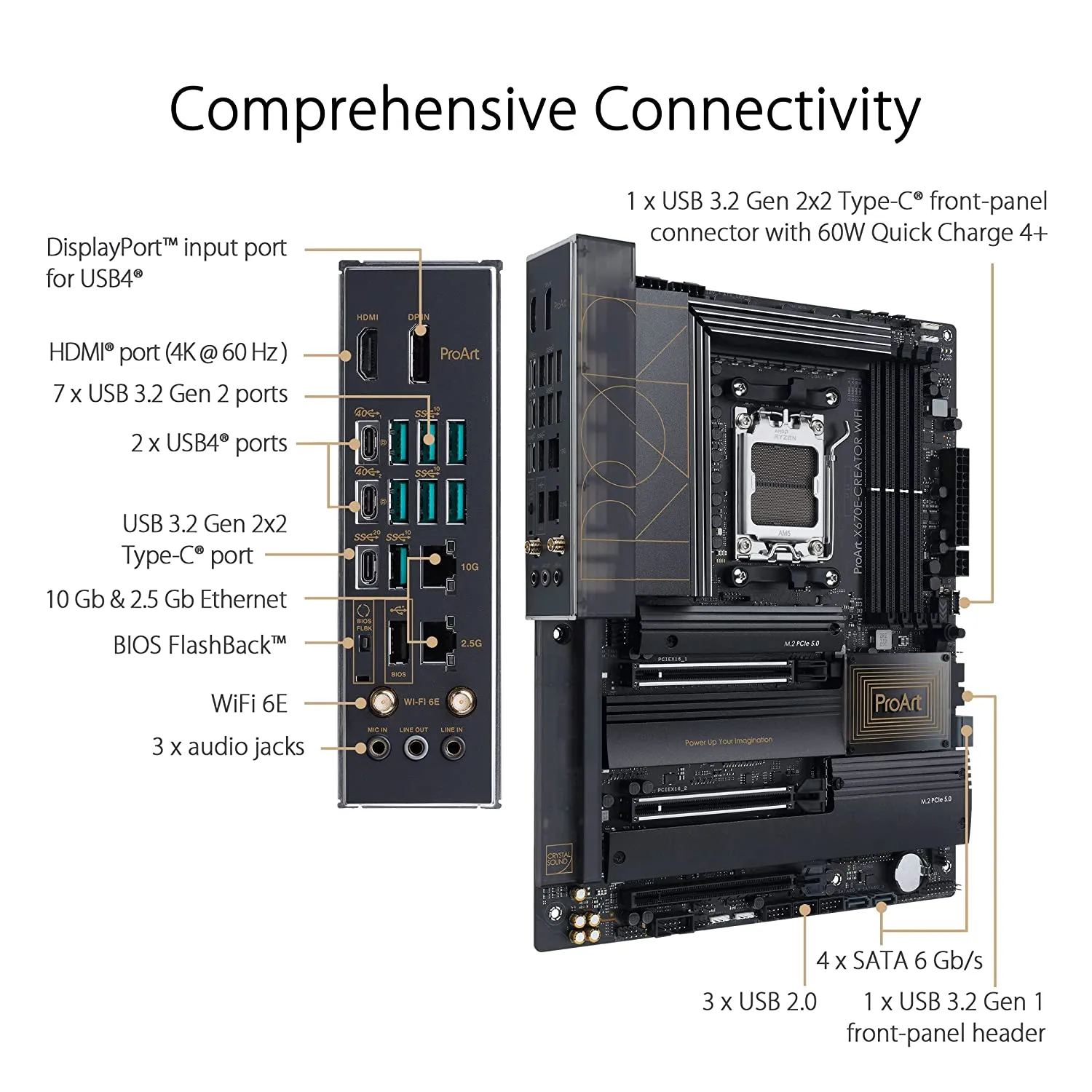

- Enjoy extended connectivity on ASUS X670E motherboard with the next-gen technology of WIFI6E, PCIe 5.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 1 Type-C and Four M.2 slots.

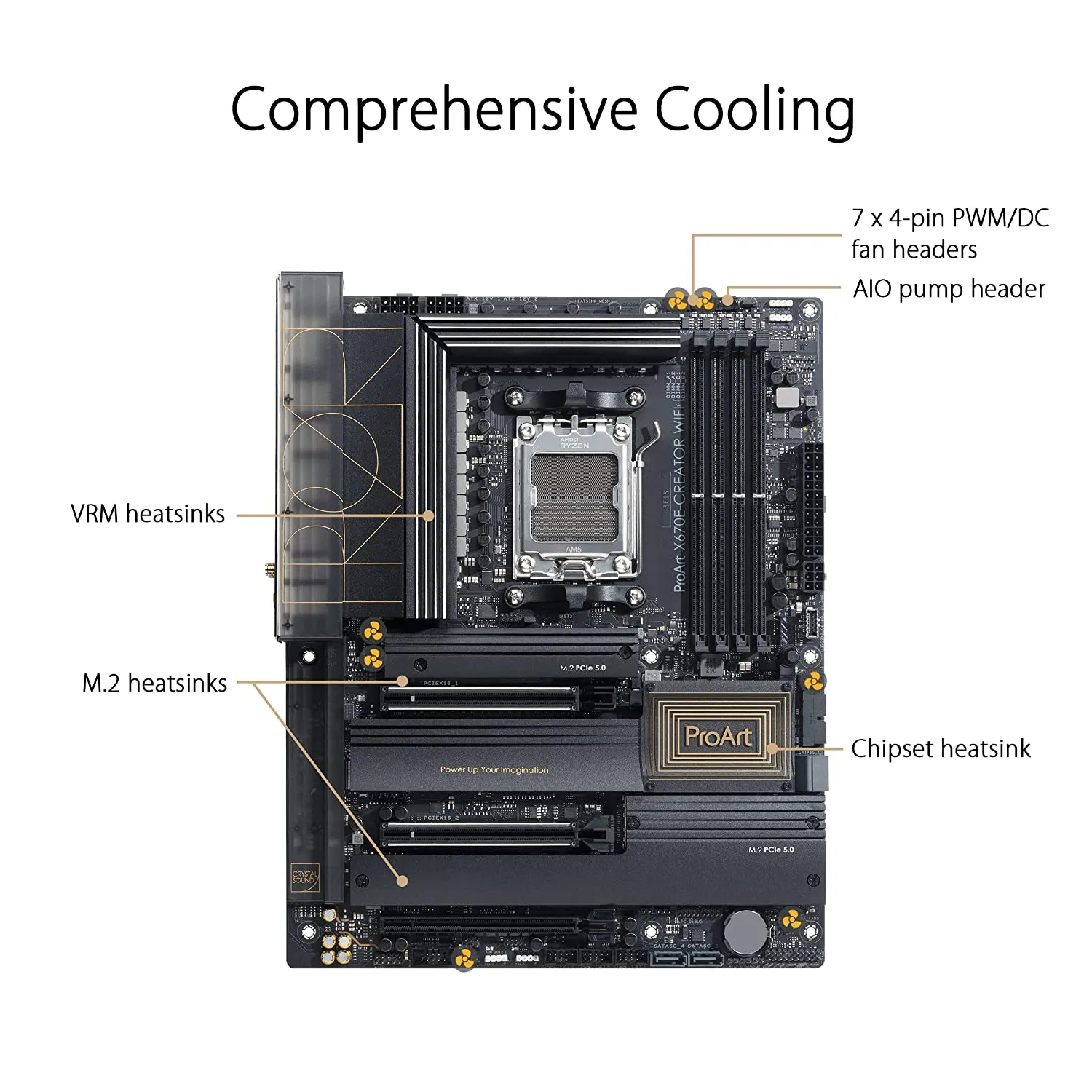

- The X670 motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 Shield, Chipset heatsink and Extended heatsink.
~section~
DDR5 Overclocking
For those who want to fly past stock DDR5 speeds, the ASUS ProArt X670E Creator is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
Dual USB 4.0
You can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4 port. Also connect your gadgets at 40Gbps.
4x M.2 Slots
The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the rest at 8 GB/s transfers through their PCIe 4.0 interfaces.
WIFI 6E
Onboard WIFI 6E technology takes advantage of newly available spectrum in the 6GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Front USB-C
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4 technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts.
BIOS FlashBack

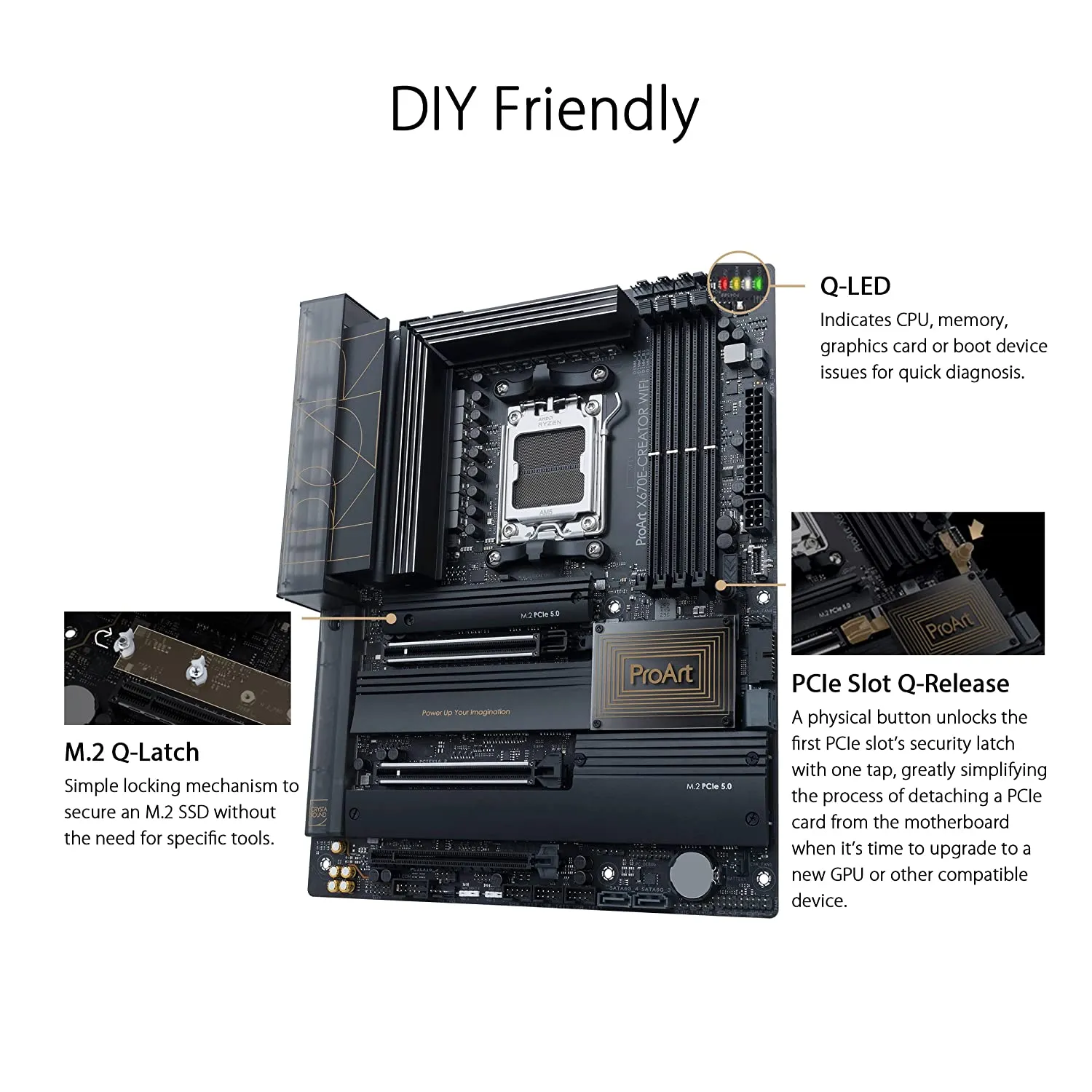

Both of the x16 expansion slots have the PCIe 5.0 treatment wiht speeds up to 64 GB/s for compatible devices. To bear graphics cards, they are also protected with SafeSlot & Q-Release button.
Maximum Productivity

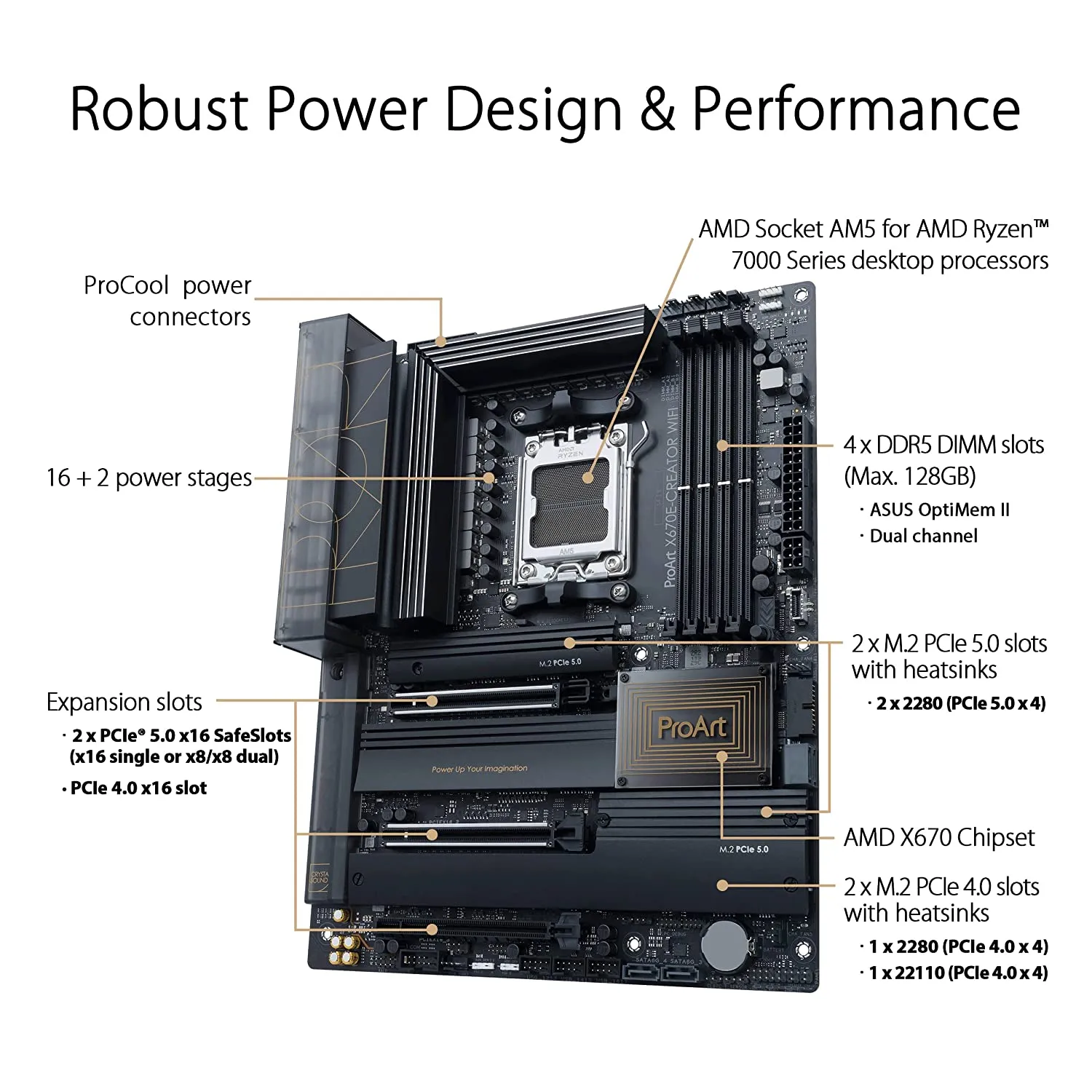

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16 2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
~section~
| Model | ASUS ProArt X670E-Creator WIFI Motherboard |
| Part Number | 90MB1B90-M0EAY0 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processor. |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| On-Board Graphics support | 2 x USB4 ports support USB Type-C display output 1 x HDMI |
| Expansion Slot | 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s) 1 x PCIe 4.0 x1 slots |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz/6GHz frequency band Bluetooth v5.2 |
| Ethernet | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Storage | 2x M.2 Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| USB Ports | Rear USB (Total 11 ports) 2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4 ) 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Back Panel I/O Ports | 2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connectors 1 x 6-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header |

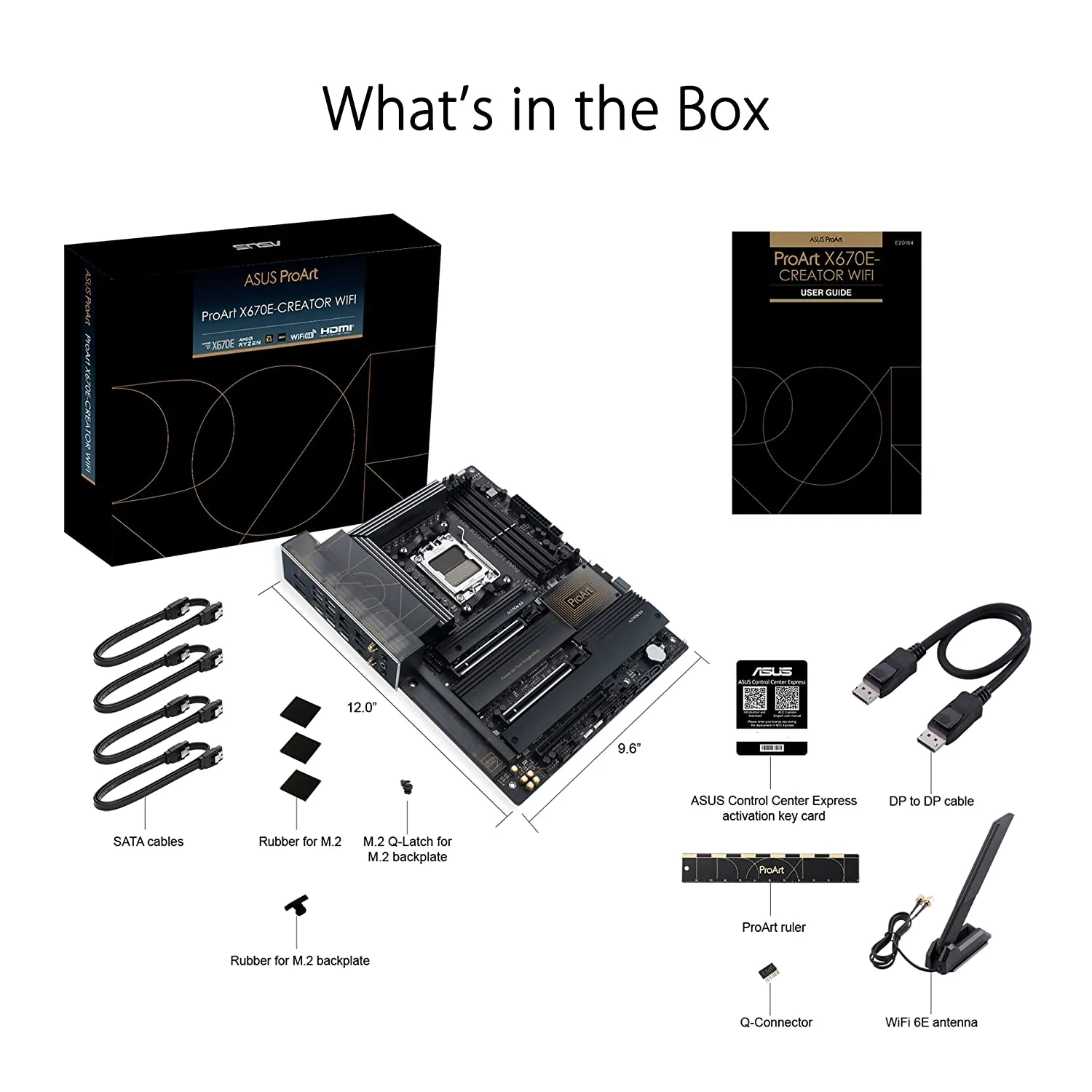

| Accessories | Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package for M.2 backplate 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate 1 x Screw packages for M.2 SSD 1 x ProArt ruler Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | ATX Form Factor 30.5cm x 24.4cm |
| Warranty | 3 Years of Brand Warranty |
