- ASUS Pro WS WRX80E-SAGE SE WIFI Workstation motherboard is designed to support the latest AMD Ryzen Threadripper PRO Series Processors.
- The ASUS WRX80 motherboard is PCIe 4.0 Ready supporting up to 2TB DDR4 3200MHz(OC) of memory. The DDR4 ASUS motherboard support next gen PCIe 4.0 M.2 slots making it future proof.

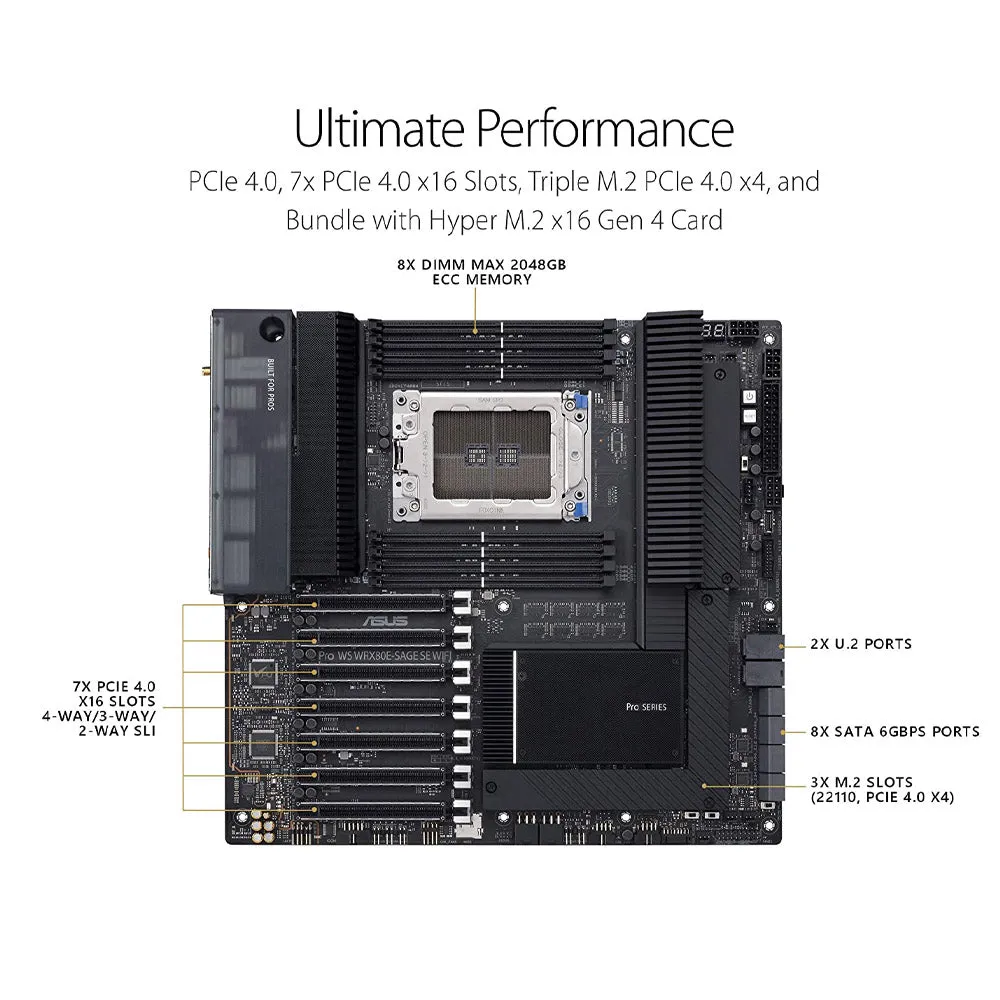

- Enjoy extended connectivity with the next-gen technology of 7 PCIe 4.0/3.0 x16 slots, USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel X550-AT2 dual 10 Gb Ethernet.

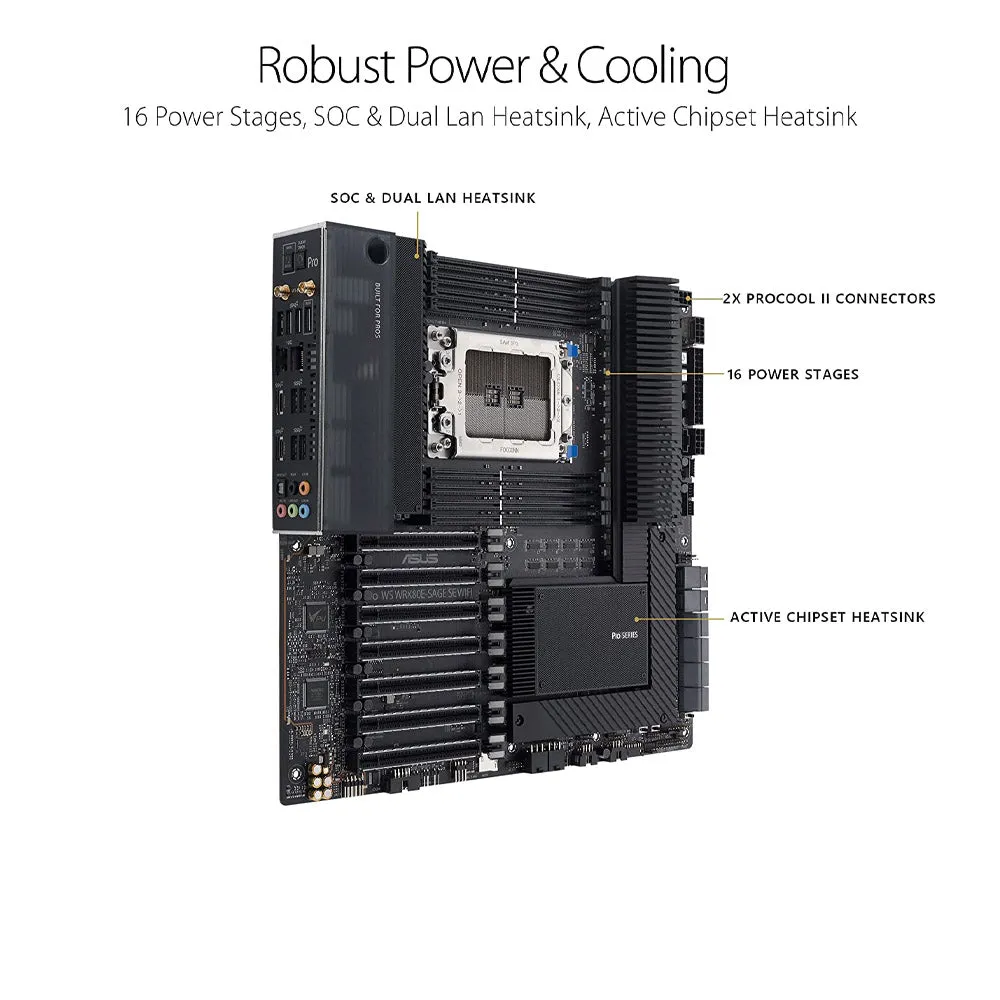

- Features the most comprehensive cooling options ever are SOC and DRAM heatsink which uses a semi-passive fan to draw heat away from the dual 10G LAN. It employs thermal pads design, M.2 heatsink, VRM heatsink and hybrid fan headers
- The ASUS motherboard board comes with DIY Friendly features. The Q-LED display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like BIOS Flashback, Clear CMOS button and SafeSlot.
~section~
Ultimate power for professional productivity
ASUS Pro WS WRX80E-SAGE SE Wi-Fi is engineered to unleash the incredible power of the latest AMD Ryzen Threadripper Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.
ECC memory support
AMD Ryzen Threadripper PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency.
More storage
With NVMe RAID support for Ryzen Threadripper PRO processors, unused CPU PCIe 4.0 lanes can be assigned to storage,allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe 3.0 x4 SSDs.
3 M.2 PCIe 4.0
Pro WS WRX80E-SAGE SE WI-FI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays.

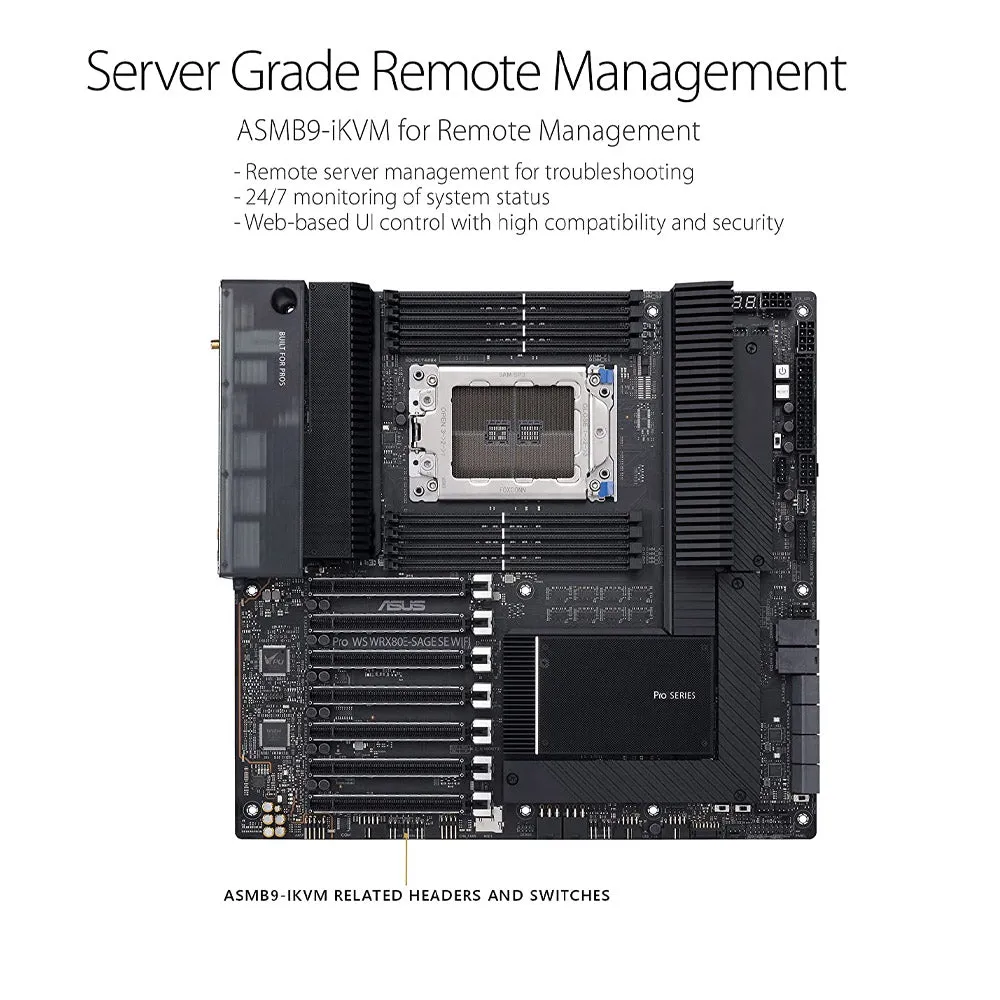

ASMB9-iKVM for remote management
An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses an Intel X550 dual 10 Gigabit Ethernet controller, with one port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware.

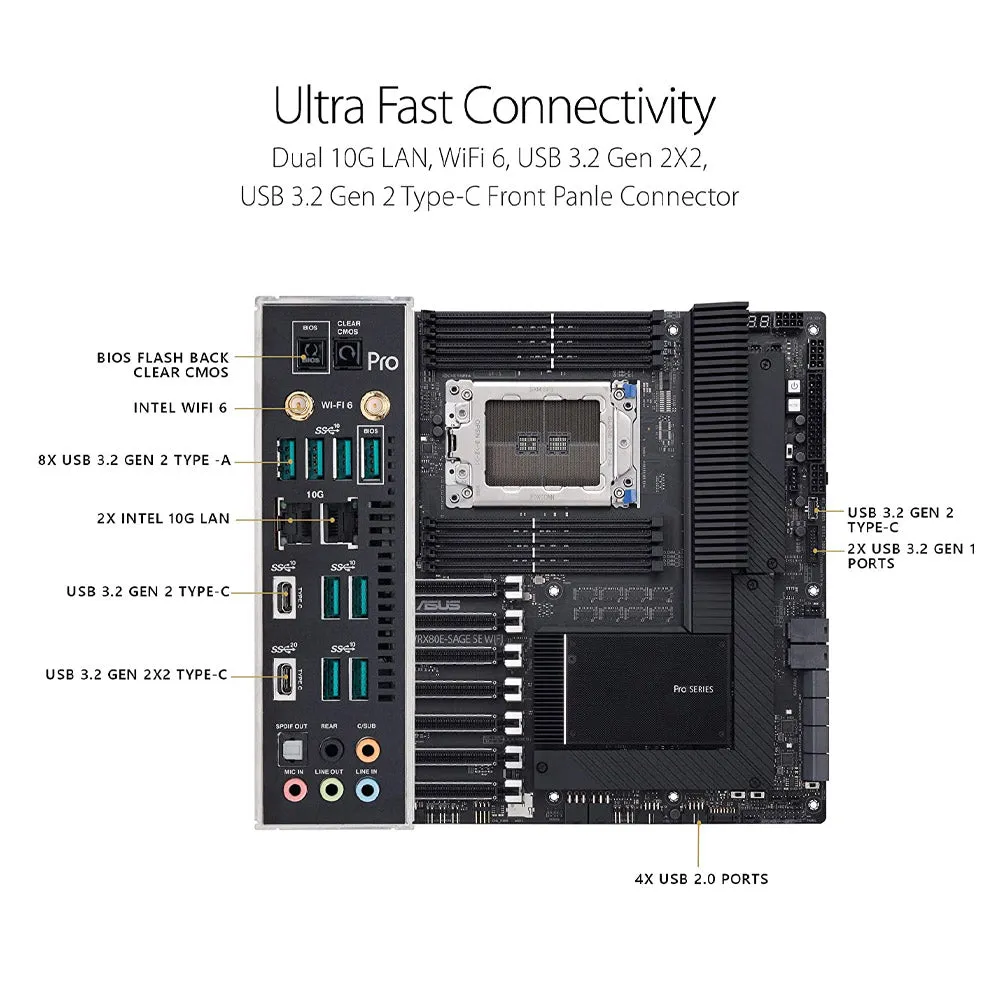

Intel dual 10G Ethernet
Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel X550-AT2 Ethernet controller, Pro WS WRX80E-SAGE SE Wi-Fi makes short work of multi-terabyte transfers from your creativities and provides server-grade connectivity with low-latency.
Intel Wi-Fi 6
The Intel Wi-Fi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation.
USB 3.2 Gen 2 x 2 Type-C
The latest USB standard doubles transfer bandwidth by opening another USB 3.2 Gen 2 lane to achieve its maximum throughput of up to 20 Gbps. In addition to blazingly fast data-transfer speeds, USB 3.2 offers easy connectivity and ultimate flexibility via USB-C ports.
WORK WITH FUN
ASUS Pro WS WRX80E-SAGE motherboard is great to have a workstation with this feature. It makes remote management easier. At the same time, if one wants to transition this workstation to server duties for remote rendering or as another server platform.
~section~
| Model | ASUS Pro WS WRX80E-SAGE ATX Motherboard |
| CPU Socket | AMD sWRX8 Socket |
| CPU Support | AMD Ryzen Threadripper Pro Series Processors |
| Chipset | AMD WRX80 |
| Memory | 8 x DIMM, Max.2TB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory 8 Channel Memory Architecture |
| Expansion Slot | AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s) |
| Ethernet | 1 x Intel X550-AT2 dual 10Gb Ethernet ASUS LAN Guard |
| WIFI/Bluetooth | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth v5.1 |
| Software Features | ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Storage | AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages |
| Audio | - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |
| USB Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A 1 x USB Type-C) 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A 1 x USB Type-C) 1 x ASUS Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O ports | Fan and Cooling related1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin 12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |

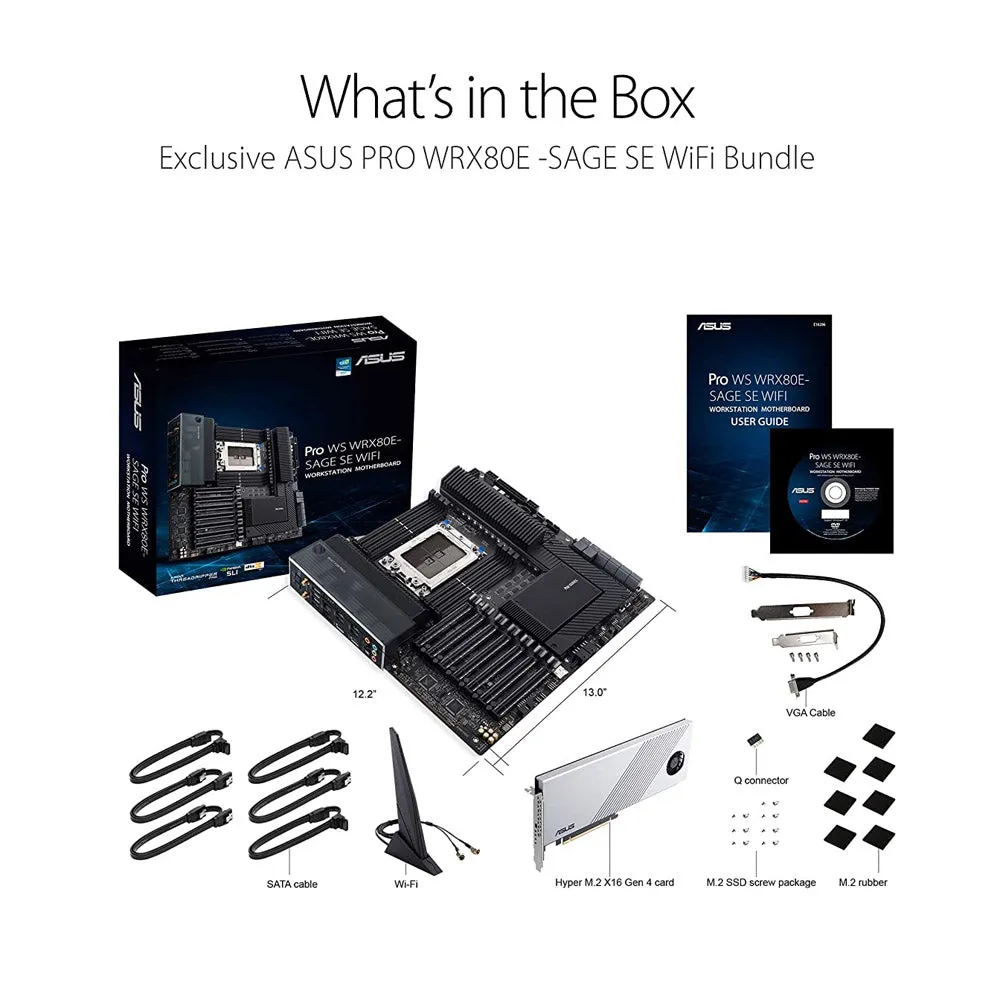

| Accessories | Cables 6 x SATA 6Gb/s cable(s) 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 3 x M.2 Rubber Package(s) 3 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Supporting DVD Documentation 1 x User manual |
| Operating System | Windows 11 Ready Windows 10 64-bit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Extended ATX |
| Dimensions | 30.5 cm x 27.7 cm |
| Warranty | 3 Years of Brand Warranty |
