- ASUS PRIME X299-A II motherboard is designed to support latest Intel Socket LGA 2066 for Intel Core X-Series Processors with Intel X299 chipset.
- The ASUS X299-A II based motherboard is PCIe 3.0 Ready supporting up to 8 slot 256GB DDR4 4266MHz(OC) of memory and Intel Turbo Boost Technology 3.0 to push your experience to its peak.
- Enjoy extended connectivity with the next-gen technology of Intel Optane memory ready, Intel VROC support, dual M.2 support, and USB 3.2 Gen Type-C.

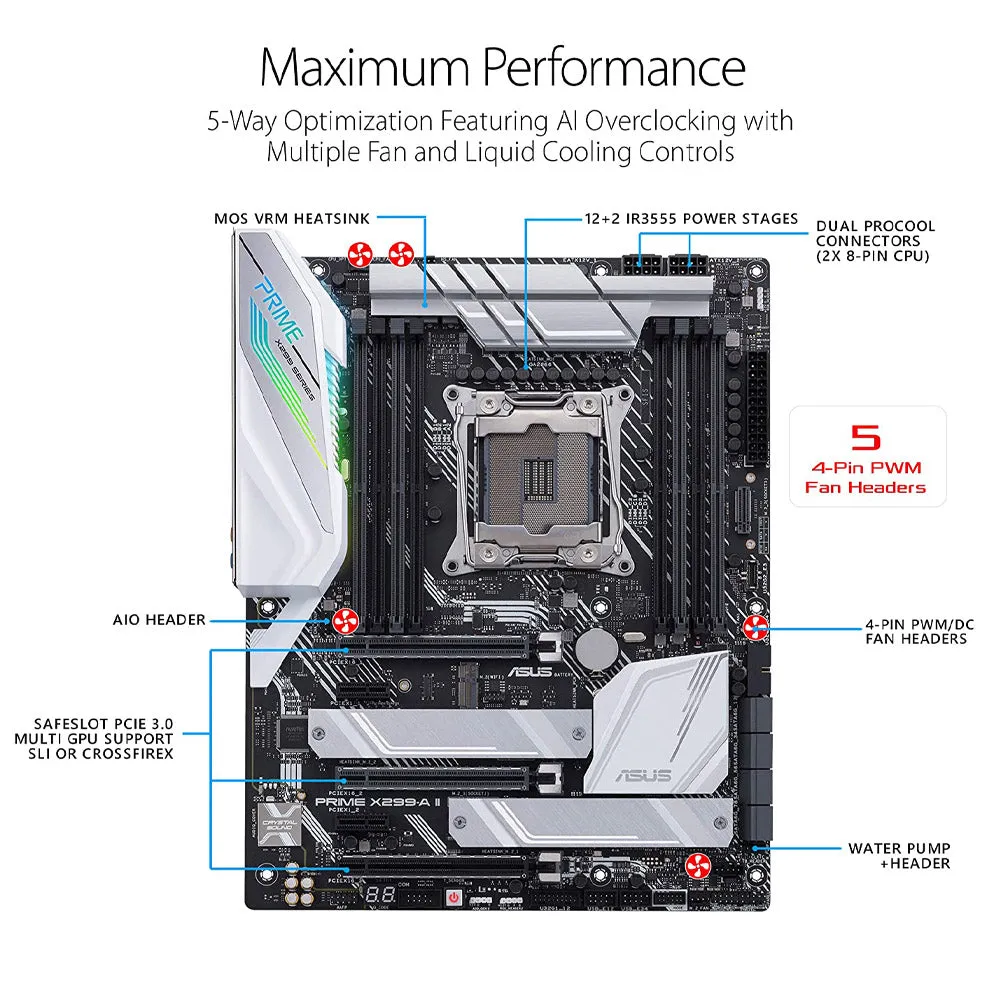

- Features the most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, Backplate and hybrid fan headers.
- The board comes with DIY Friendly features. It is also have a handful features like ASUS Node, BIOS FlashBack, FlexKey and Pre-mounted I/O Shield.
~section~

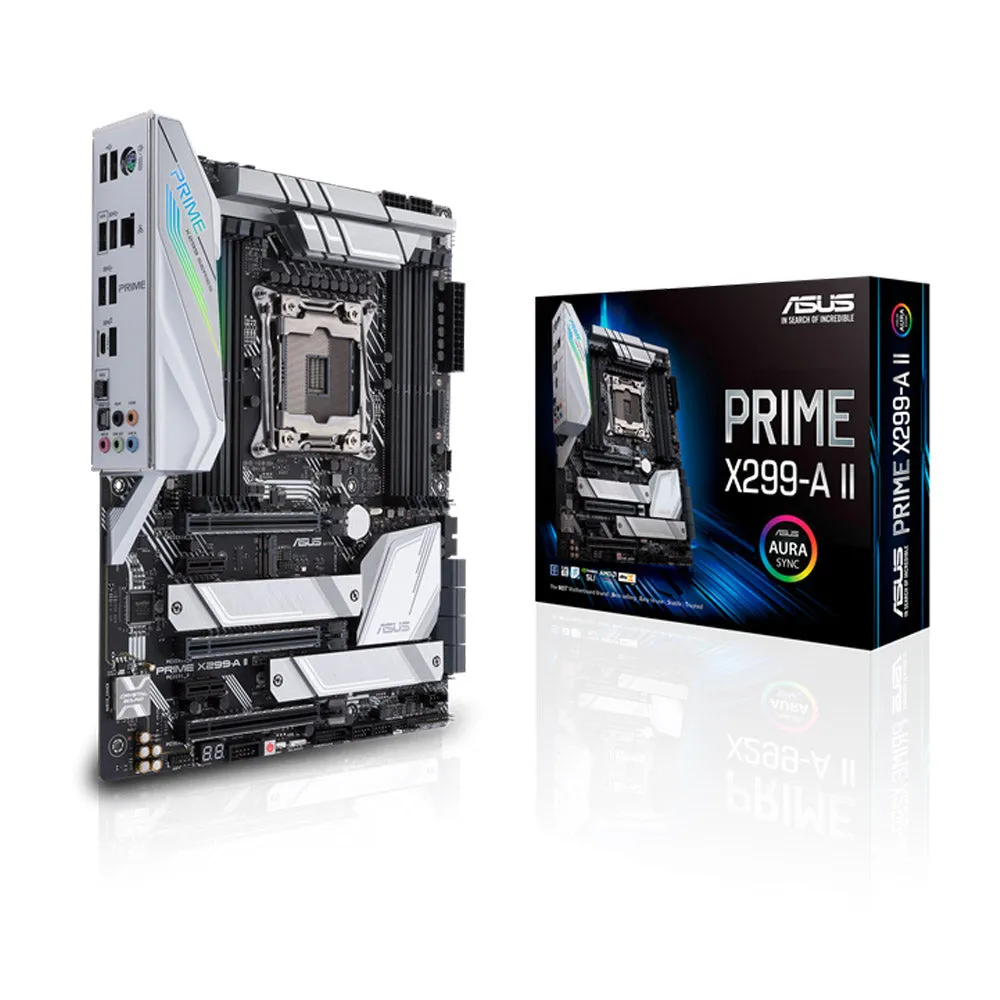

Prime X299-A II
The Prime X299-A II caters to users with serious pursuit. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.

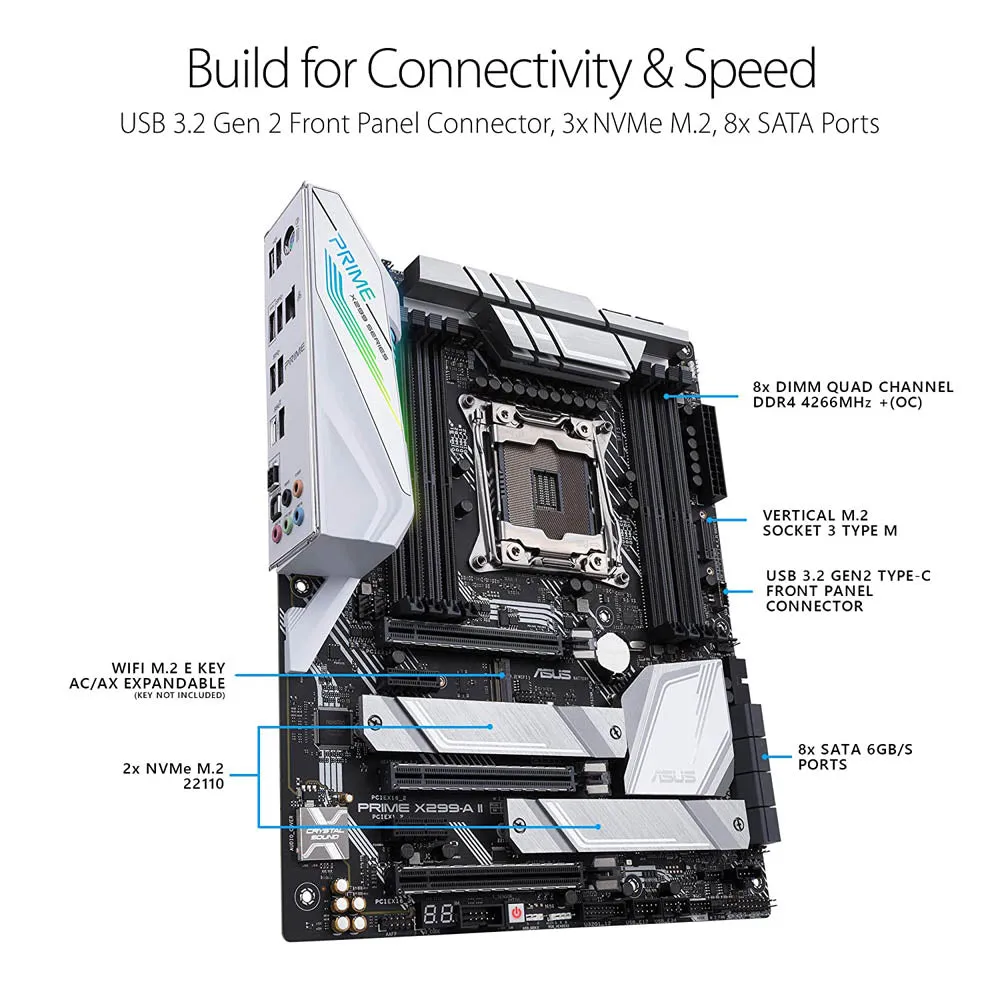

Achieve speed with onboard Triple M.2
Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs.
Multi-GPU support
Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots.
Make your DDR4 Memory go faster
The X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots which hit memory speeds up to DDR4 4266 MHz or beyond.
AI Overclocking
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.
M.2 Heatsinks
Two M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.
USB 3.2 Gen 2
Plenty of USB ports are provided to support high-end rigs loaded with peripherals, including a front-panel header with faster USB 3.2 Gen 2 connectivity for compatible cases
Intel Ethernet
The latest Intel I219-V Ethernet has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Intel X299 chipset
The Intel X299 chipset supports LGA 2066-socket Intel Core X-Series Processors. It provides improved performance by utilizing serial point-to-point links. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.
~section~
| Model | ASUS PRIME Prime X299-A II ATX Motherboard |
| CPU Socket | Intel Socket LGA 2066 |
| Chipset | Intel X299 |
| CPU Support | Intel Socket 2066 Core X-Series Processors Supports Intel Turbo Boost Max Technology 3.0 |
| Memory | Intel Core i9 10000 X-Series CPU 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/ 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel Core i9 9000/7000 and i7 9000 X-Series CPU 8 x DIMM, Max.256GB,DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C 733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/ 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x DisplayPort Port 1 x HDMI Port |
| Multi-GPU Support | Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology |
| LAN | Intel I219V 1 x Gigabit LAN ASUS LANGuard ASUS Turbo LAN Utility |
| Expansion Slots | 48-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x144-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 28-Lane CPU 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) 2 x PCIe 3.0/2.0 x1 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode |
| Storage | Intel X299 Chipset 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Core i9 10000 X-Series CPU 2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology Enterprise supports Intel Core i9 9000/7000 and i7 9000 X-Series CPU 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology 15 support Intel Optane Memory Ready |
| Audio | Realtek S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature - DTS X:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB | ASMedia USB 3.2 Gen 2 controller 1 x USB 3.2 Gen 2 front panel connector port(s) ASMedia USB 3.2 Gen 2 controller 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (2 at back panel,Type-A USB Type-CTM) Intel X299 Chipset 8 x USB 3.2 Gen 1 port(s)(4 at back panel,4 at mid-board) Intel X299 Chipset 6 x USB 2.0 port(s) (2 at back panel,4 at mid-board) |

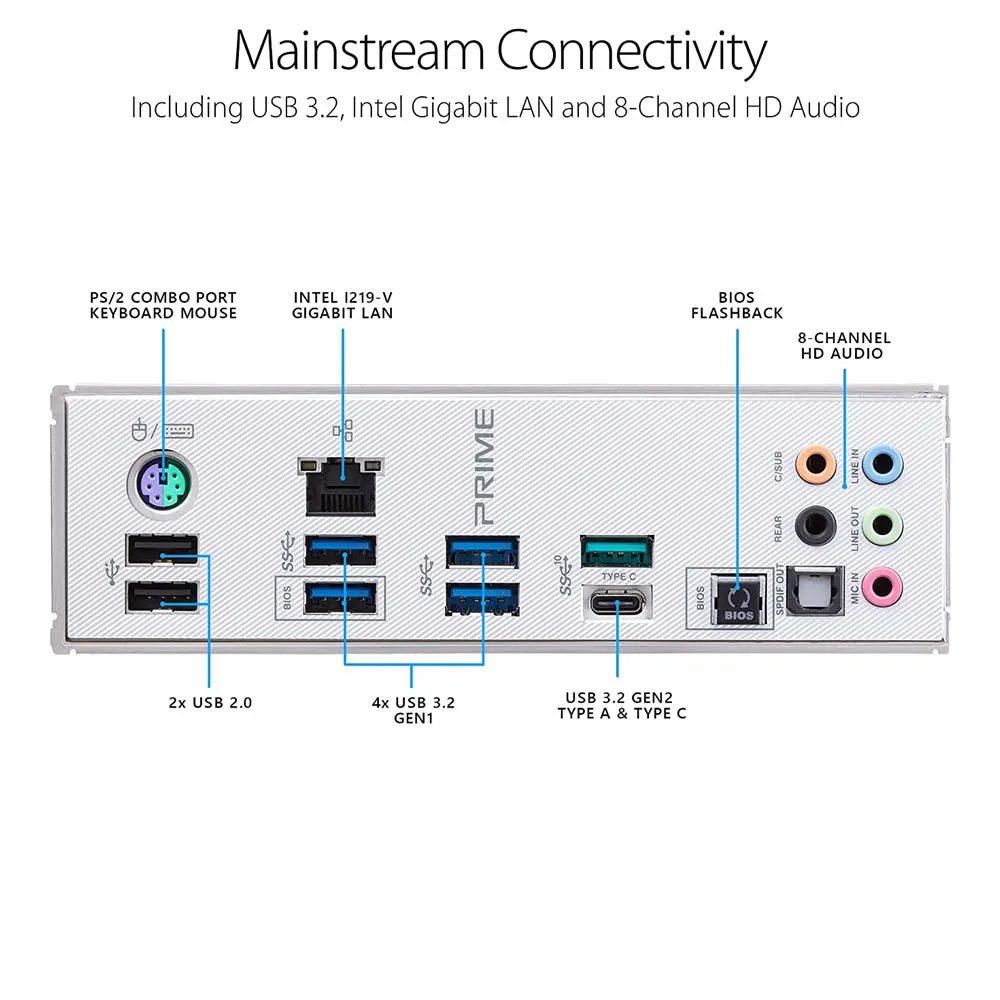

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack Button(s) 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A USB Type-CTM) |

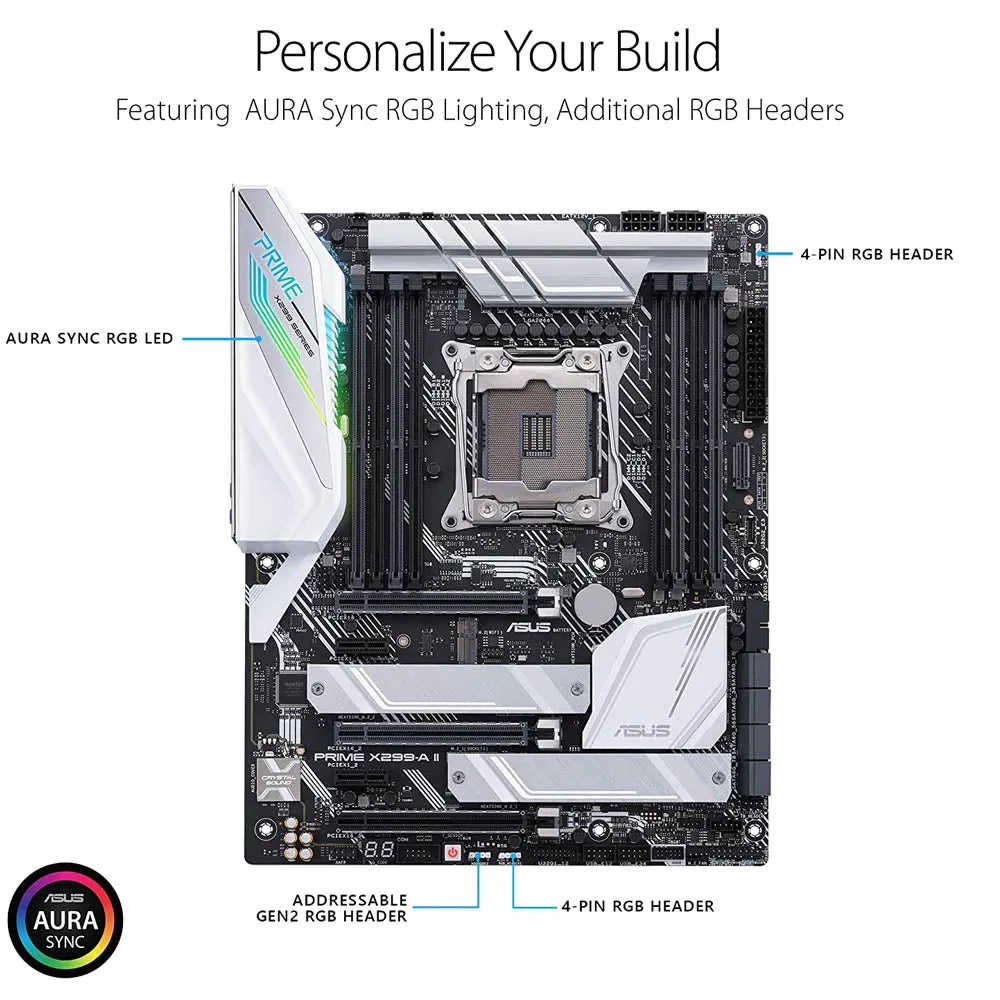

| I/O Ports | 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1 front panel TypeC connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP connector 1 x AIO_PUMP connector 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s)(AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x CPU_OV jumper 1 x Q-Code |

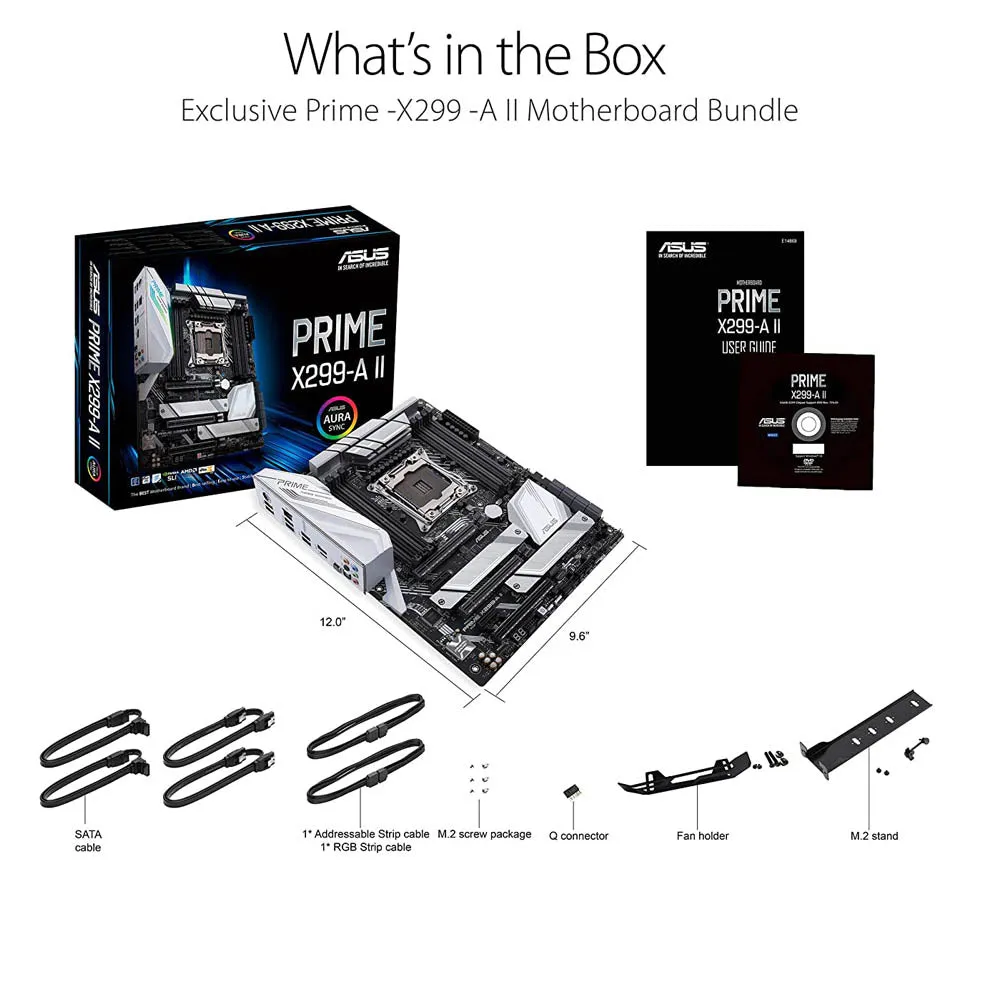

| Accessories | User´s manual 1 x Vertical M.2 bracket set 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 2 x M.2 SSD screw package 1 x Q-Connector 1 x Support DVD 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1 |
| Operating System | Windows 11 Ready Windows 10 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
| Warranty | 3 Years of Brand Warranty |
