- The Asus Prime TRX40-Pro AMD Socket sTRX4 Motherboard is exclusively designed for ready for the latest 3rd Gen AMD Ryzen Threadripper series processors
- Based on Robust power design the baord is contains 16 Infineon TDA21462 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
- Packed with comprehensive thermal solutions like VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution and an array of hybrid fan headers
- The motherboad supports Next-gen connectivity with Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C front-panel connector, and Intel Gigabit Ethernet
- Powered by Intelligent tuning accompanied by ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels
~section~

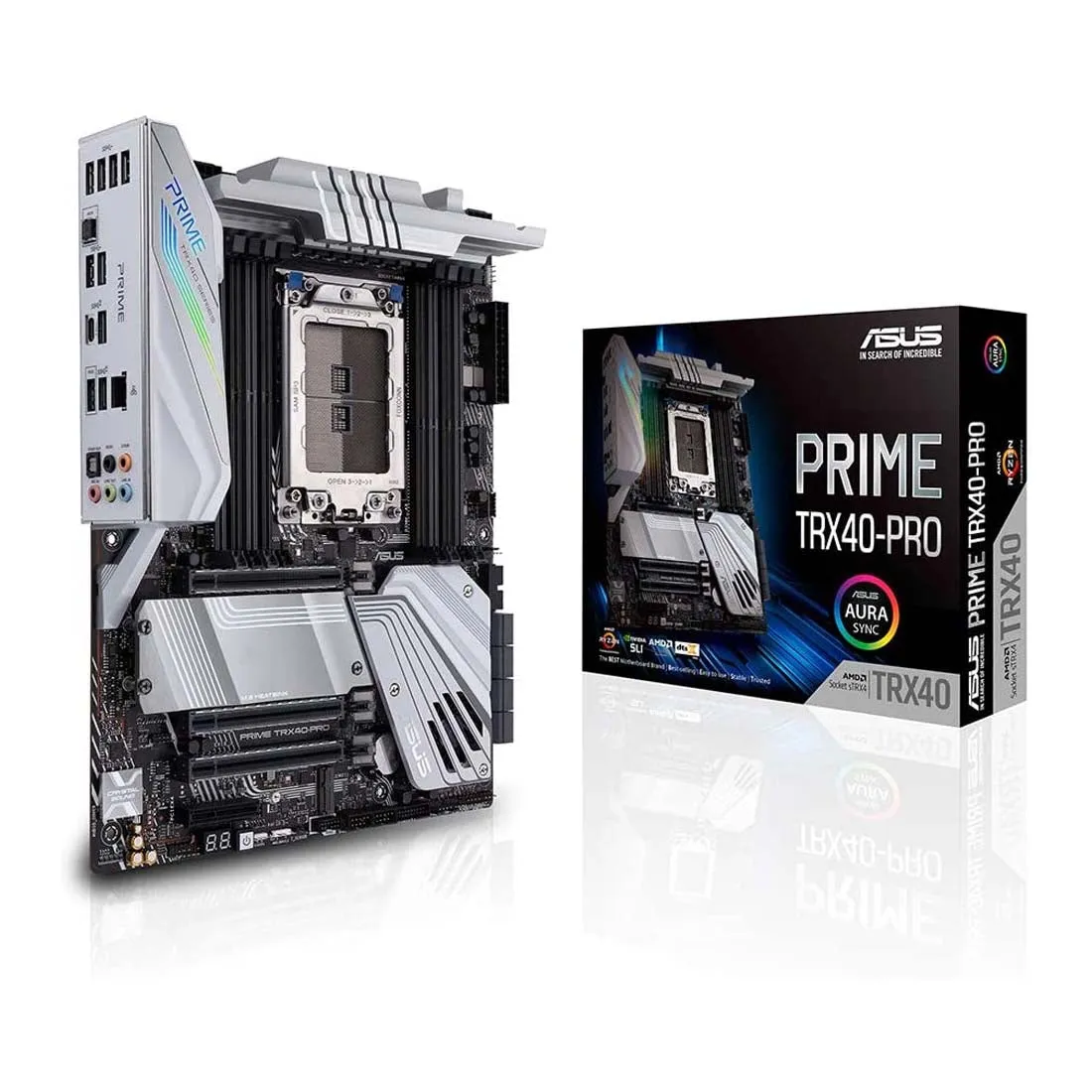

TRX40-Pro Prime
ASUS Prime TRX40-Pro is expertly engineered to unleash the full potential of AMD's latest high-core-count processors for content creators, designers and professional use. Combining a robust power design, comprehensive cooling solutions, ultrafast PCIe 4.0 connectivity and intelligent tuning options.

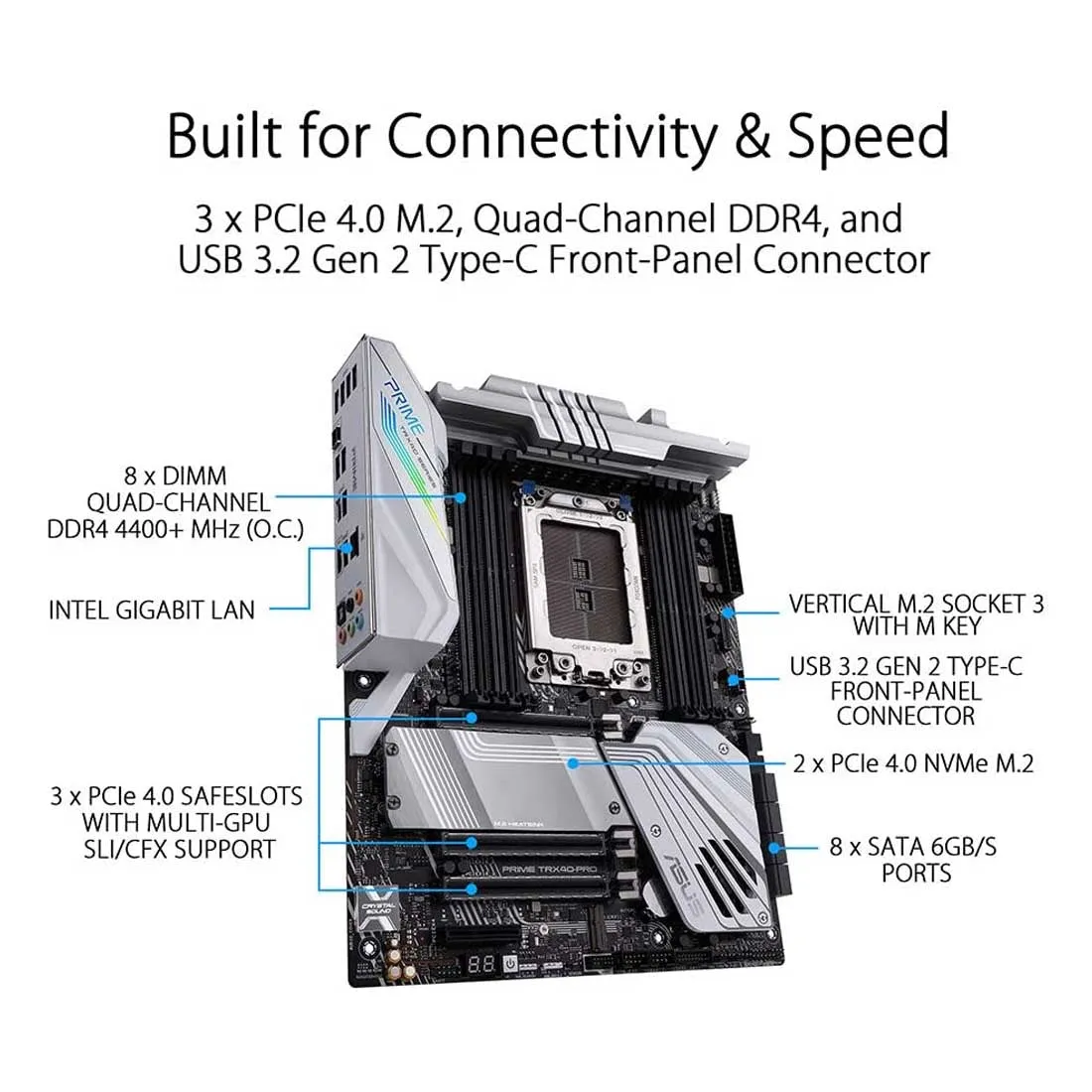

Triple PCIe 4.0 M.2
Prime TRX40-Pro is equipped with three PCIe 4.0 M.2 slots that are compatible with the latest NVMe SSDs. All slots support up to 110 mm drives, and they can be configured into bootable RAID arrays for ultrafast data-transfer speeds.

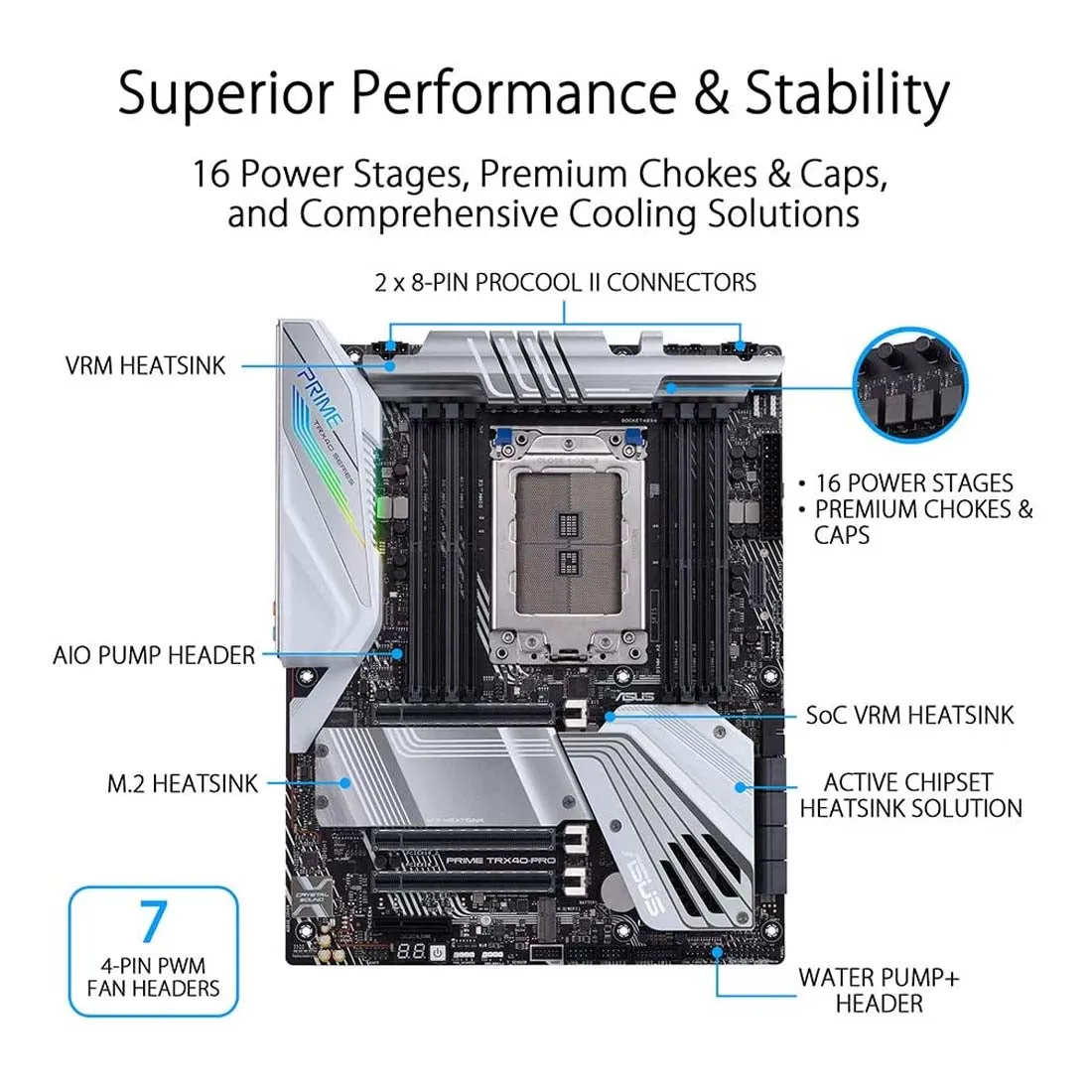

Power Design
Prime TRX40-Pro is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity as the sTRX4 is compatible with 3rd Gen Threadripper CPU's which requires serious power.
Multi-GPU Support
Fully loaded takes on a new meaning when you have up to 64 PCIe 4.0 lanes stemming from the CPU. These lanes can be split in an x16/x16/x16 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to supercharge your work efficiency.
Memory
The TRX40 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With the TRX40 you can drive your memory faster and to new heights.
USB 3.2 Gen 2
Plenty of USB ports are provided to support high-end rigs loaded with peripherals, including a front-panel Type-C connector with faster USB 3.2 Gen 2 connectivity for compatible cases.
Chipset Heatsink
Prime TRX40-Pro features an actively cooled heatsink to prevent throttling during sustained transfers, designed with the screws on top for easy access and maintenance which will reduce the heat flow to the chipset.
BIOS FlashBack
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed
Pre-Mounted I/O Shield
Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series motherboards. Now available on Prime TRX40-Pro, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.
FlexKey
FlexKey, a newly implemented UEFI option, enables you to remap the rarely-used reset button on your chassis to a different function. You can reassign it to perform a safe boot, or to boot directly into the UEFI without needing to press the delete key.

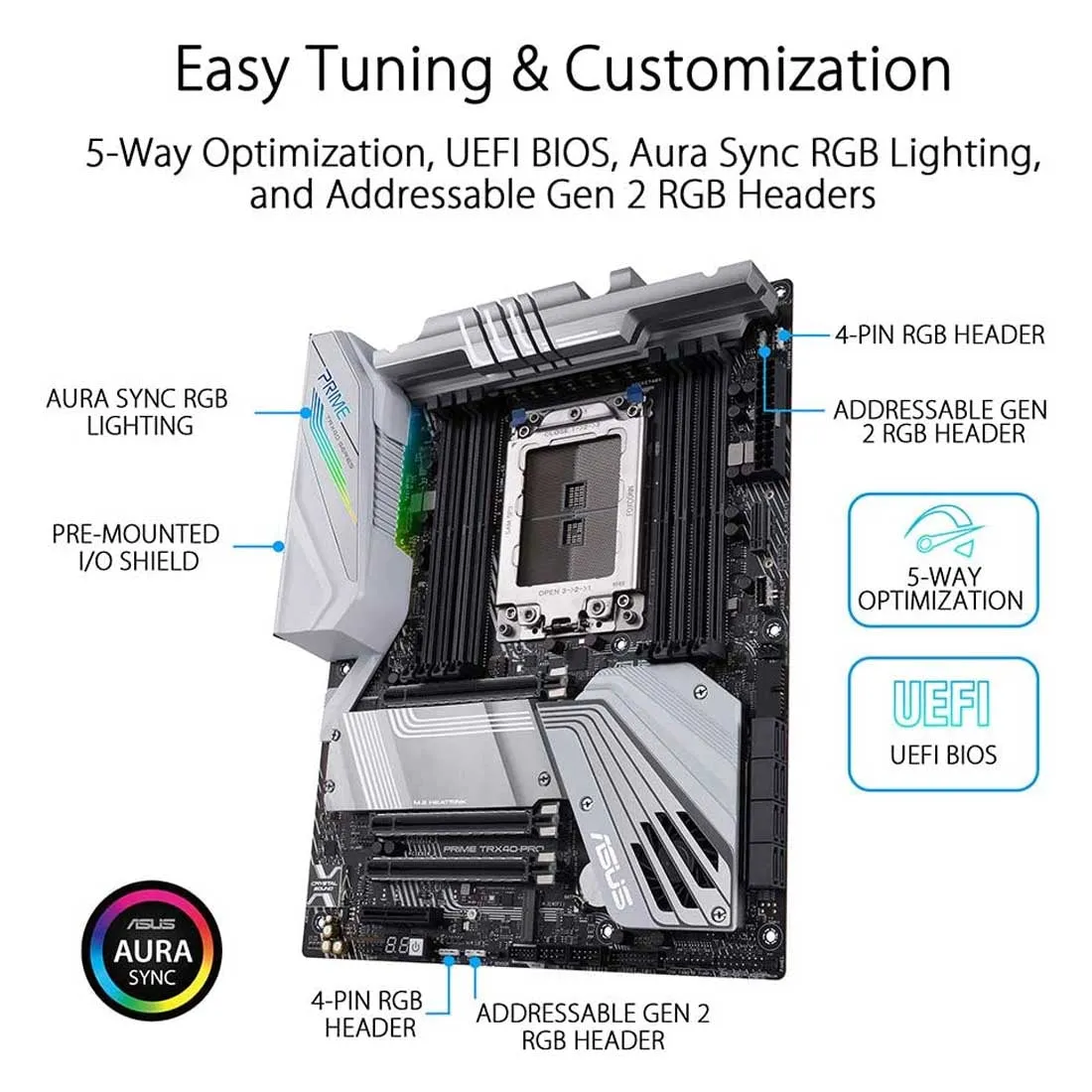

Aura Sync
ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers and they can all be synced with an ever-growing portfolio of Aura-capable hardware.
~section~
| Model | Prime TRX40-Pro |
| CPU Socket | AMD sTRX4 |
| CPU Support | AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors |
| Chipset | AMD TRX40 |
| Memory | 3rd Gen AMD Ryzen Threadripper Series Desktop processors 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| Multi-GPU support | Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 2-Way CrossFireX Technology |
| Expansion Slot | 3rd Gen AMD Ryzen Threadripper Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) AMD TRX40 chipset 1 x PCIe 4.0 (x4 mode) |
| LAN | Intel I211-AT ASUS Turbo LAN Utility ASUS LAN Guard |
| Storage | 3rd Gen AMD Ryzen Threadripper Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Audio | Realtek ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) Audio Feature : - DTS X:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports | AMD Ryzen Threadripper Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A 1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia® USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board) |

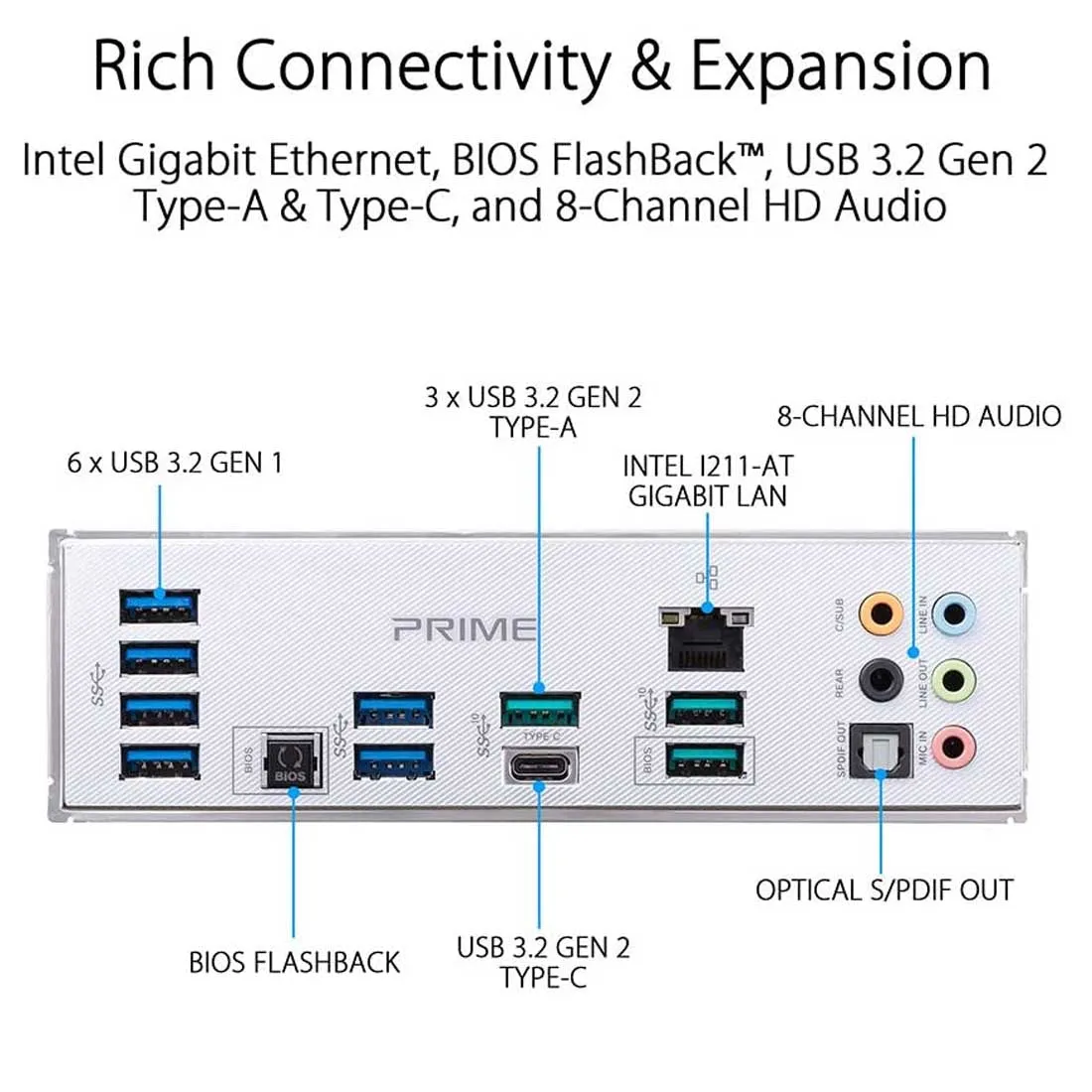

| I/O Ports | 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A 1 x Type-C) (one port can be switched to USB BIOS FlashBack) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack Button(s) |
| Internal I/O ports | 1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector |

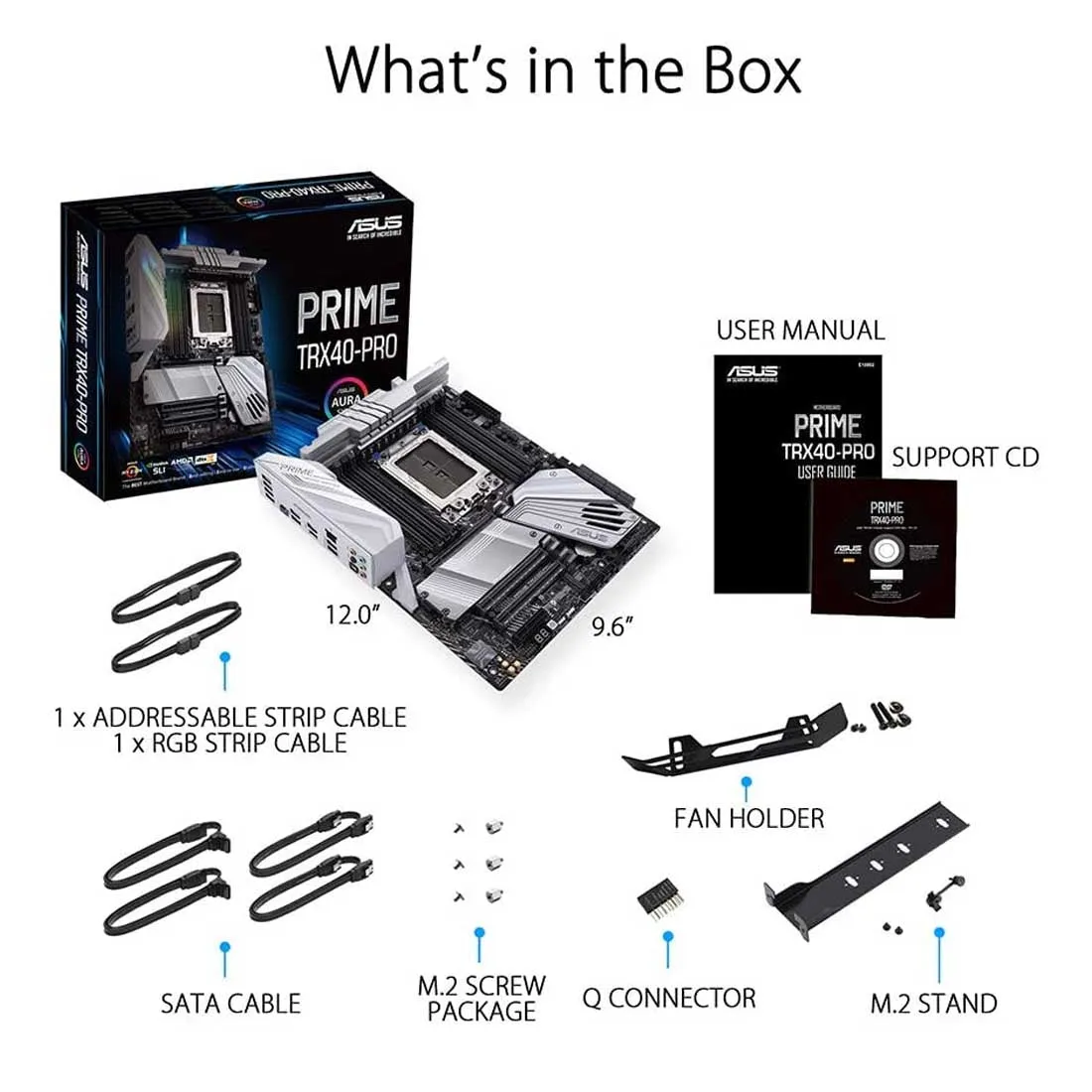

| Accessories | User's manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (40 cm) 1 x Extension cable for Addressable LED 1 x CPU Fan Holder |
| Dimensions | 30.5 cm x 24.4 cm (12 x 9.6 ) ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
