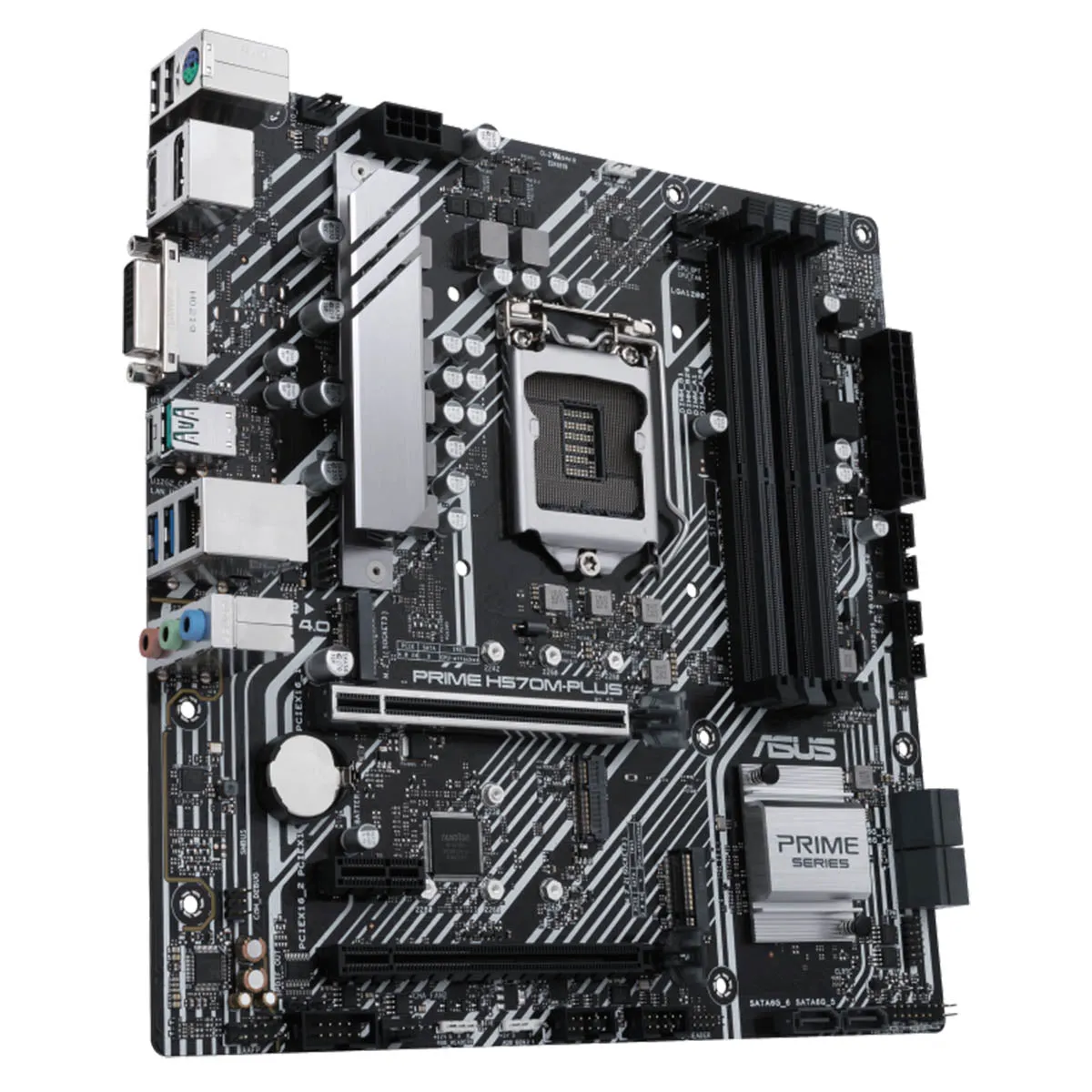

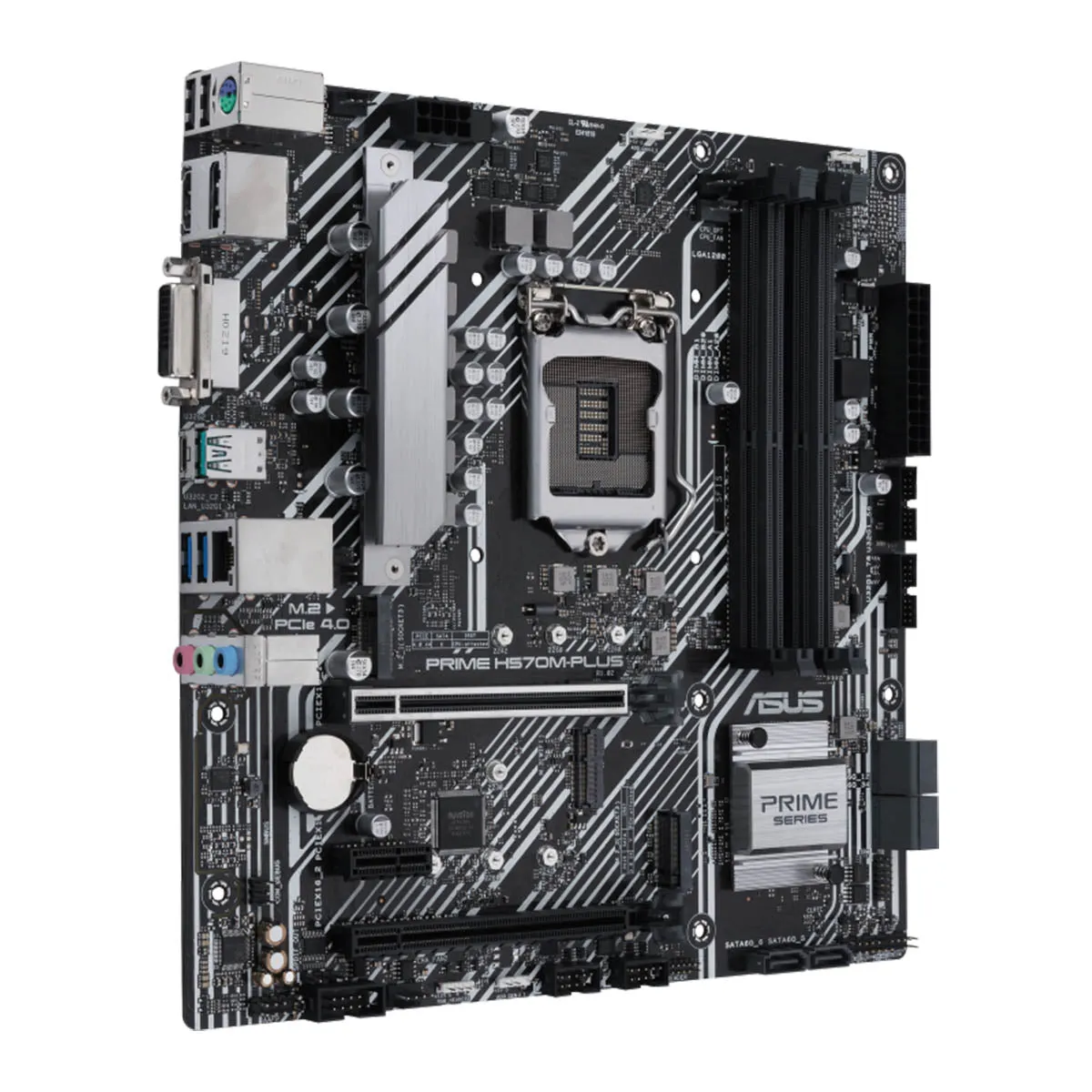

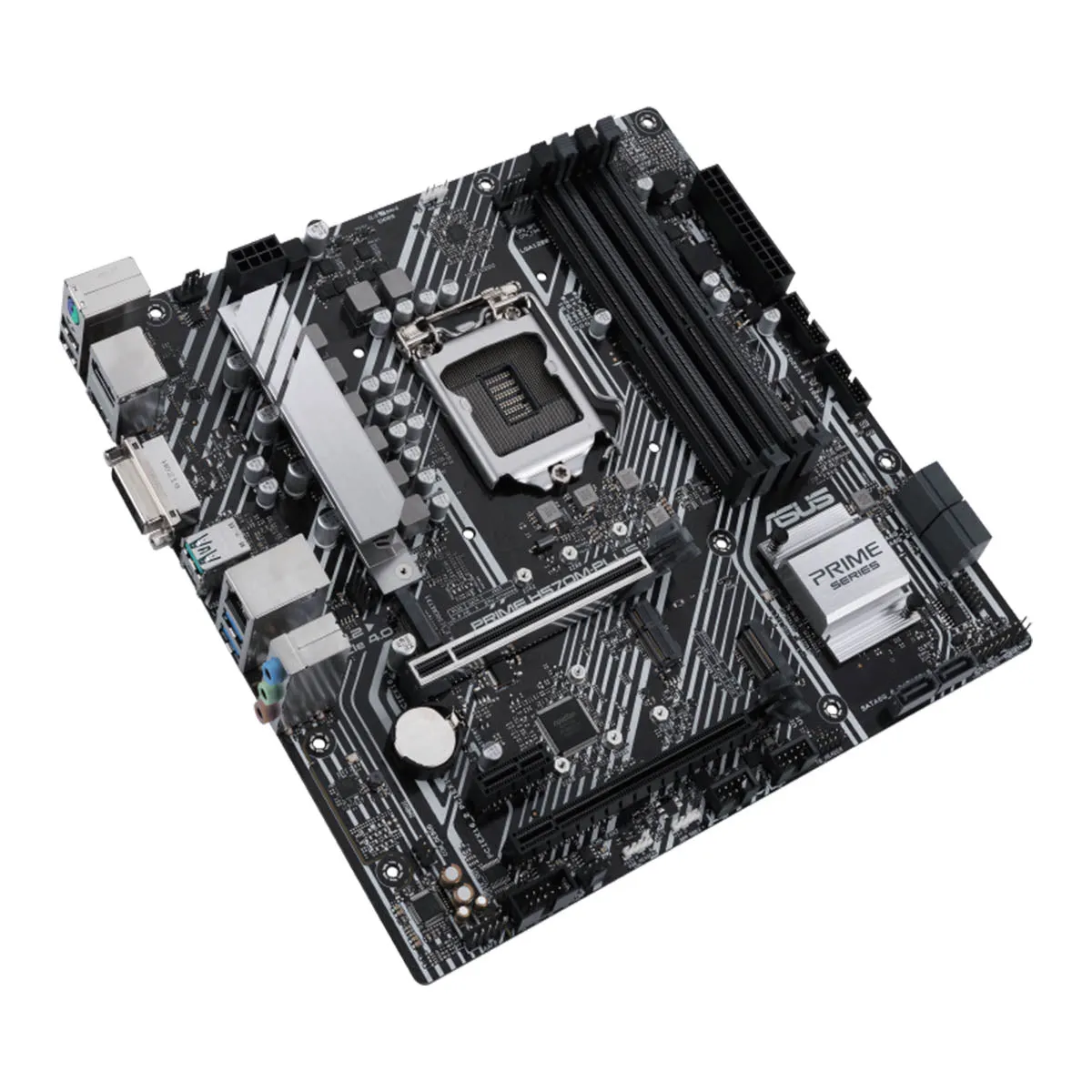

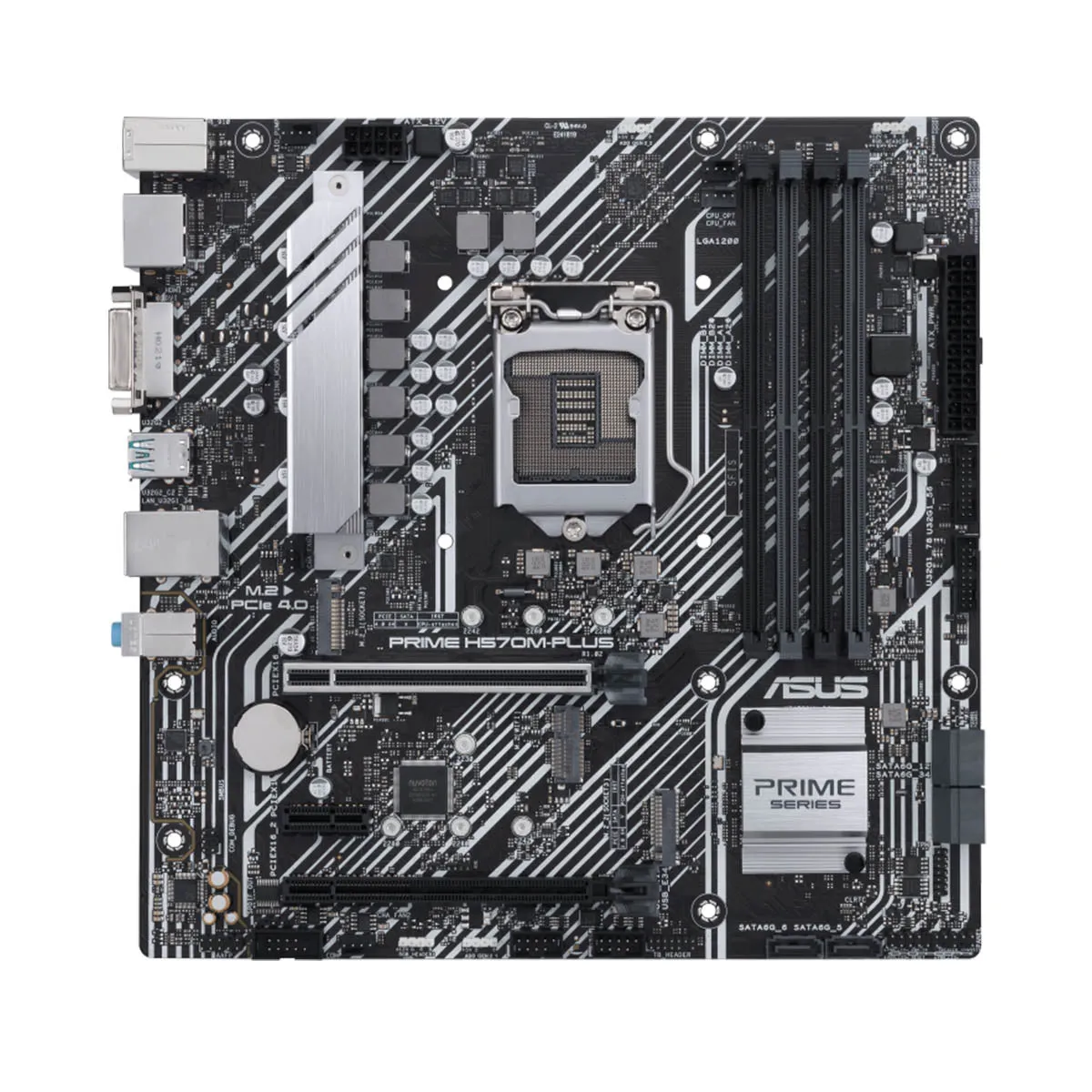

- The ASUS Prime H570M-Plus motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors. The board is PCIe 4.0 Ready supporting up to 128GB DDR4 4600MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- The board features the most comprehensive cooling options ever that are configurable via Fan Xpert 2 or the UEFI BIOS. It employs enlarged VRM heatsink, PCH heatsink and hybrid fan headers. These comprehensive cooling options are controllable and configurable via Fan Xpert 2 software.
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C and Thunderbolt 4 support. With the integration of LANGuard gives advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput.
- ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers. An exclusive circuit design with built-in voltage regulators protects your motherboard from damage caused by unexpected high-level or unstable voltages.
~section~
Durable. Stable. Reliable.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H570M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Dual M.2
Prime H570M-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0 Slot
Designed specifically for 11th Gen Intel CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create builds that can handle high loads effortlessly.
USB 3.2 Gen 2 Type-C
Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-C connector with fast USB 3.2 Gen 2 connectivity for compatible case.
Thunderbolt 4 Support
Feature Thunderbolt 4 support via an on-board header. With ThunderboltEX 4 add-on card, the board can enable bi-directional speeds of up to 40 Gbps on a single cable and daisy-chain function for multi-screen connection and supports up to an 8K resolution display.
Cooler By Design
Prime H570 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
ASUS OptiMem
Motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Digi
The Digi voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Fan Xpert 2
PRIME 500 Series motherboards offer comprehensive control over system fans, via the included Fan Expert 2 software. Auto-Tuning mode intelligently configures all parameters with a single click.
SafeSlot Core
The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. Its shields the slot to protect it from damage.
~section~
| Model | ASUS PRIME H570M-PLUS (90MB16W0-M0UAY0) |
| CPU Socket | Intel Socket LGA1200 |
| CPU Support | Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H570 |
| Memory | DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| On-Board Graphics support | 1 x DisplayPort 1.4 1 x HDMI 2.0 1 x DVI-D |
| Expansion Slot | Intel 11th & 10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slots - Intel 11th Core processors support PCIe 4.0 x16 - Intel 10th processors support PCIe 3.0 x16 Intel H570 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Ethernet | 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard |
| Wireless and Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |

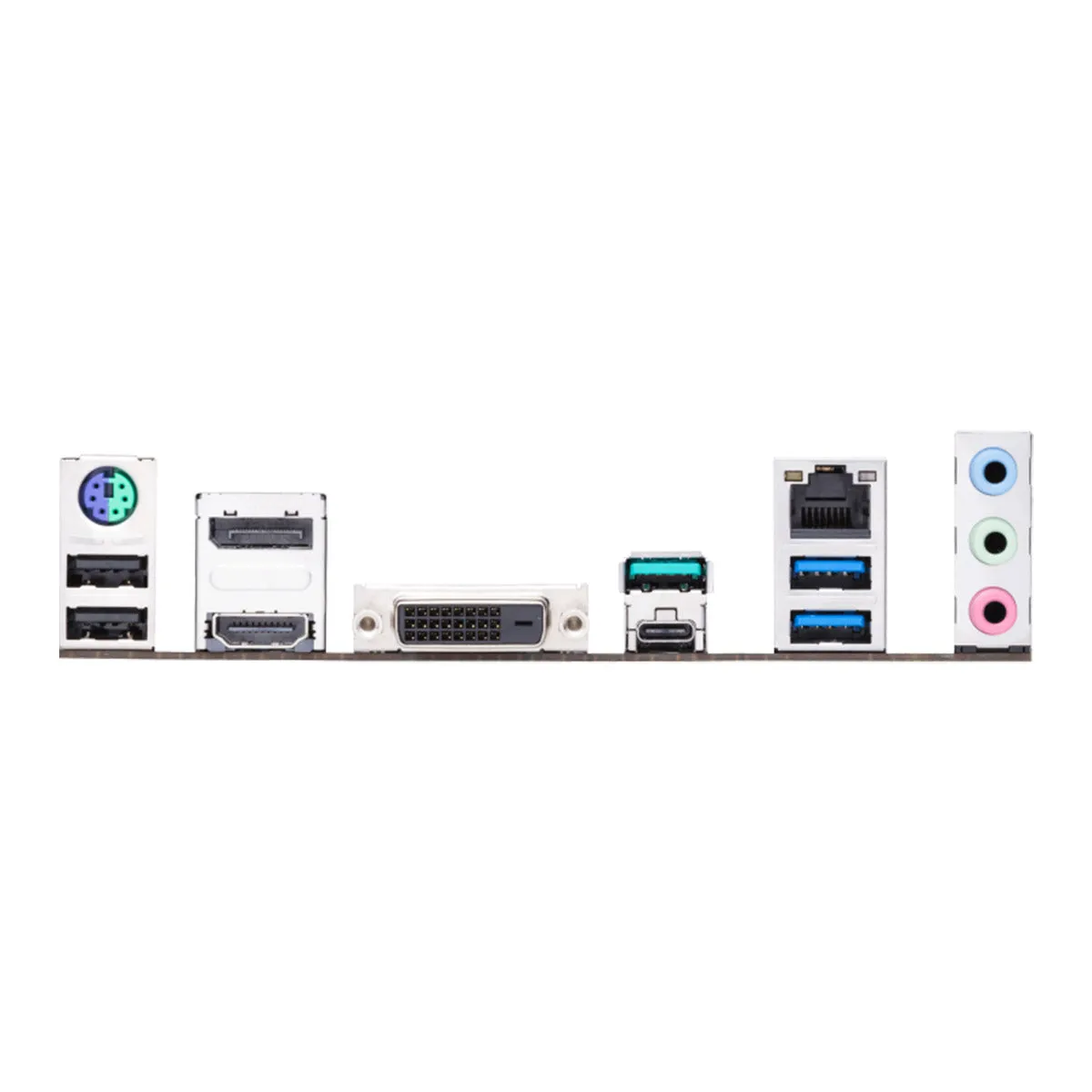

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A 1 x USB Type-C) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x DVI-D port 1 x HDMITM port 1 x Intel I219V 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |

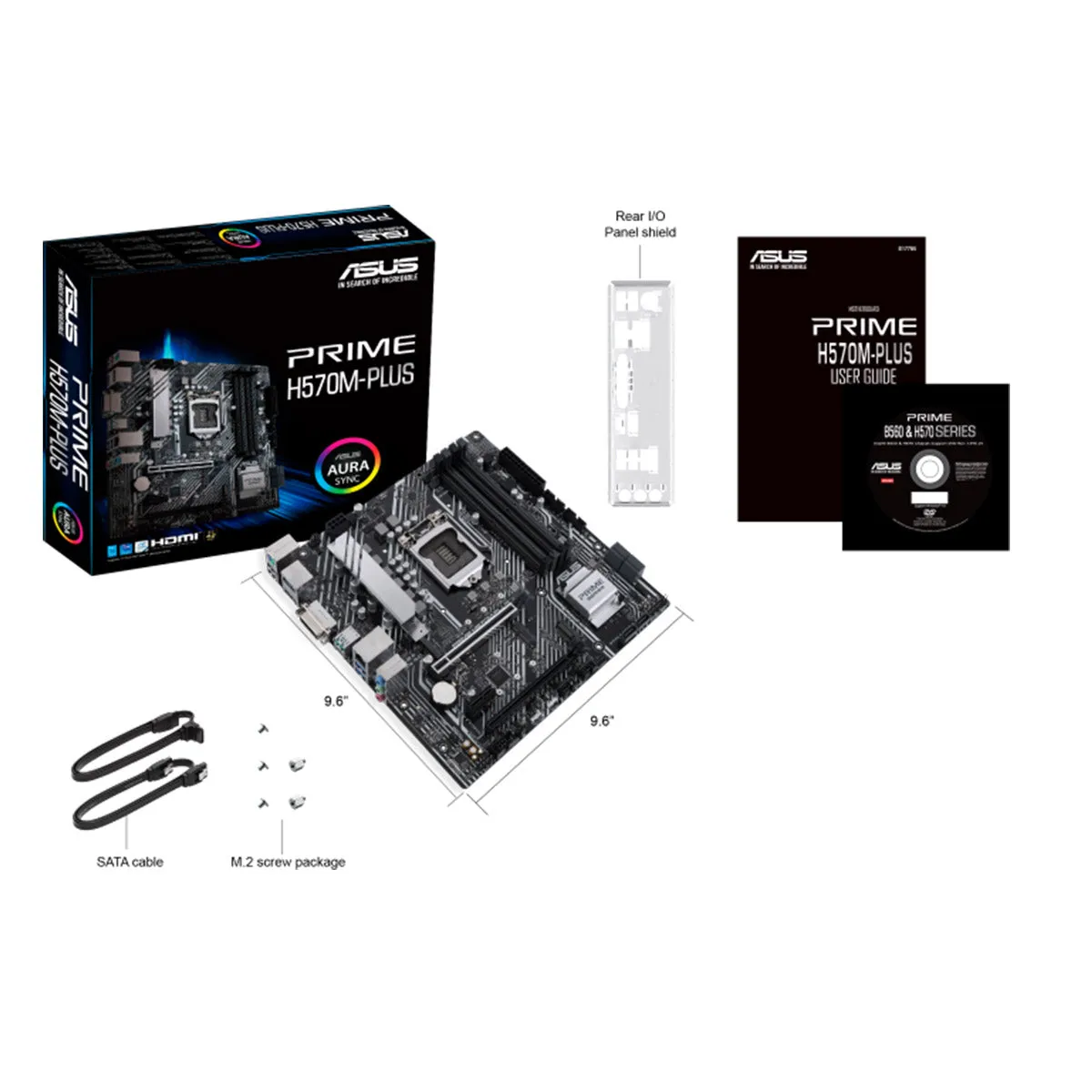

| Accessories | Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x M.2 Rubber Package 1 x I/O Shield 1 x M.2 Key E screw package Installation Media: 1 x Support DVD Documentation: 1 x User manual |
| Dimensions | 24.4 cm x 24.4 cm Micro-ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
