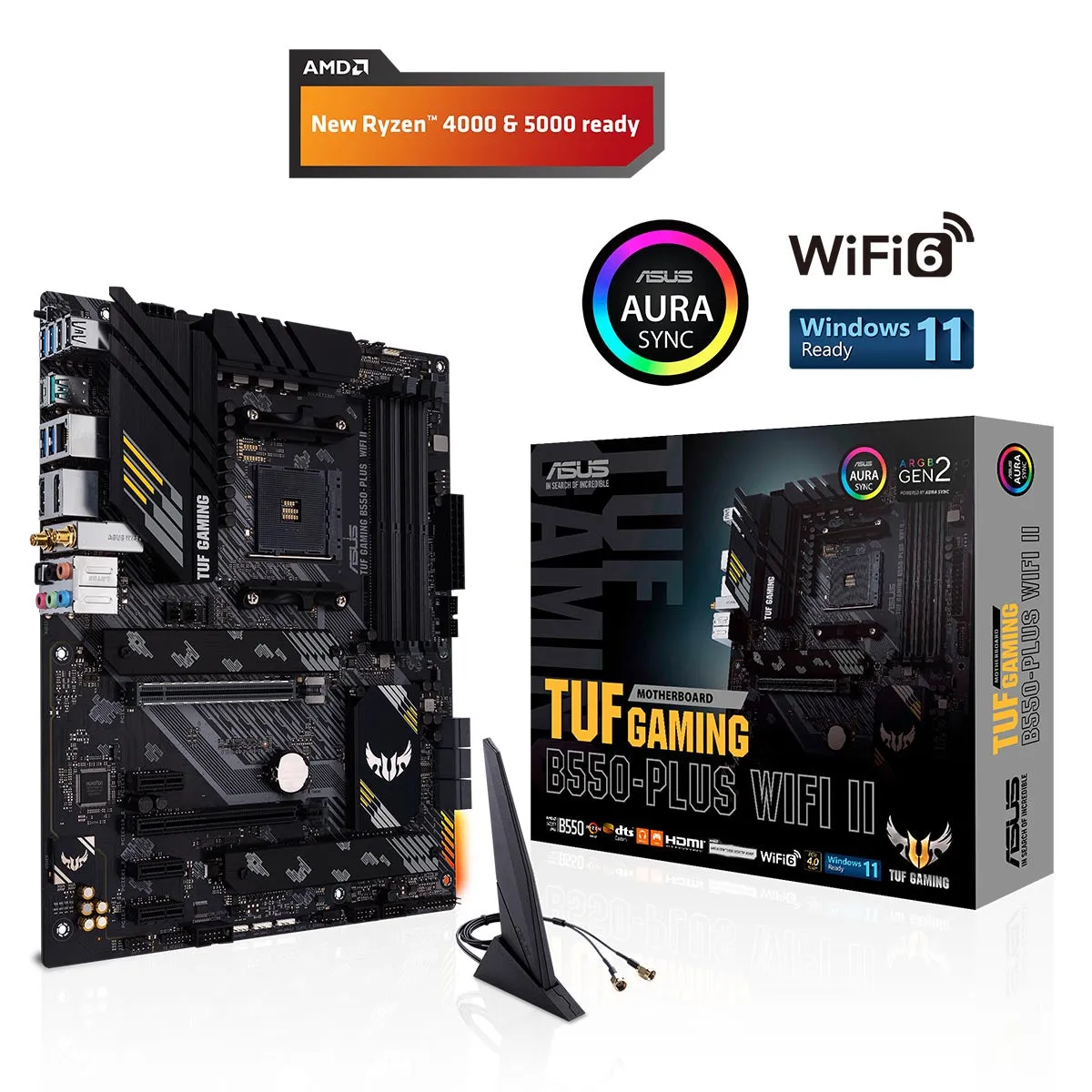

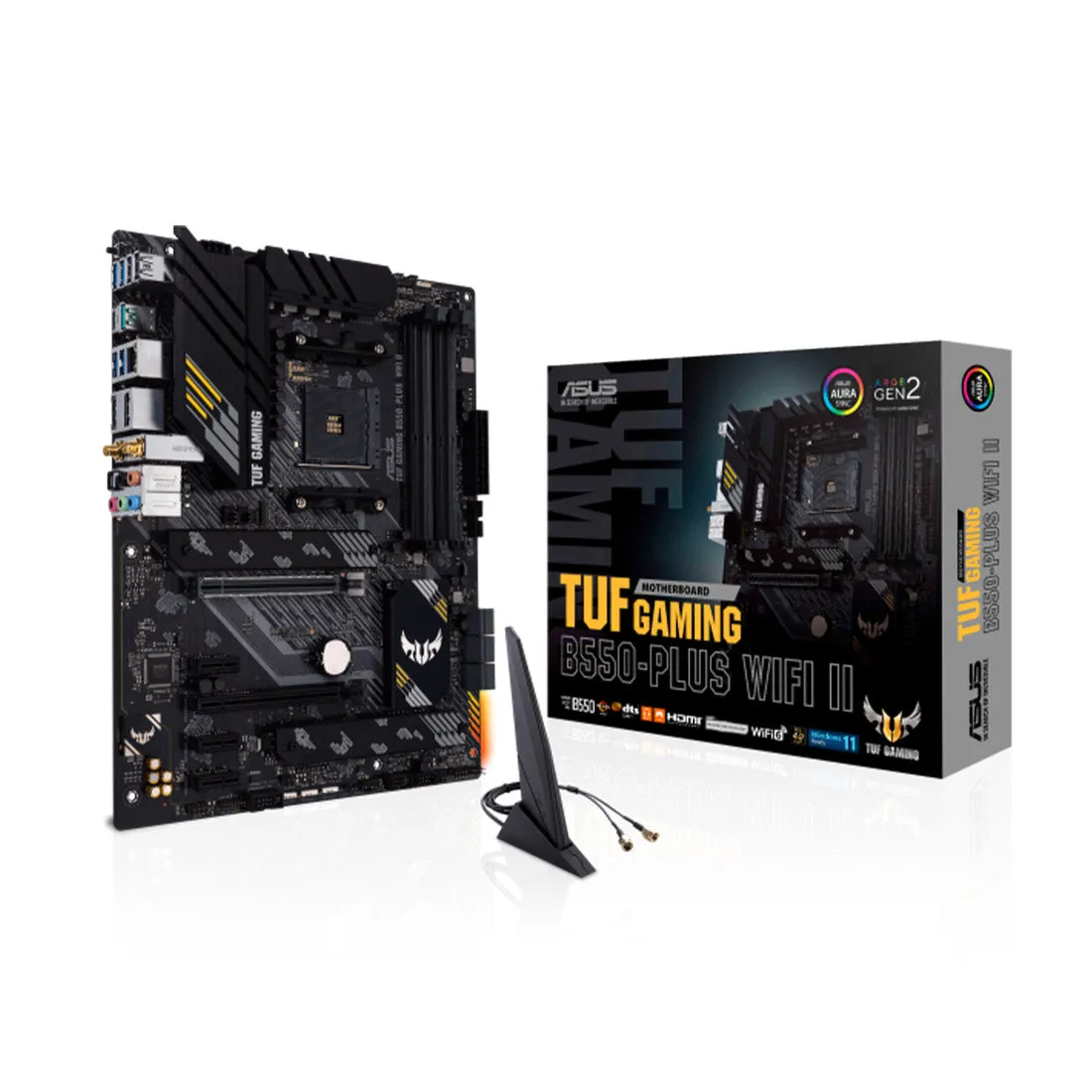

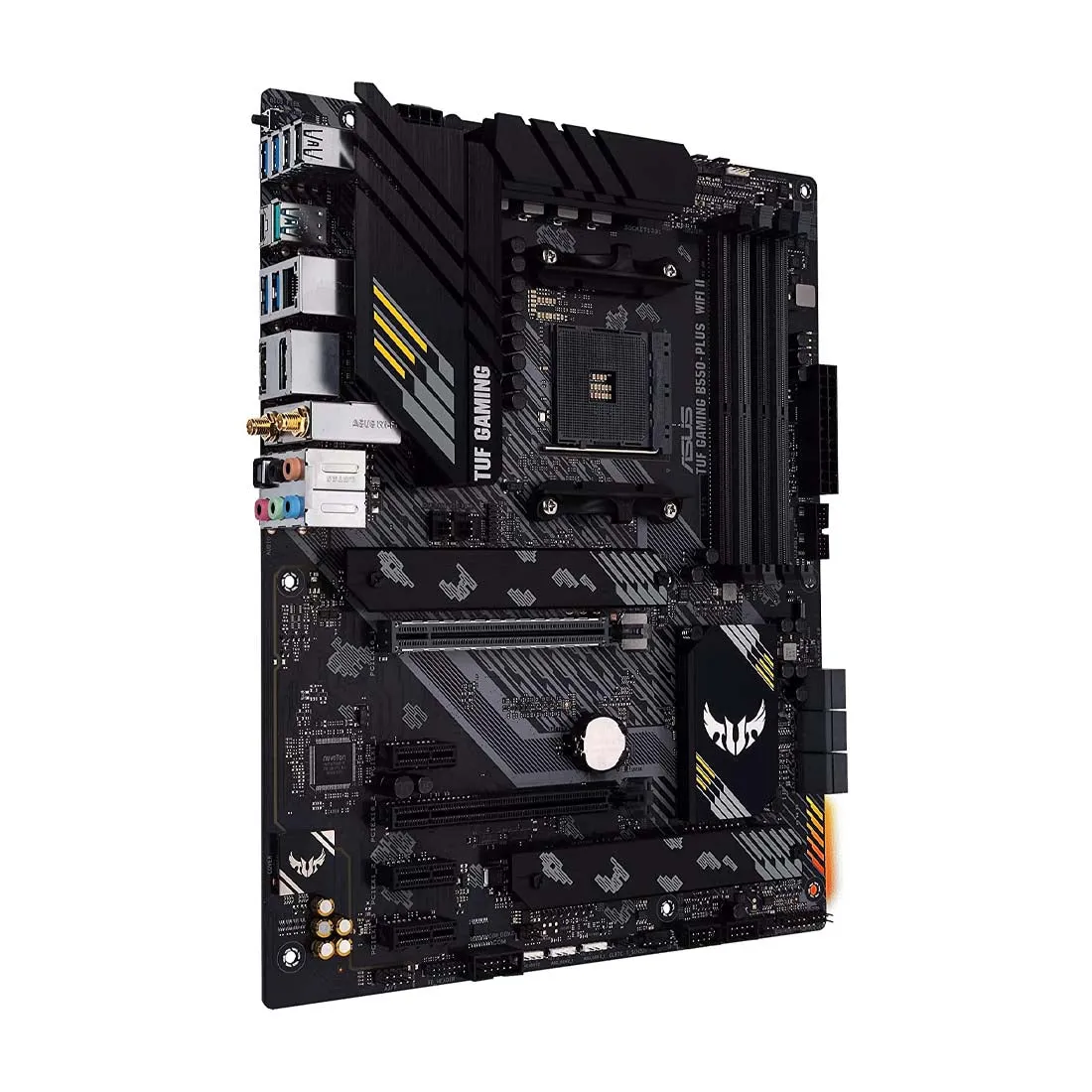

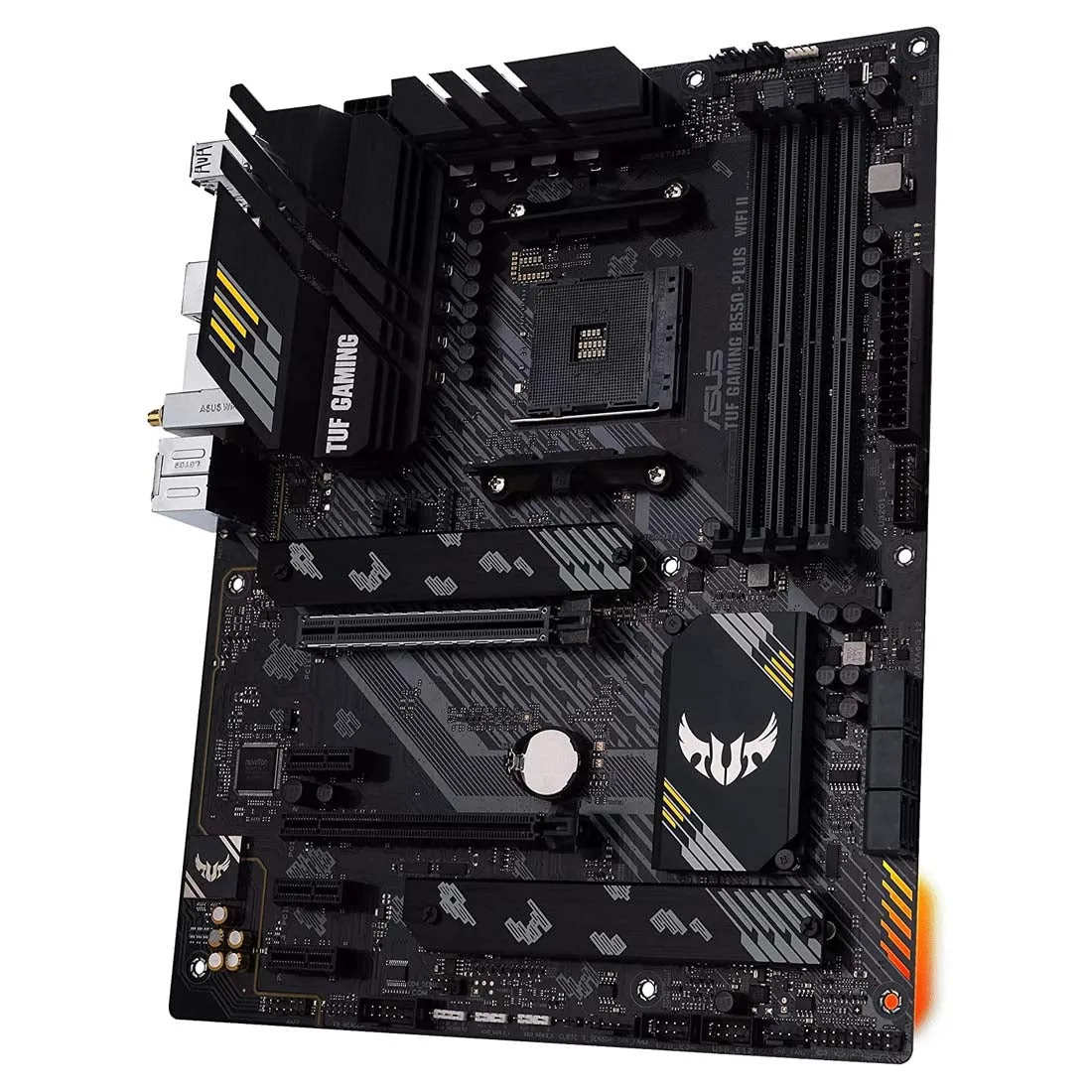

- ASUS TUF B550-PLUS WIFI II motherboard for gaming is designed to support latest AMD Ryzen 5000 5000G, 4000G Series and 3000 Series Processors.
- The ASUS B550 motherboard is PCIe 4.0 ready supporting up to 128GB DDR4 4866MHz(OC) of memory and Dual Channel memory Architecture. The DDR4 ASUS motherboard support next gen PCIe 4.0 M.2 slots
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, two M.2 slots, WIFI 6, Thunderbolt 3 header, USB 3.2 Gen 2 Type-A and Type-C support, Turbo LAN and many more features.
- Features the most comprehensive cooling options that can be controlled via Fan Xpert 4 employs VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers.
- Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
~section~
Durable. Stable. Reliable

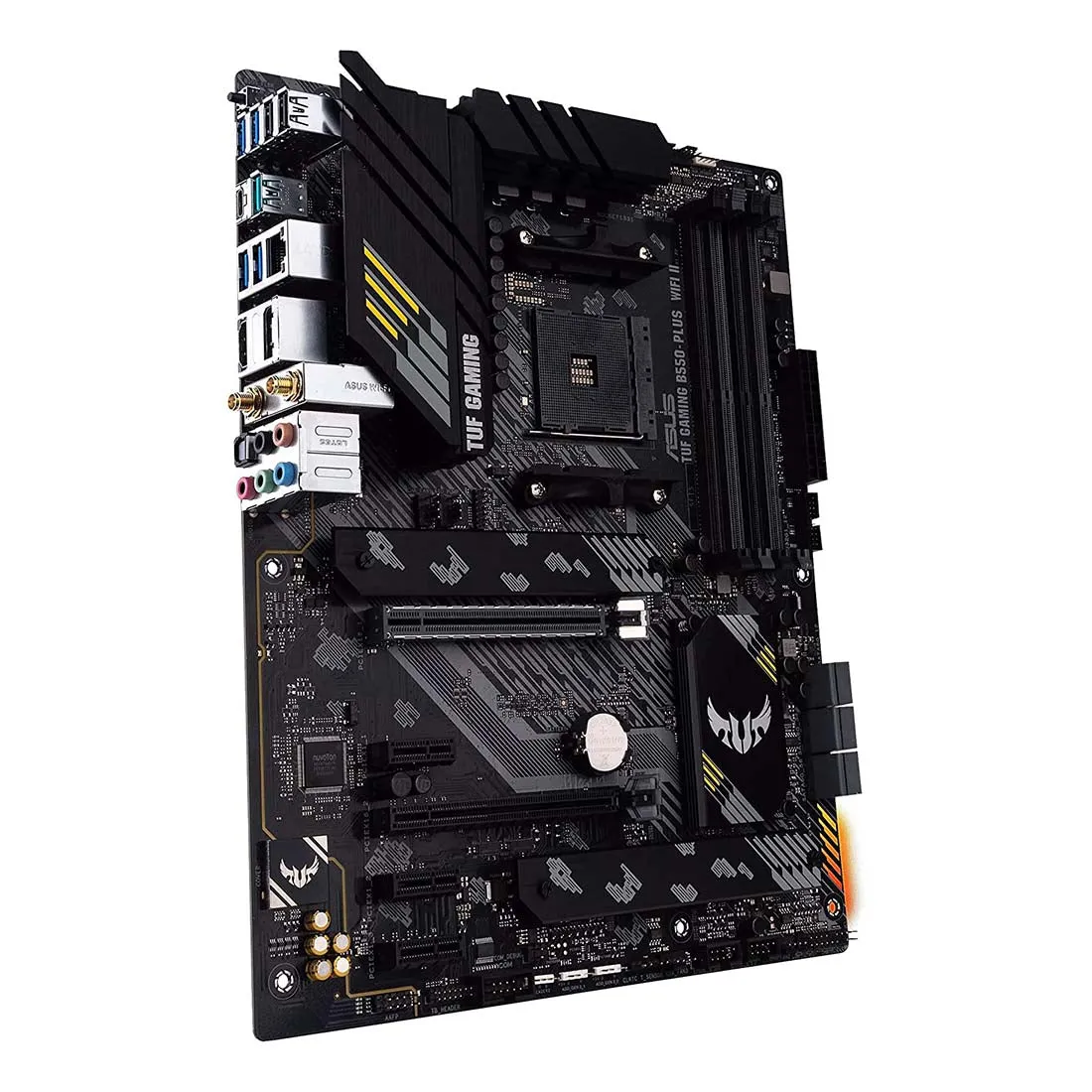

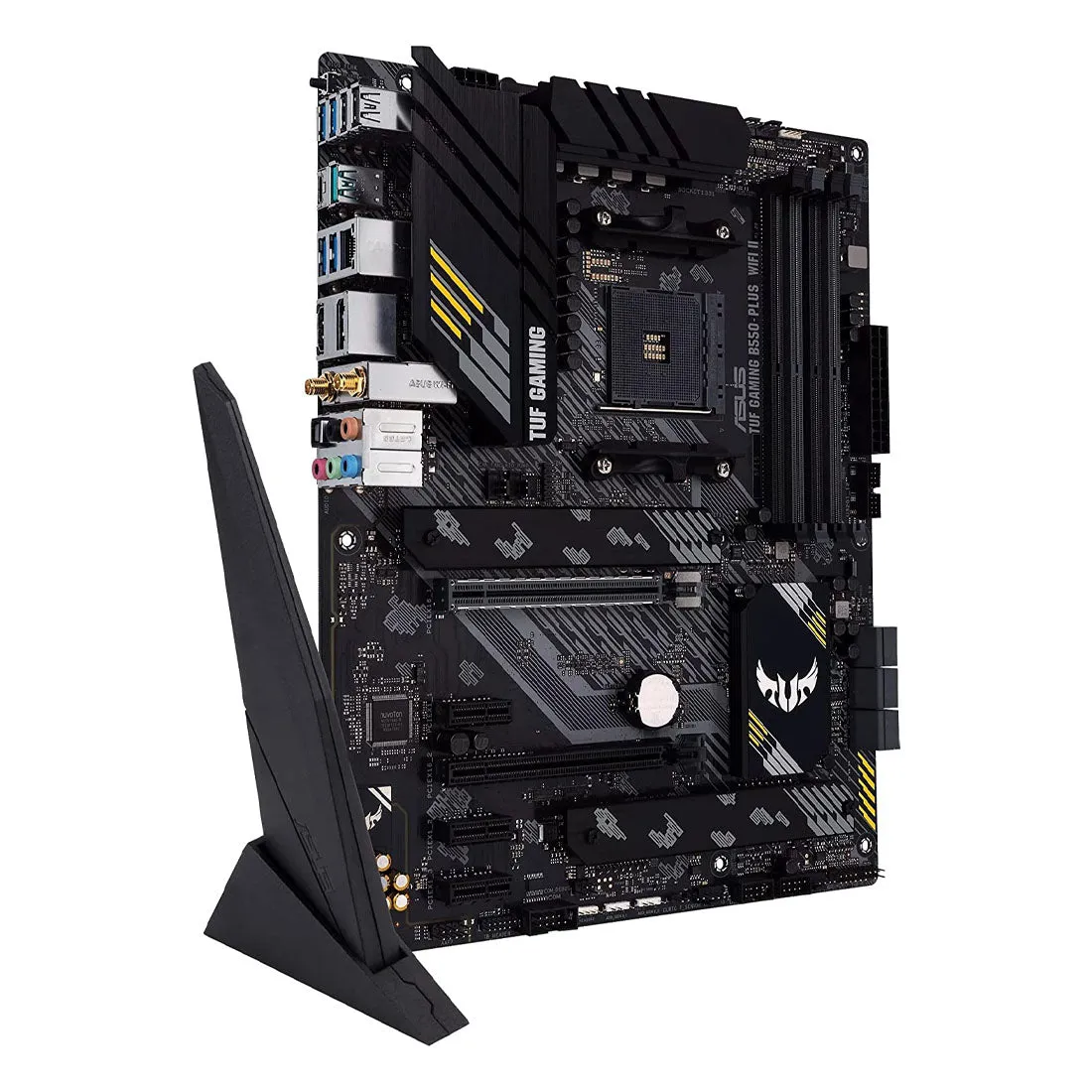

TUF GAMING B550-PLUS WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options this motherboard delivers rock-solid performance with unwavering gaming stability.
PCIe 4.0 M.2
TUF Gaming B550 series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer.
Cooler By Design
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
Thunderbolt 3 Support
An integrated Thunderbolt 3 header supports up to 40 Gbps. One Thunderbolt 3 port can support up to six devices in a daisy-chain, and provide up to 100 watts of power to fast-charge devices.
USB 3.2 Gen 2
Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.
WIFI 6
The WIFI 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. It's optimized for more efficient operation on crowded networks with a lot of competing traffic.
BIOS Flashback
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button.
SafeSlot
Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Turbo LAN
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
AI Noise Cancelling Mic
The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise.
~section~
| Model | ASUS TUF GAMING B550-PLUS WIFI II ATX Motherboard |
| CPU Socket | AMD AM4 |
| Chipset | AMD B550 |
| CPU Support | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory | 4 x DIMM, Max. 128GB DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
| On-Board Graphics support | 1 x DisplayPort 1.2 1 x HDMI 2.1 (4K at 60Hz) |
| Expansion Slot | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 3 x PCIe 3.0 x1 slot PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. |
| Wireless and Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) BT5.2 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Support Raid 0, 1, 10 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio Cover |
| USB | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB (Total 6 ports) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |

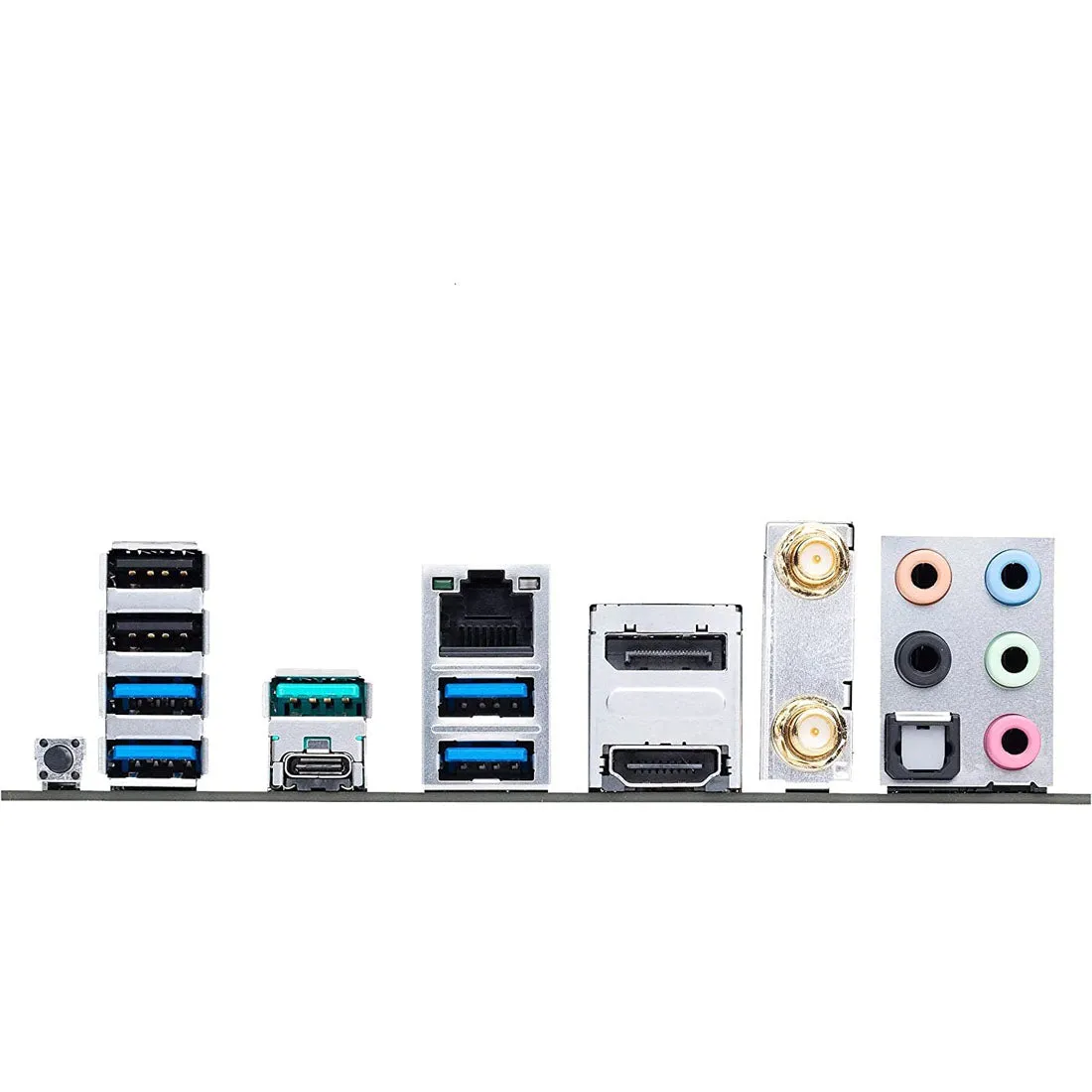

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button |
| I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header |
| Dimensions | 30.5cm x 24.4cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
